| Prod Model: |
DVP |
| Vacuum Structure: |
Double Stages |
| Vacuum Press: |
0.5mbar |
| Working Pressure: |
0.4MPa |
| Cleaness: |
Nas 6 Grade |
| Voltage: |
Optional |
| Folw Rate: |
10-300L/Min |
Product Description

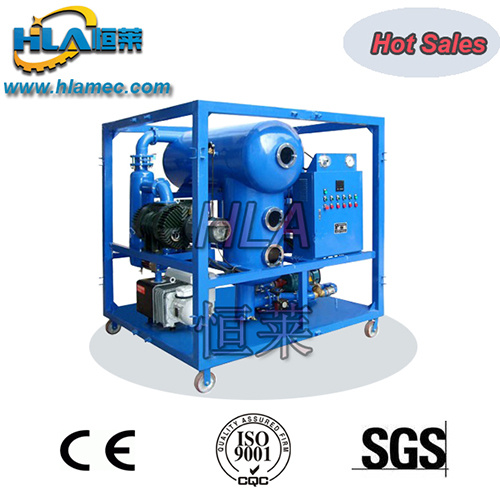

Mobile Vacuum Transformer Oil Purifier
Application: Series DVP double stags high vacuum transformer oil purifier be able to quickly separate the harmful ingredients from transformer insulating oil, such as water, impurities, gas, acetylene, hydrogen, methane and others, the transformer oil after purification by DVP vacuum transformer oil purifier can improve insulation performance, so that it can effectively guarantee the electrical equipment run safely. DVP double stages vacuum transformer oil purifier is particularly suitable for high-grade transformer oil and online purification for more than 110KV substation. Features: 1. Double stages high vacuum dehydration and degasification systems
2. Vacuum drying and vacuum oiling 3. The transformer oil purifier installs 1 micron filtering elements and removes 99% solids.
4. Online and offline oil purification systems for transformers5.Germany vacuum pump and electric systems ensure oil purifier runs safely. Technical Parameters| Model | DVP030 | DVP050 | DVP080 | DVP100 | DVP125 | DVP150 | DVP200 | DVP250 | DVP300 |
| Capacity(L/min) | 30 | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Vacuum level | -0.08~-0.099 Mpa |
| Working pressure | ≤ 0.4 Mpa |
| Ultimate vacuum | ≤ 5 Pa |
| Temperature range | 20-80ºC |
| Filtering precision | ≤1 micron |
| Continuous work | ≥200 hr |
| No failure running | ≥5000 hr |
| Power supply | 380V, 50HZ, 3PH ( or Customized ) |
| Working noise | 65 dB |
| Heating power (kw) | 24 | 30 | 48 | 60 | 72 | 90 | 125 | 136 | 150 |
| Total power (kw) | 27 | 34 | 54 | 68 | 80 | 100 | 135 | 148 | 165 |
| Inlet/outlet(mm) | 32 | 32 | 44 | 44 | 48 | 50 | 55 | 60 | 65 |
| Weight (kg) | 600 | 700 | 800 | 900 | 1100 | 1200 | 1800 | 1950 | 2300 |
Dimension
(mm) | L | 1300 | 1350 | 1500 | 1800 | 1900 | 2000 | 2100 | 2150 | 2300 |
| W | 1000 | 1000 | 1100 | 1150 | 1200 | 1250 | 1300 | 1350 | 1400 |
| H | 1500 | 1500 | 1600 | 2000 | 2100 | 2150 | 2200 | 2250 | 2300 |

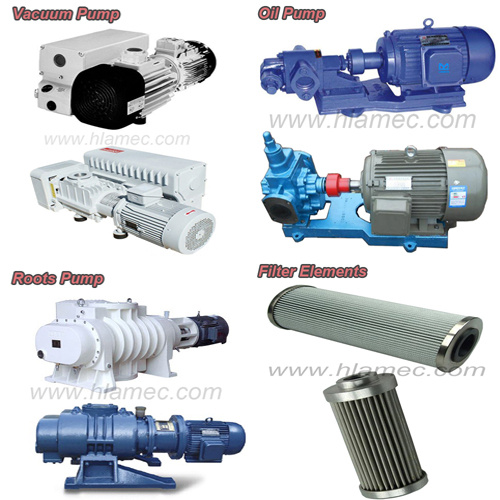

Available Parts for customer option
1.Fully closed-type for protecting oil purifier machine (weather proof, vacuum proof, Waterproof, dustproof etc.)
2.Mobile trailer with enclosed type can move long distance working in field.
3.Choosing different vacuum pump, oil pump and electric parts(such as SCHNEIDER, SIEMENS, LEYBOLD etc.)
4.PLC controller for operation fully-automatically and explosion proof materials
5.On-line Moisture detector, transformer oil dielectric strength tester/BDV tester, flow meter, viscosity tester, acidity tester tec.
