Mobile Digital Video Recorder, Car DVR Security System
Price: |
US $ 120-320/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
T/T,Money Gram,Western Union |
Prod Model: |
S8000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Operation System: |
Linux |
Gui: |
Setup System Parameters with Remote Controller |
Security Management: |
Support User Password, Supervisor Password Managem |
Video Input/Output: |
4-Channel Video Input, 1-Channel Video Output; 1.0 |
OSD: |
Time & Date, Vehicle ID, GPS etc |
Compression: |
H.264. Hi-Silicon High Performance Processor Is Ap |
Video Resolution: |
CIF, HD1, D1, 4D1 Adaptive |
File Format/System: |
Asf/ Fat32 |
Recording Search: |
Search Recording Video Files by Time, Type, Storag |
Functional Alarm: |
Over-Speed Alarm, G-Sensor Alarm, Voltage Alarm, S |
Compression Format: |
H.264 |
Interface: |
BNC\VGA\HDIM |
Brand: |
Vcomsky |
Product Description
Descriptions

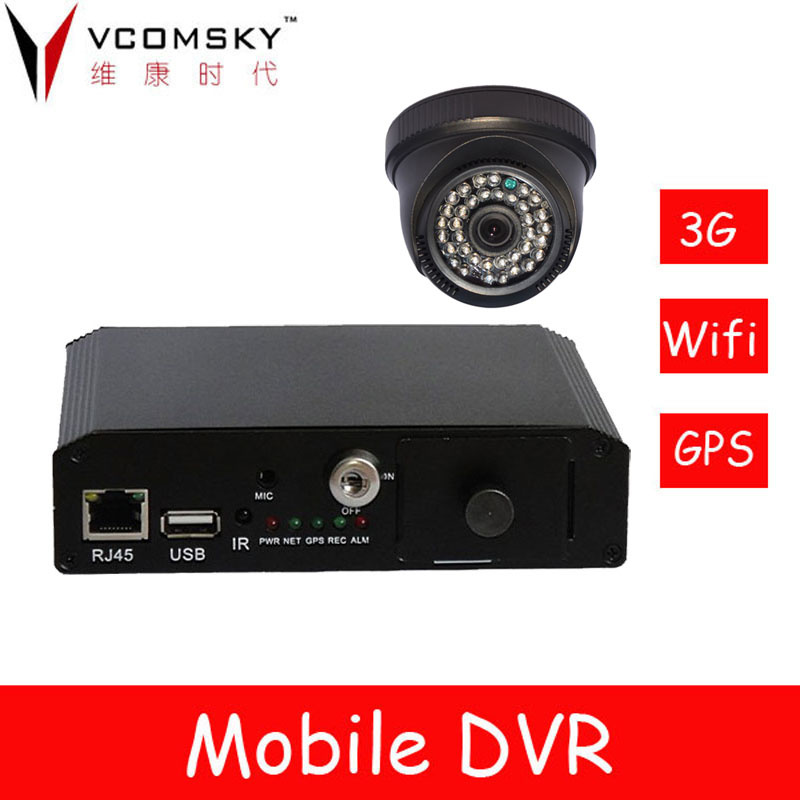

VC-MDRS8000 Series is a high level SD card mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, and applies various advanced technologies in IT field, such as A/V codec, high capacity SD card storage, network streaming media, A/V noise reduction, wide range voltage design.
Key Features
Industrial level design;
Advanced audio/video compression technology;
4-channel video input, 4ch audio input;
ASF standard file format;
Built in G-sensor module;
3G, GPS, Wi-Fi modules for optional;
Local and remote PTZ control;
Data redundant storage technology;
Patent UPS power-off protection design;
Fast startup;
Optional function: Bi-directional voice communication, telephone dialing, disk pre-heating;
Central management software provided for optional;
Support intercom function;
Remote control;
Remote download;
3G WIFI switch automatically;
Support 6ch I/O alarm, over speed alarm, g-sensor alarm, video lose alarm, motion detection alarm;
Support broadcast voice;
Support LED control;
Support max 64G SD card.
Application
Bus, School bus, Logistics vehicle, Taxi, Police car, Special purpose vehicle, Train/metro, Ship/boat
Specifications |
Item |
Description |
|
Operation system |
Linux |
|
GUI |
Setup system parameters with remote controller |
|
Security management |
Support user password, supervisor password management; support encryption transmission |
|
Video |
Video input/output |
4-channel video input, 1-channel video output; 1.0Vp-p, 75Ω |
|
Dual stream |
Support |
|
OSD |
Time & date, vehicle ID, GPS etc |
|
Compression |
H.264. Hi-silicon high performance processor is applied. |
|
Preview function |
Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function |
|
Video frame rate |
PAL: 100 frame/sec, up to 25 frame/sec for single channel
NTSC: 120 frame/sec, up to 30 frame/sec for single channel |
|
Video resolution |
CIF, HD1, D1, 4D1 adaptive |
|
Video quality |
Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest |
|
Video Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 5 levels of bit rate optional
HD1: 600Kbps ~ 2 Mbps, 5 levels of bit rate optional
D1: 800Kbps ~ 3Mbps, 5 levels of bit rate optional
4D1: 800Kbps ~ 1.5Mbps, 5 levels of bit rate optional |
|
Audio |
Audio input/output |
4-channel input; 1-channel output |
|
Compression |
G.726 |
|
Recording |
Storage media |
Support SD card with 64G maximum capacity |
|
File format/system |
ASF/ FAT32 |
|
Recording mode |
Startup recording by default, support auto, timed, alarm & manual recording |
|
Recording search |
Search recording video files by time, type, storage device, etc. |
|
Recording playback |
Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time |
|
Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time |
|
Alarm |
Alarm input |
6-channel I/O alarm input |
|
Alarm recording |
Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min |
|
Alarm output |
1-channel alarm output |
|
Storage space |
Support the setting of remain storage space alarm function |
|
Functional alarm |
Over-speed alarm, g-sensor alarm, voltage alarm, snapshot alarm, motion detection alarm |
|
Communication interface |
RS232, RJ45 10M/100M self-adaption Ethernet interface |
|
Wireless transmission (optional) |
Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional; |
|
GPS (optional) |
Support external GPS module |
|
Data remote transmission |
Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download; |
|
PTZ control |
Support PTZ control function by local remote controller or client software; |
|
Parameter configuration |
Support parameter configuration |
|
G-sensor |
Built-in |
|
System upgrade |
Support SD card / Remote upgrade |
|
Power supply & consumption |
Power supply management |
ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown |
|
Input voltage |
DC:+8V ~ +36V |
|
Output voltage |
+12V@4*0.5A;[email protected] |
|
Power-off protection |
Patent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs |
|
Power consumption |
Less than 10W in normal working state; less than 0.5W in standby mode |
|
Working environment |
Temperature |
Normal:-20°C~ +60°C
Hard disk pre-heating: -25°C~ +60°C |
|
Humidity |
10% to 95% |
|
Dimension |
142(W) x36(H) x123(D) mm. |
|
Weight |
Net weight:550g, gross weight:1000g |
|
