Bus 4CH Quad Video System with 7inch LCD Monitor and 4 Cameras for Sideview, Front View and Rearview
Price: |
US $ 115-299/Piece |
Trade Terms: |
FOB,FCA,EXW |
Min Order: |
2/Piece |
Pay Type: |
T/T,Western Union |
Prod Model: |
VC-MDRS8000 Car DVR |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage: |
8-36V Wide Range Voltage Input |
Shockproof: |
Super Double Universal Shockproof System |
G-Sensor: |
Built in G-Sensor Module |
Wireless: |
Support GPS, 3G, WiFi for Optional |
Storagy: |
Support SD Card and Hard Disk Storage |
Alarm: |
Multiple Sensor Alarm and Alarm Linkage |
PTZ: |
Support Local and Remote PTZ Control |
Video: |
4 Chnnals Video Input, 1 Channal Video Output |
Audio: |
2 Channal Audio Input, 1 Channal Audio Output |
Compression Format: |
H.264 |
Interface: |
Air-Plug |
Product Description

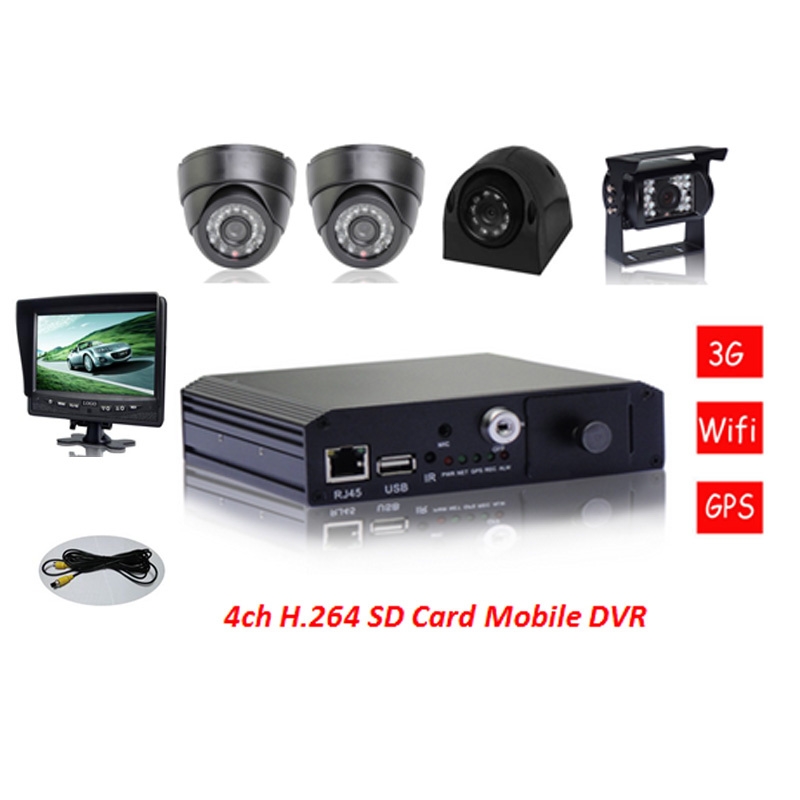

VC-MDRS8000 car camera monitoring system, include:
SD Card 4 ch mobile DVR VC-MDRS8000 + Two indoor IR car camera + One outdoor side view camera + One outdoor rear view camera + One 7inch Car LCD Monitor(waterproof)
Suitable for bus, truck, police car...Good night vision, can view the video on the PC and smartphone. H.264, 4channel, shockproof, I/O alarm to traffic accident, playback, support GPS/3G/WIFI for option, with G-sensor function, RS232...
Functional Feature:- 8-36V wide range voltage input, with overvoltage protection function.
- Super double universal shockproof system
- Built in G-sensor module
- Support GPS,3G, WIFI for optional
- Support SD card storage
- Support advertising screen docking, support mobile surveillance(for optional), support communication with peripheral equipment
- Patent UPS power-off protection technology
- Support trajectory playback
- GPS over speed alarm, acceleration alarm, motion detection alarm
- Support alarm trigger capture
- Phone dialing function, IP call function, disk preheating (for optional)

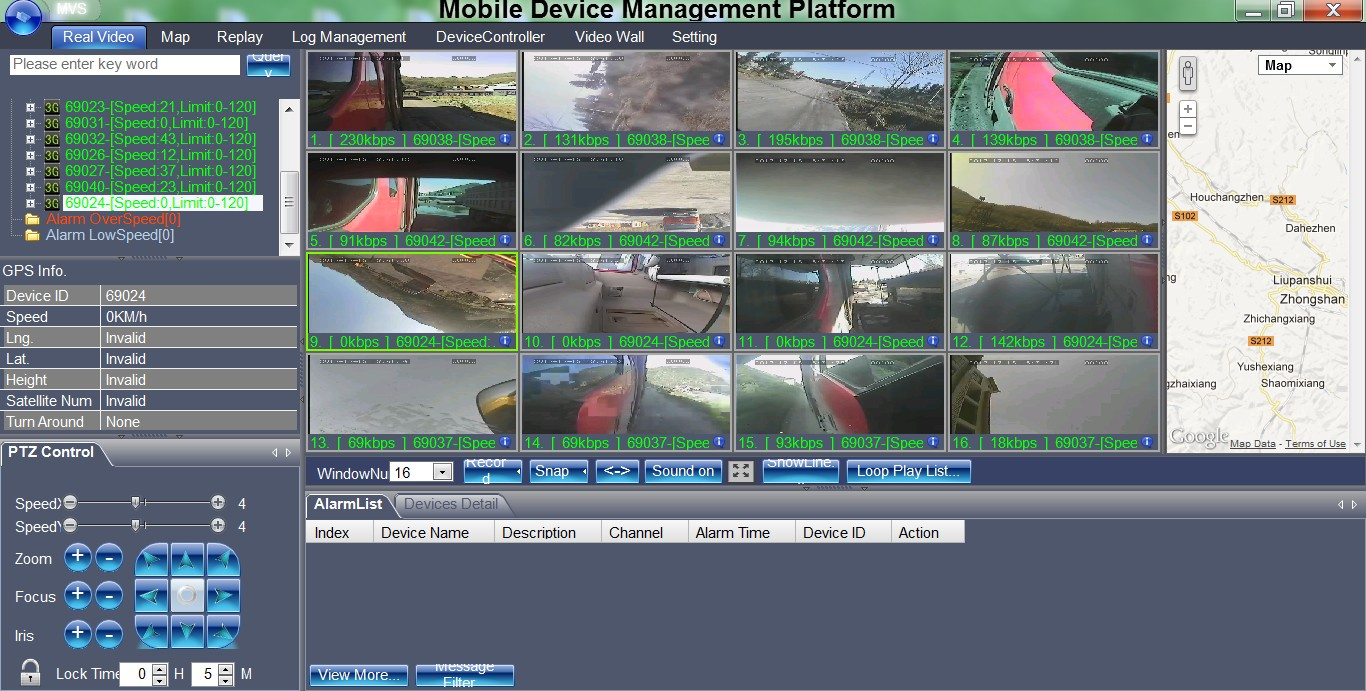

- Mobile monitoring center platform management software (for optional)
- Data redundant storage technology
- Support local and remote PTZ control
- Startup recording by default, support auto timed, alarm & manual recording
- Support to connect speed sensor input, speed audio video synchronous recoding.
- Multiple sensor alarm and alarm linkage
- Support to record multiple status, such as open the door, brake, turn, whistle.
- External dimension: 142(W) x62(H) x123(D) mm 142(W) x36(H) x123(D) mm
Parameter:
Item | Description |
Operation system | Linux |
GUI | Setup system parameters with remote controller |
Security management | Support user password, supervisor password management; support encryption transmission |
Video | Video input/output | 4-channel video input, 1-channel video output; 1.0Vp-p, 75Ω |
Dual stream | Support |
OSD | Time & date, vehicle ID, GPS etc |
Compression | H.264. Hisilicon high performance processor is applied. |
Preview function | Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function |
Video frame rate | PAL: 100 frame/sec, up to 25 frame/sec for single channel NTSC: 120 frame/sec, up to 30 frame/sec for single channel |
Video resolution | CIF, HD1, D1,4D1 adaptive |
Video quality | Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest |
Video Bit Rate | CIF: 256Kbps ~ 1.5 Mbps, 8 levels of bit rate optional HD1: 600Kbps ~ 2 Mbps, 8 levels of bit rate optional D1: 800Kbps ~ 3Mbps, 8 levels of bit rate optional 4D1: 800Kbps ~ 4Mbps, 8 levels of bit rate optional |
Audio | Audio input/output | 1-channel input; 1-channel output |
Compression | G.726 |
Recording | Storage media | H8000 support Hard Disk+SD card, S8000 support only SD card |
File format/system | ASF/ FAT32 |
Recording mode | Startup recording by default, support auto,timed, alarm & manual recording |
Recording search | Search recording video files by time, type, storage device, etc. |
Recording playback | Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time |
Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time |
Alarm | Alarm input | 5-channel I/O alarm input |
Alarm recording | Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min |
Alarm output | 2-channel alarm output |
Storage space | Support the setting of remain storage space alarm function |
Functional alarm | Overspeed alarm, gsensor alarm, voltage alarm,snapshot alarm, motion detection alarm |
Communication interface | RS232, RJ45 10M/100M self-adaption Ethernet interface |
Wireless transmission (optional) | Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional; |
GPS (optional) | Support external GPS module |
Data remote transmission | Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download; |
PTZ control | Support PTZ control function by local remote controller or client software; |
Parameter configuration | Support parameter configuration |
G-sensor | Built-in |
System upgrade | Support hard disk and SD card / Remote upgrade |
Power supply & consumption | Power supply management | ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown |
Input voltage | DC:+8V ~ +36V |
Output voltage | +12V@4*0.5A;[email protected] |
Power-off protection | Patent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs |
Power consumption | Less than 10W in normal working state; less than 0.5W in standby mode |
Working environment | Temperature | Normal: 0 ~ +60 degree Hard disk pre-heating: -25 ~ +60 degree |
Humidity | 10% to 95% |
Dimension | H8000:142(W) x62(H) x123(D) mm, S8000:142(W) x36(H) x123(D) mm |
Weight | H8000:net weight:1000g , S8000:net weight:550g |
