| Prod Model: |
MKP MKPH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

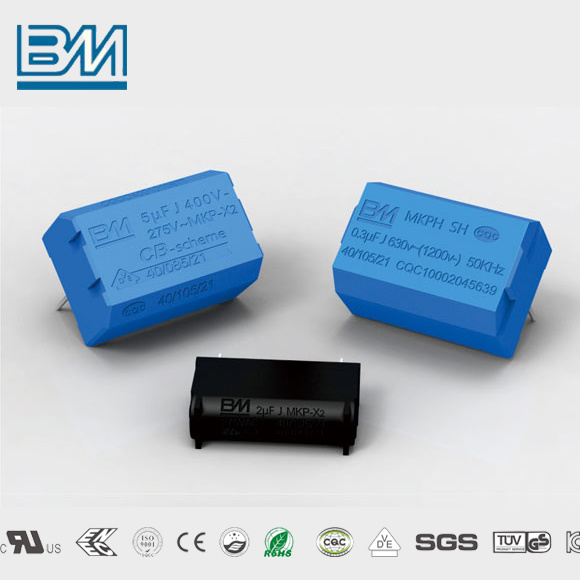

Product Description
The small type products are specially designed and manufactured for the marketing demand of low power, ultra-thin induction cooker. And they are of high cost performance. Specifically used in interference, filter and resonance circuit of tea cooker and ultra-thin induction cooker.
Reference standard 275VAC/400VDCGB/T14472 ,IEC60384-14 ,UL1283
1200VDC GB/T3984,1-2004, GB/T3984, 2-2004
Climatic category 40/105/21
Rated voltage 275VAC(C1); 400VDC(C2); 1200VDC(C3)
Capacitance range μF~15μF
Capacitance tolerance±5%(J),±10%(K)
Voltage proof between terminals1.5*UR(VDC)/10s
between terminals and case2*UR+1000(VAC)/ 60s(≥2000VAC)
Insulation resistance (20 degree) between terminals≥15000S (100Vdc,60s)
between terminals and case≥30000MΩ (100Vdc,60s)
Tangent of loss angle(20 degree)≤0.001 (1KHz )

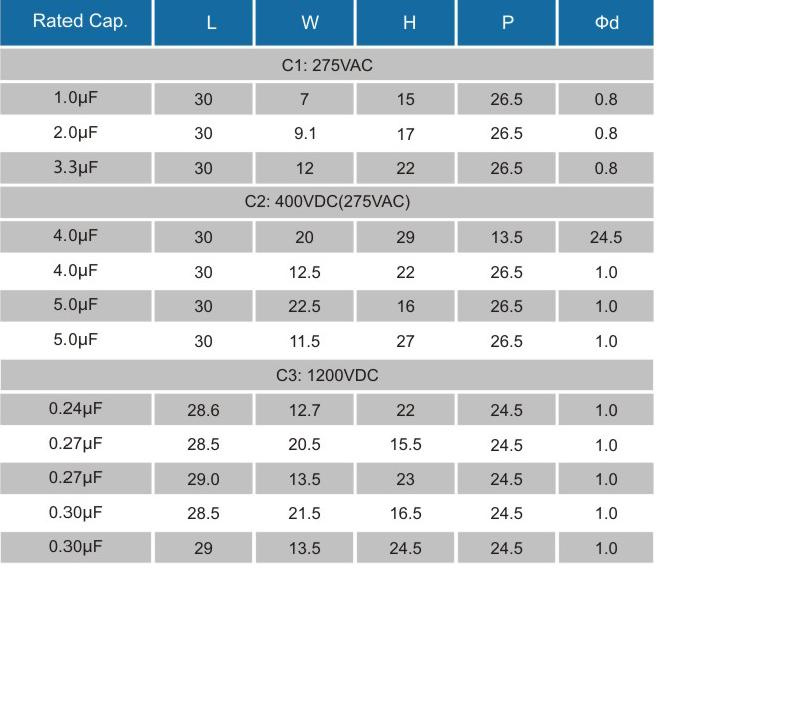

Dimension
Established in 2000, Guangdong Fengming Electronic Tech. Co., Ltd. Covers an area of 25, 000 square meters, has 30, 000 square meters of High-standard factory and the capacitor daily productive ability is about 2 million.
We have three research centers and five product divisions for research, design, product and sales of metalized film capacitors.
We mainly produce metallized film capacitors, including MKP\MKPH\CBB61\CBB60\CBB65\CBB80\X2\CBB20\CBB21\CBB81.
Our product is widely used in all kinds of electronic appliance \ induction cooker\lighting\air conditioner\refrigerator\washing machine and other home appliance and electronic power systems.
