| Prod Model: |
MKP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
DC/AC Inverters |
Product Description

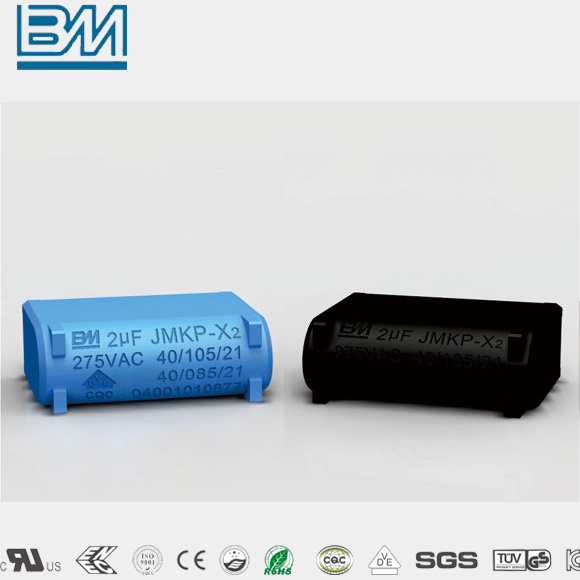

The products are made of temperature-resistant metalized polypropylene film, thickened metalized electrode, heavy current full inspection testing, full automatic production.
They have characteristics of good uniformity, high stability and so on. Specifically used in smooth filter circuit of induction cooker and other induction heating equipment. Reference standardGB/T14472 ,IEC384-14 ,UL1283
Climatic category40/105/21
Rated voltage150VAC,400VDC (275VAC)
Capacitance range3μF~15μF
Capacitance tolerance±5%(J),±10%(K)
Voltage proof between terminals1.8*UR(VDC)/60s
between terminals and case2*UR+1000(VAC)/ 60s(≥2000VAC)
Insulation resistance (20 degree) between terminals≥5000S (100Vdc,60s)
between terminals and case≥30000MΩ (100Vdc,60s)
Tangent of loss angle(20 degree)≤0.001 (1KHz )

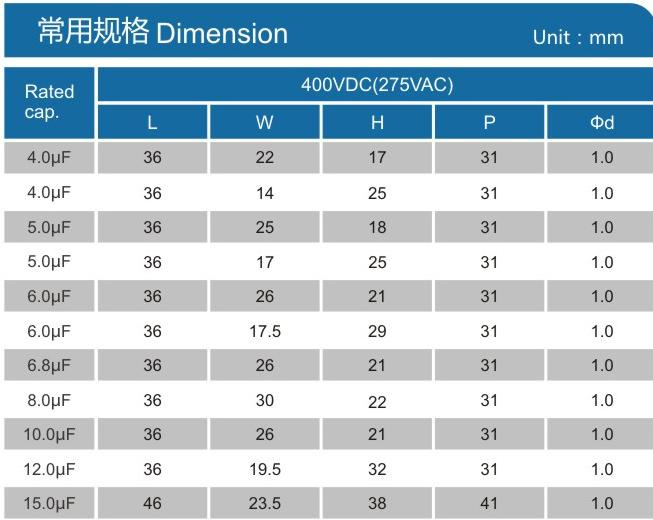

Dimension
Pulse rise time(dv/dt)30V/μs Max
Established in 2000, Guangdong Fengming Electronic Tech. Co., Ltd. Covers an area of 25, 000 square meters, has 30, 000 square meters of High-standard factory and the capacitor daily productive ability is about 2 million.
We have three research centers and five product divisions for research, design, product and sales of metalized film capacitors.
We mainly produce metallized film capacitors, including MKP\MKPH\CBB61\CBB60\CBB65\CBB80\X2\CBB20\CBB21\CBB81.
Our product is widely used in all kinds of electronic appliance \ induction cooker\lighting\air conditioner\refrigerator\washing machine and other home appliance and electronic power systems.
