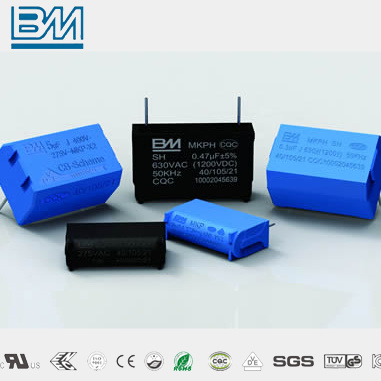

MKP Induction Cooker Capacitor with Bm Brand
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MKP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Polypropylene Capacitor |
| Application: |
High Voltage |
| Capacitance: |
1-50uf |
| Package Type: |
Carton |
Product Description
The products are made of temperature-resistant metalized polypropylene film, both side thickened metalized electrode, non-inductive construction, DV/DT full inspection testing, full automatic production. They have characteristics of good uniformity, high stability and so on. Specifically used in high frequency vibration return circuit of induction cooker and other induction heating equipment. Reference standardGB/T3984.1-2004,GB/T3984.2-2004
Climatic category40/105/21
Rated voltage1000VDC,1200VDC, 1600VDC,2000VDC
Capacitance range0.01μF~0.9μF
Capacitance tolerance±5%(J),±10%(K)
Voltage proof between terminals2*UR(VDC)/ 10s
between terminals and case2*UR+1000(VAC)/ 60s(≥2000VAC)
Insulation resistance (20 degree) between terminals≥30000MΩ (100Vdc,60s
between terminals and case≥30000MΩ (100Vdc,60s)
Tangent of loss angle(20 degree)≤0.007 (10KHz )
Pulse rise time(dv/dt)500V/μs Max
Established in 2000, Guangdong Fengming Electronic Tech. Co., Ltd. Covers an area of 25, 000 square meters, has 30, 000 square meters of High-standard factory and the capacitor daily productive ability is about 2 million.
We have three research centers and five product divisions for research, design, product and sales of metalized film capacitors.
We mainly produce metallized film capacitors, including MKP\MKPH\CBB61\CBB60\CBB65\CBB80\X2\CBB20\CBB21\CBB81.
Our product is widely used in all kinds of electronic appliance \ induction cooker\lighting\air conditioner\refrigerator\washing machine and other home appliance and electronic power systems.
