| Prod Model: |
CMV-V***TB/HR1-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Room |
| Indoor Machine Noise: |
24-35dB |
| Certification: |
CE |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Type: |
Ceiling Concealed Duct Type |
| Capacity: |
24000BTU - 60000BTU |
Product Description

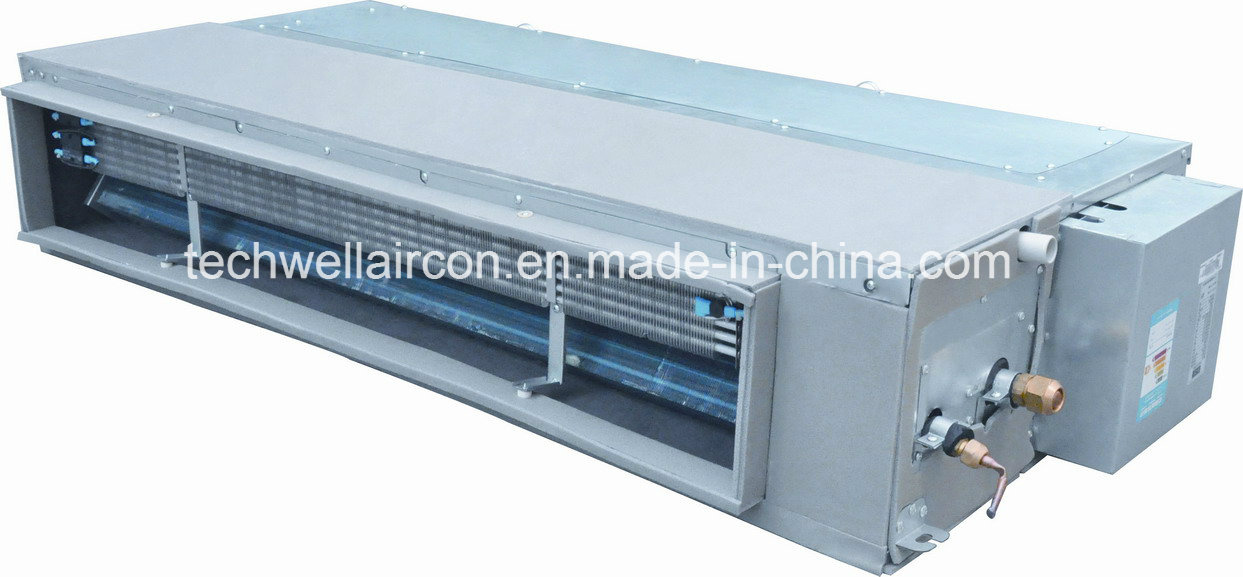

VRF air conditioners medium ESP duct type evaporating units
-Power supply: 220~240V/1pH/50Hz, 208~230V/1pH/60Hz
-Cooling capacity: 7.1kw to 15kw
-Standard controller: Wired controller
-ESP: 70PA; 30PA can be customized
-Low noise design
-Two way air return: Bottom or rear
| Medium Static Pressure Ducted Unit |
| Model name | Power type | Capacity | Motor input | Air flow | Sound Level | ESP | Dimension (W×H×D) | Weight | Connecting pipe | Standard controller |
| Cooling | Heating | Packing | Body | packing | Panel | Net | Gross | Gas | Liquid | Drain |
| kW | kBtu/h | kW | kBtu/h | kW | m3/h | CFM | dB(A) | Pa | mm | mm | mm | mm | kg | kg | mm | mm | mm |
| CMV-V71TB/HR1-B | 50Hz | 7.1 | 24.2 | 8.0 | 27.2 | 0.30 | 1220 | 710 | 36~41 | 70 | 1245×320×720 | 1209×260×680 | / | / | 33 | 37 | Ø15.9 | Ø9.53 | Ø25 | Wired controller |
| CMV-V71TB/HNR1-B | 60Hz |
| CMV-V80TB/HR1-B | 50Hz | 8.0 | 27.2 | 9.0 | 30.7 | 33 | 37 |
| CMV-V80TB/HNR1-B | 60Hz |
| CMV-V90TB/HR1-B | 50Hz | 9.0 | 30.7 | 10.0 | 34.1 | 0.34 | 1850 | 1080 | 38~43 | 1480×320×720 | 1445×260×680 | 46 | 50 | Ø19.1 |
| CMV-V90TB/HNR1-B | 60Hz |
| CMV-V100TB/HR1-B | 50Hz | 10.0 | 34.1 | 11.0 | 37.5 | 2000 | 1170 | 40~44 | 46 | 50 |
| CMV-V100TB/HNR1-B | 60Hz |
| CMV-V120TB/HR1-B | 50Hz | 12.0 | 40.9 | 13.0 | 44.3 | 46 | 50 |
| CMV-V120TB/HNR1-B | 60Hz |
| CMV-V150TB/HR1-B | 50Hz | 15.0 | 51.1 | 17.0 | 58 | 46 | 50 |
| CMV-V150TB/HNR1-B | 60Hz |
