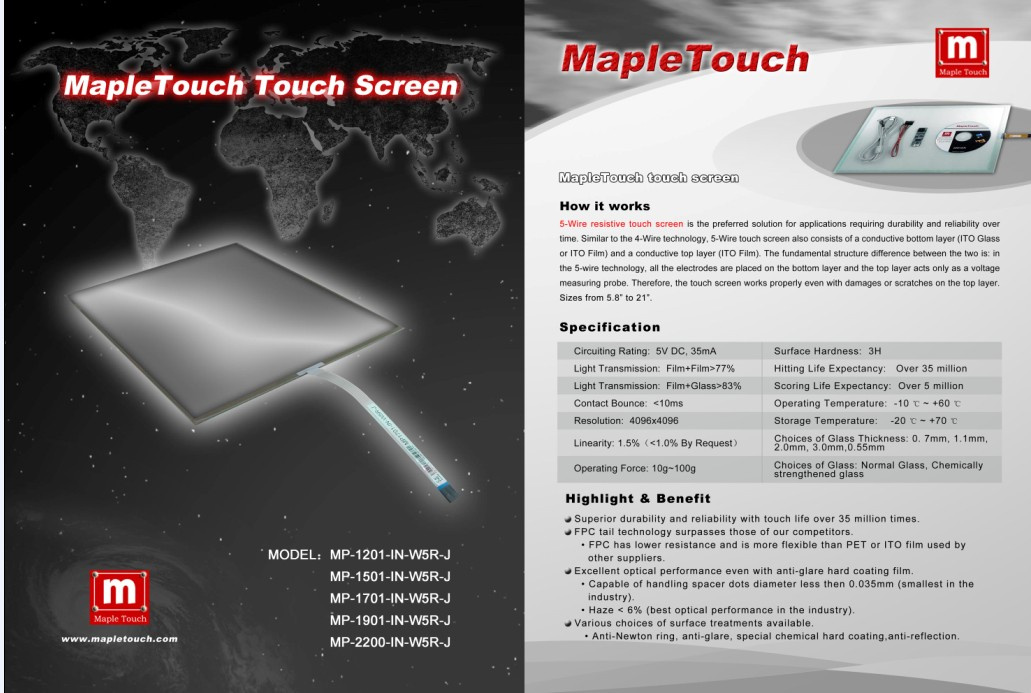

Mapletouch Resistive 5wire Touch Screen with Touch Controller

Name: Mapletouch Resistive 5wire Touch Screen with Touch Controller
Brand: ec-portal.com
SKU: 721001785
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	US $ 1-100/Piece
Trade Terms:	others
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	mp-j
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	5"--22"
Use:	for Touch Monitor, Computer, Kiosk etc
Touch Screen:	4wire Resistive/5wire Resistive
Touch Controller:	Optional RS232 or USB
High:	Quality
Hitting Life:	Over 35 Million

Product Description

Excellent optical performance even with anti-glare hard coating film.
@ Capable of handling spacer dots diameter less then 0.035mm (smallest in the industry).
@ Haze < 6% (best optical performance in the industry). Various choices of surface treatments available.
@ Anti-Newton ring, anti-glare, special chemical hard coating, anti-reflection.

Standard Model

Model No.	Spec.	External Dimension	View Area Dimension	Active Area Dimension
MP-0288-IN-W4R	2.8"In	70.000x55.000 mm / 2.76"x2.17"	59.600x46.100 mm /2.35"x1.81"	58.000x44.000 mm /2.28"x1.73"
MP-0387-IN-W4R		89.400x69.400 mm / 3.52"x2.73"	80.900x60.980 mm / 3.19"x2.40"	79.900x59.980 mm / 3.15"x2.36"
MP-0423-IN-W4R		94.800x69.600 mm / 3.73"x2.74"	88.800x61.600 mm / 3.50"x2.43"	86.800x59.600 mm / 3.42"x2.35"
MP-0477-IN-W4R		110.74x089.41 mm / 4.36"x3.52"	101.09x76.960 mm / 3.98"x3.03"	98.09x73.9600 mm / 3.86"x2.91"
MP-0585-IN-W4R	5.8"In	138.00x108.00 mm / 5.43"x4.25"	118.00x89.000 mm / 4.65"x3.50"	116.00x87.000 mm / 4.57"x3.43"
MP-0585-IN-W4R-B		138.00x108.00 mm / 5.43"x4.25"	118.00x89.000 mm / 4.65"x3.50"	116.00x87.000 mm / 4.57"x3.43"
MP-0585-IN-W4R-C		141.00x104.70 mm / 5.56"x4.12"	122.00x93.850 mm / 4.80"x3.69"	115.17x86.370 mm / 4.53"x3.40"
MP-0657-IN-W4R		156.00x120.00 mm / 6.14"x4.72"	136.00x100.00 mm / 5.35"x3.94"	134.000x98.00 mm / 5.28"x3.86"
MP-0747-IN-W4R		171.90x127.40 mm / 6.77"x5.01"	148.90x112.40 mm / 5.86"x4.43"	145.90x109.40 mm / 5.74"x4.31"
MP-0846-IN-W4R	8.4"In	208.00x152.00 mm / 8.19"x5.98"	176.00x133.00 mm / 6.93"x5.24"	171.00x128.00 mm / 6.73"x5.04"
MP-0846-IN-W4R-B		188.98x141.73 mm / 7.44"x5.58"	173.98x131.32 mm / 6.85"x5.17"	172.21x129.54 mm / 6.78"x5.10"
MP-0945-IN-W4R		234.00x174.00 mm / 9.21"x6.85"	211.00x158.00 mm / 8.31"x6.22"	196.00x148.00 mm / 7.72"x5.83"
MP-1044-IN-W4R		237.00x180.00 mm / 9.33"x7.09"	216.20x163.40 mm / 8.51"x6.43"	212.00x159.40 mm / 8.35"x6.28"
MP-1215-IN-W4R		271.00x205.00 mm /10.67"x8.07"	253.00x191.00 mm / 9.96"x7.52"	248.00x186.00 mm / 9.76"x7.32"
MP-1503-IN-W4R		330.00x255.00 mm /13.00"x10.04"	310.00x235.00 mm / 12.20"x9.25"	303.00x227.00 mm / 11.93"x8.94"
MP-1503-IN-W4R-B		320.00x243.00 mm / 12.60"x9.57"	300.00x228.00 mm / 11.81"x8.98"	285.00x216.00 mm / 11.22"x8.50"
MP-1503-EX-W4R-B		311.00x254.00 mm /12.24"x10.00"	293.00x233.00 mm / 11.54"x9.17"	284.00x224.00 mm / 11.18"x8.82"
MP-1701-IN-W4R-C		362.00x278.00 mm /14.25"x10.94"	340.00x260.00 mm / 13.39"x10.24"	320.00x238.00 mm / 12.60"x9.37"
MP-1701-IN-W4R-F		366.00x294.50 mm /14.40"x11.60"	342.00x274.50 mm / 13.46"x10.81"	334.00x266.50 mm / 13.15"x10.49"
MP-1701-IN-W4R-G		358.50x296.50 mm /14.11"x11.68"	341.90x274.40 mm / 13.46"x10.80"	337.92x270.34 mm / 13.30"x10.64"
MP-1701-EX-W4R-C		360.50x290.00 mm /14.19"x11.41"	343.00x268.00 mm / 13.50"x10.55"	332.00x257.00 mm / 13.07"x10.12"
MP-1818-IN-W4R		388.00x313.00 mm /15.28"x12.32"	363.00x291.00 mm / 14.29"x11.46"	357.00x285.00 mm / 10.06"x11.22"
MP-1908-IN-W4R		395.00x300.00 mm /15.56"x11.81"	375.00x284.60 mm / 14.76"x11.20"	360.00x269.60 mm / 14.17"x10.61"
MP-2106-IN-W4R		438.00x331.00 mm /17.24"x13.03"	416.60x315.00 mm / 16.40"x12.40"	402.60x301.60 mm / 15.85"x11.87"

Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
