| Prod Model: |
HCE-402U |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

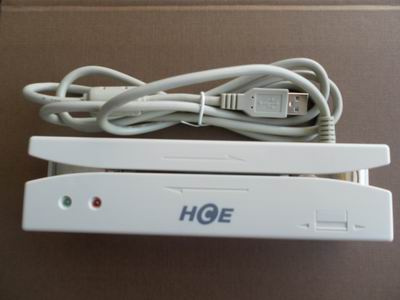

The HCE-400 series magcard/barcode reader is desgined for trades such as banks, taxs, equity markets, commodity inspection, Posts and Telecommunications and so on.
Functions:
* Bi-directional card reading.
* Power from the host computer, not required external power supply.
* LED instruction and buzzer tweeting is used for identify the success or failure of the card reader.
* Comply with the standard ANSI/ISO.
* Automatically read and debate the following sundry barcode: Code 39, Code 93, UPC/EAN, Codebar, Interleaved 2 of 5, Code 128, Full ASC Code39(Extended Code 39).
* Kyboard emulation interface: Comp: Compatible with IBM PC/XT/AT and compatible machine.
* RS-232 serial output, Equipped with adapter cables to take power directly from the keyboard, not required external power supply.
Technical Criteria:
* Magcard criteria: ISO 7811-7815
* Decoding Mode: F2F (FM)
* Card Reading Rate: 10~120cm/s
* Magnetic Life: 600, 000 time
* Voltage: DC 5V 5%
* Current: 35mA(barcode reader 60mA)
* Working Environment: Temperature: 0~45
* Humidity: 10~90%RH
Shen zhen shen ka shuo Technology Co., Ltd, established in 2010, is a High-Tech Enterprise honored by government.
The product scope including Bank Magnetic Card Reader, Barcode Reader, Smart Card Reader, Till now our products have been widely used in many fields, such as Finance, Telecom, Security, Tax Services, Car-Parking, Hospitals, Retails, and Hotels and so on. Moreover, our products are also in accordance with international standards.
