| Prod Model: |
HCE-706 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

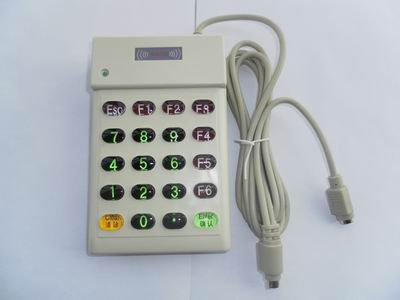

706 ID card reader, the unique ID card reader in the present market with insider dial switch, is one of untouching ID card readers which is developed by our company. It can make 8, 10, 13, 15, 18 dial No, .
Excellent quality. This reader reads and transmits the info. On the ID card, designs for the Bank, tax, securities, inspection and post industry. According to different use, it can translate the information in the ID card in to digital data which can be accept by the main machine, outputing RS-232 terminal or simulation keyboard.
Feature:
1, The power can be supplied by the computer, no need the outside power.
2, The shining pipe and the buzzer can tell the reading succed or failed.
3, The simulation keyboard output can connect with IBM PC/XT/AT or compatible machine, This simulation keyboard installs between the keyboard and the computer, like a keyboard function, but it won't impact the keyboard operation.
4, RS-232 's power can come from the keyboard terminal by a transmit wire, no need outside power, convenience.
5, The appearance is very beautiful.
The product technique and index sign
1, ID card standard: 125 KHz EM4100 or compatible 64 Bitsachester code.
2, Reading distance: ≥ 5 CMs
3, Power: 5 V ± 5% of DC
4, Power current: ≤ 65 mAs
5, Working environment temperature: 0 ° C~45 ° C, humidity 10~90% RH
6, Size: 220mm*150mm*45mm
7, Weight: 0.7kg
