| Prod Model: |
MC-2008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Oscillation Mode: |
Pll Synthesized |
| Style: |
Handheld Microphone |
| Application: |
Amplify |
| Sound Channel: |
Mono |
| Signal Transmission: |
Wireless |
| Wireless Technology: |
UHF |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Output Impedance: |
50-1000Ω |
| Sound Field Force: |
Pressure Type |
| Connector(',s): |
XLR Mini |
Product Description
Product Description
UHF & PLL wireless microphone
Our wireless microphone are very popular in high quality. We specialized in wireless microphone for almost 10 years. Welcome you to test our wireless microphone.

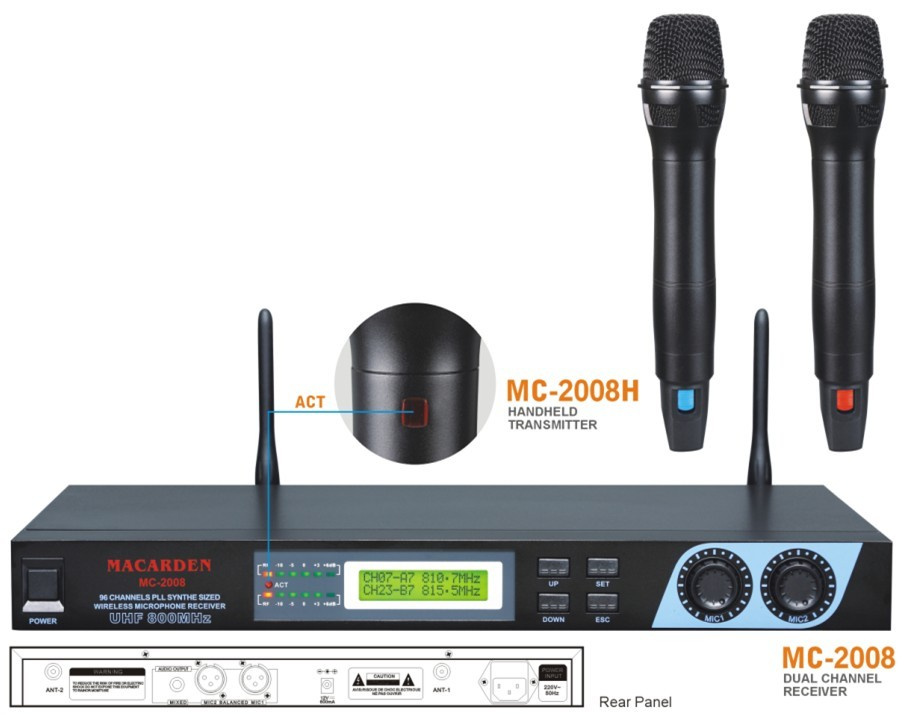

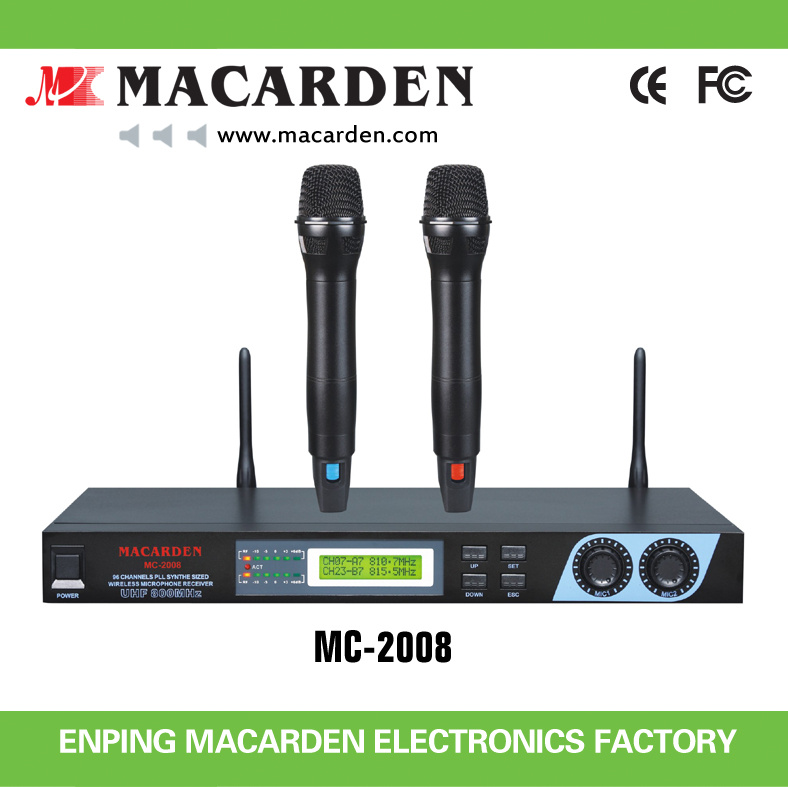

MC-2008
PLL & UHF DUAL CHANNEL WIRELESS MICROPHONE
KEY FEATURES
1. ACT(IR)function
2. Adopt the PLL Synthesized control technic, preset 200 non-interfered channels.
3. Splendid LCD display, shows the RF level, AF level, channel and frequency
4. Using high gain antenna, the space availability is more than 100 meters at the clearing.
5. EIA standard 1U dual channel rack-mountable receiver with metal chassis.
TECHNIQUE SPECIFICATIONS
MC-2008 RECEIVER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Frequency Stability: ±0.005%
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Audio Output Level: 3.5dBv(1.5V)@1KHz
Power Supply:Built-in 100/240V AC Switching Power Supply
Working Range: Up to 100m
Dimensions: 42X21X4.3cm
MC-2008H HANDHELD TRANSMITTER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:dynamic microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions: 26.5X5cm
MC-2008L BODYPACK TRANSMITTER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:condenser microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions:11X6.7cm
Enping Macarden Electronics Factory. is located in Enping, Guangdong province, the "microphone manufacturing base in China". Our company, is a professional manufacturer specialized in the development, manufacture and corresponding sells of various UHF wireless microphone series and Conference System etc. We have a dynamic team, which is characterized by devotion, teamwork, integrity, and vision for the future. Combined with our advanced manufacturing and processing equipment, and refined craftsmanship, our products can be easily distinguished from those of our competitors. Up holding the principle of "Business by Quality, Making Development by Innovation, Customer First", we have been striven to meet the needs of customers with high performance, high quality and innovative designs of UHF wireless microphone series products.
Currently, our main markets are Southeast Asia, Europe, North and South America, and it is our aim to export our products worldwide so that more people may enjoy them. Our customers prefer us because of our trustworthiness, innovative products and professional after-sales service.
We will continue to progress through learning from advanced technology in the world, and work together with friends from home and abroad to provide high quality products and perfect after-sales service to satisfy the needs of customers.
