Guangzhou Zsound Proaudio Technology Co., Ltd. >> Line Array Audio Equipment System

Line Array Audio Equipment System

Line Array Audio Equipment System
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: LA108
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: Line Array Speaker
Size: 226*563*458 Mm
Color: Black
Drivers Materail: Neodymium
Wood Material: Brich Plywood
Woofer: 8inch
Applications: Touring Performance, Stadium, Theatre
Quality: High
MOQ: 1 System
Certificate: CE, RoHS, SGS
Certification: CE
Application: Performance
Noise: 97dB

Product Description

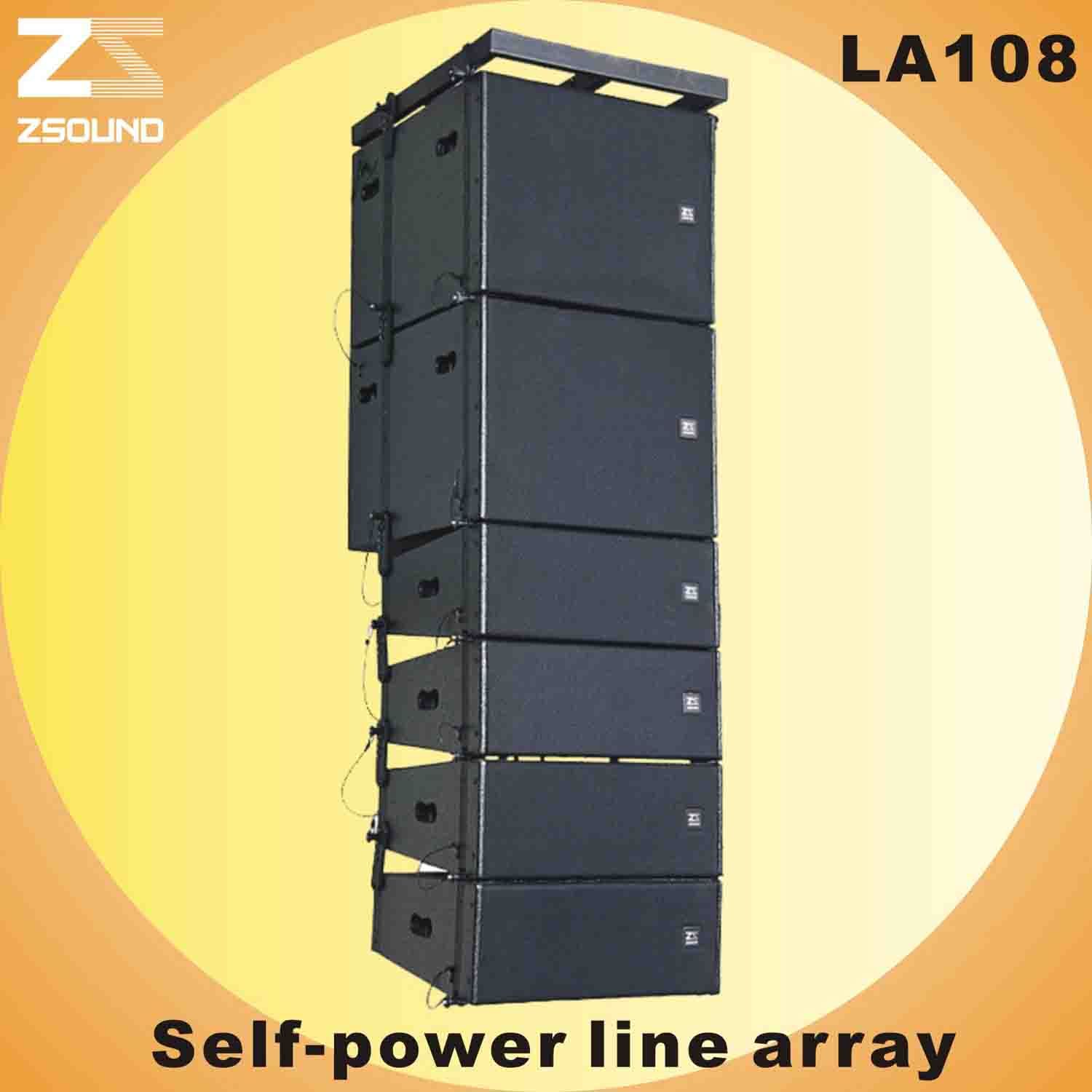

ZSOUND PRO audio LA108, 8" Compact active Line Array Loudspeaker
1. Product Info
1, Compact self-power line array loudspeaker
2, Smooth frequency and phase response
3, Extremly high SPL and Volume ratio PRO audio

Mainly designed for live performance, stadium, outdoor use, fixed installation.
LA108, 8" Self-power line array loudspeaker
LA108 line array is a self-power compact system, which provides 70Hz-18kHz frequency response, with flat frequency and phase response. One 44mm compression driver matches one 8" low-frequency driver to generate ultrahigh headroom, effectively decrease the weight of the enclosure, and obviously improve the ratio of SPL and Volume.

Applications:
FOH for MID sound reinforcement system
Touring performance
Stadium, Theater

Features:
Small powered line array system
Ultrahigh headroom
High SPL-to-Volume ratio

2. Technical specification & physical data
3. Factory photo

4. Project Photo
1) Voice China Porject
Voice China use Zsound equipment list:
Applying ZSound 20PCS LA212 line array speakers as main speakers. 8PCS LA110 and 2 PCS LA110S line array speakers as front fill. Supporting with 12PCS SS2 subwoofer speakers; 10PCS M15 stage monitors and M44 processors; MA1300Q and MS1500 amplifier.
TECHNICAL SPECIFICATION
Frequency Response:  80Hz-18KHz(±3dB) 70Hz-20KHz(-10dB)
Nominal Coverage:  100°(H) 10°(V)
Sensitivity(@1w/1m): 97dB
Power Rating (AES):  250W
Nominal impedance: 16Ohm
Maximium SPL:          121dB(continuous)127(peak)
Drivers:           LF  1*8" woofer  HF  1*1.75" compression driver

PHYSICAL DATA
Dimension(H*W*D): 226*563*458mm
Weight: 20kg
Connectors:  2*NL4MP Neutrik Speakon connectors
Speaker cables:  2+2-
Materials:  18mm 24mm and 30mm brich multi-plywood
FINISH: Black water paint
GRILLE: Black epoxy mesh grille with acoustically reticulated foam
RIGGING  0,1 ,2,3,4,5,7.5 ,10degree adjustable
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.

Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.

During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.

What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance

In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.

After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.

Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
