| Prod Model: |
VC12 |
| Frequency Response: |
50Hz~16kHz(+-3dB)40Hz~18kHz(-10dB) |
| Color: |
Black |
| Nminal Coverage: |
90°(H)7.5°(V) Adjustable |
| Design For Hang: |
Presettable Aggles |
| Power Rating: |
Hf/Mf/Lf/:160W/350W/900W |
| Nominal Impedance: |
Hf/Mf/Lf/:16/16/16ohm |
| Maximum Spl: |
Hf:132/138dB Mf:130dB/136 Lf:127/133dB |
| Drivers: |
Lf2*12''(75mm Voice Coil) Woofer |
| Dimensions: |
375*1030*550mm |
| Net Weight: |
58kg |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
RoHS |
Product Description
line array power audio system

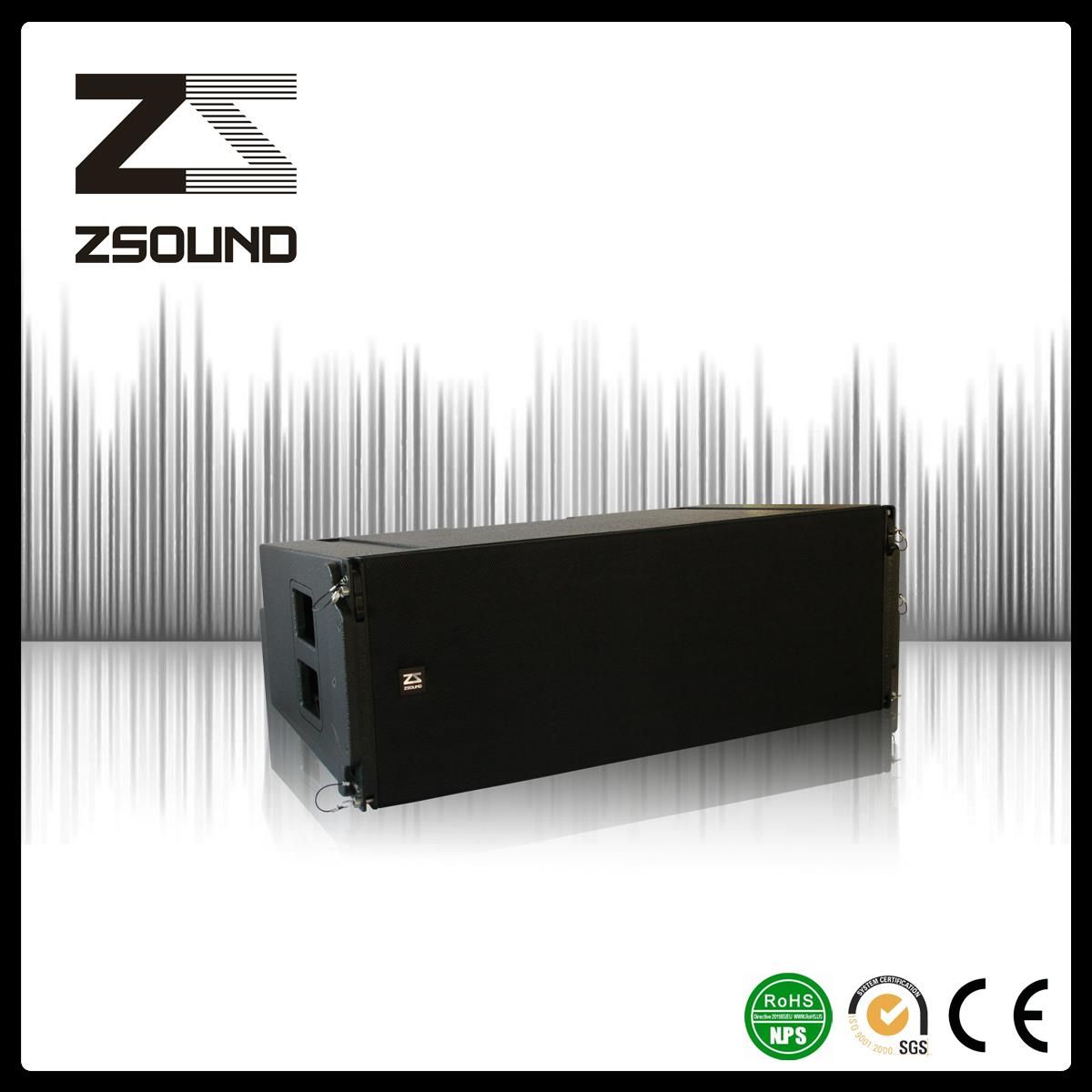

VC12 line array is a large-scale 3-way, tri-amped system, which provides frequency ranges from 50Hz to 16KHz. The system consists of 2X65 mm(voice coil)neodymium compression drivers, one 10″ neodymium MF driver and 2X12″ Ferrite with rubber edge woofer to achieve a great dynamic headroom.
The Mid and Low frequency adopts a couple of 12″cone LF driver. Each unit's power handling is 900W and two units connect in series. One 10″ MF driver with high sensitivity is mounted at the rear of the HF driver to make up a coaxial configuration. A MF phase plug is mounted on the surface of the MF driver, which has excellently improved the directivity and increased sensitivity. The HF section utilizes 2x65mm(voice coil) neodymium complex film drivers coupled with a 90 °exponential constant horn via plane-wave transducer to make an coherent wave front.
VC12 is a trapezoidal speaker with the seamless gap between each cabinet. The adjustable angle of the cabinet is 0-7.5°, 1° per step, the rigging hardwares are made of high strength steel. It is safe enough to hang 16 enclosures together, as the safety factor will reach up to 7:1. The enclosure is constructed by multi-plywood, with panel in size 18mm. It is finished by black textured water paint with high resistance. Two recessed handle cups are mounted on both sides of the enclosure for easy lifting and carrying. The rear panel connector plate carries 2 WP7 waterproof connectors for loop in and loop out connections. Besides, the speaker is covered with Black epoxy mesh grill with acoustically reticulated cloth to protect the drivers.
Applications:
Touring performance
Stadium
Theatre
Feature:
Large-scale,thri-amp,three-way line array system
MF&HF parts is coaxial structure to optimise acoustic image
Neodymium HF&MF driver and low frequency elasticity
Presettable angles
| TECHNICAL SPECIFICATION |
| Frequency Response: | 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
| Nominal Coverage: | 90°(H)7.5°(V) |
| Sensitivity (@1w/1m): | HF:110dB SPL MF:105 dB SPL LF:98 dB SPL |
| Power Rating (AES): | HF/MF/LF:160W/350W/900W |
| Nominal Impedance: | HF/MF/LF:16/16/16Ohm |
| Maximum SPL: | HF132/138 dB MF:130/136 LF;12/133 dB |
| Drivers: | LF 2*12"(75mm Voice coil) woofer; MF 1*10"(65mm voice coil)neodymium mid-range; LF 2*65mm neodymium compression driver |
| |
| PHYSICAL DATA |
| Dimension (H*W*D): | 375*1030*550mm |
| Weights: | 58kg |
| Connectors: | 2*WP7 connectors |
| Speaker Cables: | 1-2+LF 3-4+MF 5-6+HF |
| Materials: | 18mm multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0,1 ,2,3,4,5,7.5 degree adjustable |
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock.
10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accpeted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
Our Advantages:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.

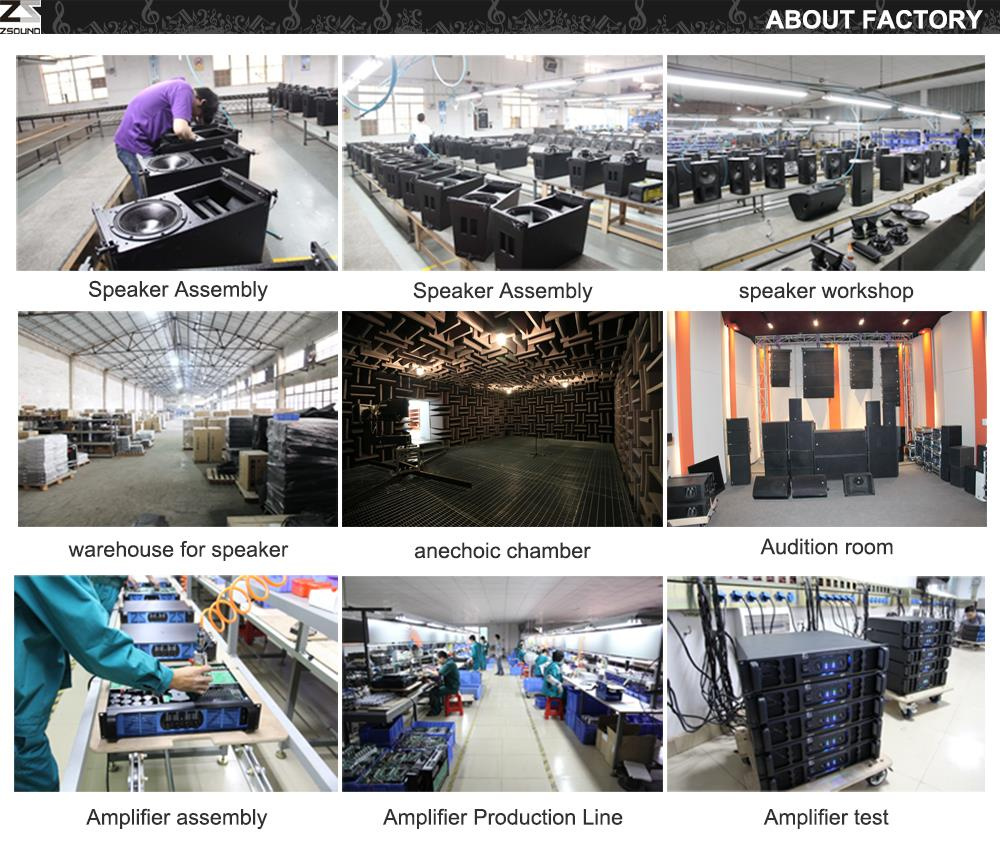

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.
Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.
During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.
What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance
In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.
After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.
Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
