| Prod Model: |
LA212 |
| Frequency Response: |
50Hz-16kHz(±3dB) 40Hz-18kHz(-10dB) |
| Nominal Cverage: |
90°(H) 7.5°(V) Adjustable |
| Sensitivity: |
Hf: 113dB Spl Mf: 105dB Spl Lf: 100dB Spl |
| Power Rating: |
Hf/Mf/Lf: 160W/350W/800W |
| Nominal Impedance: |
Hf/Mf/Lf: 16/16/12 Ohm |
| Maximum Spl: |
Hf: 135/141dB Mf: 130/136dB Lf: 129/135dB |
| Drivers: |
Lf 2X12" Woofer Mf 1X10" MID Range Hf 2X3inch |
| Dimensions (Hxwxd): |
367X1000X550mm |
| Weight: |
65kg |
| Service: |
OEM / ODM |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Touch Control |
| Speaker System: |
Mono |
| Speaker Material: |
Wood |
| Certification: |
SGS |
| THD: |
>0.01% |
| Application: |
Touring Performance, Stadium, Theatre |
| Monitor: |
None |
Product Description

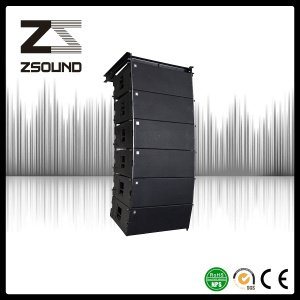

professional audio line array speaker LA212 line array is a large-scale 3-way, tri-amped system, which provides frequency ranges from 50Hz to 16KHz.
The system consists of 2X75 mm(voice coil) neodymium compression drivers, one 10″ neodymium MF driver and 2X12″ neodymium LF drivers to achieve an impressive headroom.
The Mid and Low frequency adopts a couple of 12″cone LF driver. Each unit's power handling is 400W and two units connect in series.
One 10″ MF driver with high sensitivity is mounted at the rear of the HF driver to make up a coaxial configuration.
A MF phase plug is mounted on the surface of the MF driver, which has excellently improved the directivity and increased sensitivity.
The HF section utilizes 2x75mm(voice coil) neodymium complex film drivers coupled with a 90 °exponential constant horn via plane-wave transducer to make an coherent wave front.
The HF section with 113 dB sensitivity can make the loudspeaker generate 140 dB peak SPL output.
LA212 is a trapezoidal speaker with the seamless gap between each cabinet.
The adjustable angle of the cabinet is 0-7.5°, 1° per step, the rigging hardwares are made of high strength steel. It is safe enough to hang 16 enclosures together,
as the safety factor will reach up to 7:1.
The enclosure is constructed by multi-plywood, with panel in size 18mm, and other parts in size 15mm. It is finished with gray textured water paint.
Two recessed handle cups are mounted on both sides of the enclosure for easy lifting and carrying.
The rear panel connector plate carries 2 Neutrik Speakon NL8MP connectors for loop in and loop out connections.
Besides, the enclosure is well protected by the gray mesh grill with acoustically reticulated foam.
Applications:
Touring performance
Stadium
Theatre
Feature:
Large-scale,thri-amp,three-way line array system
MF&HF parts is coaxial structure to optimise acoustic image
Neodymium high-sensitivity driver, maximum headroom
LA212 system advantage
1) All of speaker driver is used import and neodymuim drivers which is deal with and tested by 200 degree high temperature treatment.
2) The plywood, All the plywood was import from Russia. Just go ahead used in outdoor.
3) Our hander cup is the same as LA, D&B. All of our spare parts are used penn elco
4) the pin, our pin was use stainless steel , and must be pass 7:1 safe factor weight test. As you are a professiona people,
you must know how important about the pin. If te pin is not good. It is danger when you rigging the line array speaker in the air."
5) Our design, the length about our speaker is 1000mm and 65KG. This is few factory can do that small size with maximum heatroom,
We also use mort than ten years to choosie the best speaker drive for our line array speaker system. And our MF&HF parts is coaxial structure to optimise acoustic image.
We can repair it when the speaker was in problem.
6) LA212 is recommanded to match LA215S (double 15" flying sub), S118H, S218H(,SS2 single and double 18" horn loaded subs) powerful subwoofers.
7) All the technoloy data is real. We use SMAART7, 3D directionality test, and CLIO electroacoustic measuring system, audio precision test,
And all the data is open. We also have our own EASEFOCUS data and GLL picture
| TECHNICAL SPECIFICATION |
| Frequency Response: | 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
| Nominal Coverage: | 90°(H)7.5°(V) |
| Sensitivity (@1w/1m): | HF:113dB SPL MF:105 dB SPL LF:100 dB SPL |
| Power Rating (AES): | HF/MF/LF:160W/350W/800W |
| Nominal Impedance: | HF/MF/LF:16/16/12Ohm |
| Maximum SPL: | HF135/141 dB MF:130/136 LF;129/135 dB |
| Drivers: | LF 2*12"(75mm Voice coil)neodymium woofer; MF 1*10"(65mm voice coil)neodymium mid-range; LF 2*3" neodymium compression driver |
| |
| PHYSICAL DATA |
| Dimension (H*W*D): | 367*1000*550mm |
| Weights: | 65kg |
| Connectors: | 2*WP7 connectors |
| Speaker Cables: | 1-2+LF 3-4+MF 5-6+HF |
| Materials: | 18mm,24mm birch multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0,1 ,2,3,4,5,7.5 degree adjustable |
