LED Panel Screen, LED Panel Display
| Price: |
US $ 1-960/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
5/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
P6, P10, P12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outdoor: |
IP65 |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
ETL |
| Pixel Pitch: |
20mm |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
Static Scan |
| Average Power Consumption: |
220W / m² |
| Pixel Density: |
2500 |
Product Description

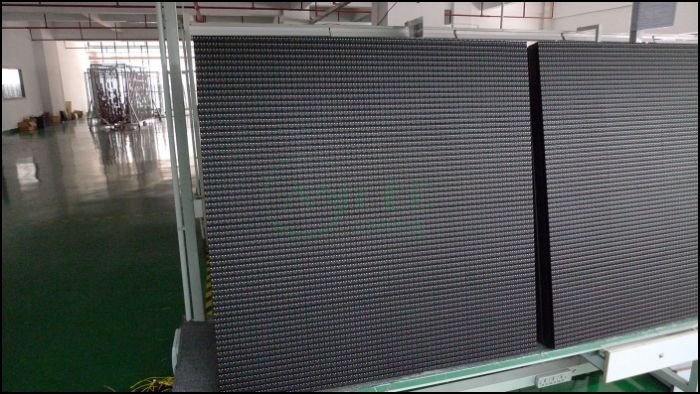

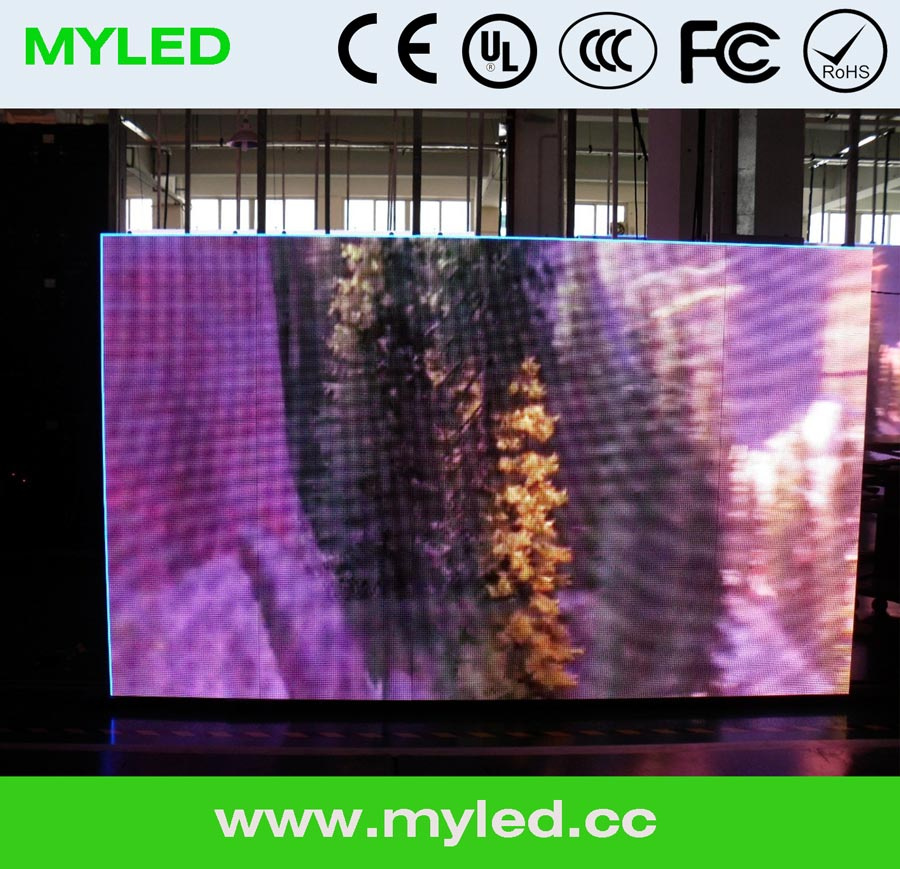

The most cost effective LED display for outdoor application, being introduced to the market for more than 10 years.
We have to say, for outdoor advertising, P20 & P16, are the most reliable products since ever!Main Parameter |
Category | Parameter |
Pixel Pitch | 20mm |
Optimum Viewing Distance | 20-50m |
Density of Pixel | 2500pixels/ |
Brightness | ≥6500nite | ≥7000nite |
Module Resolution | 16*16 |

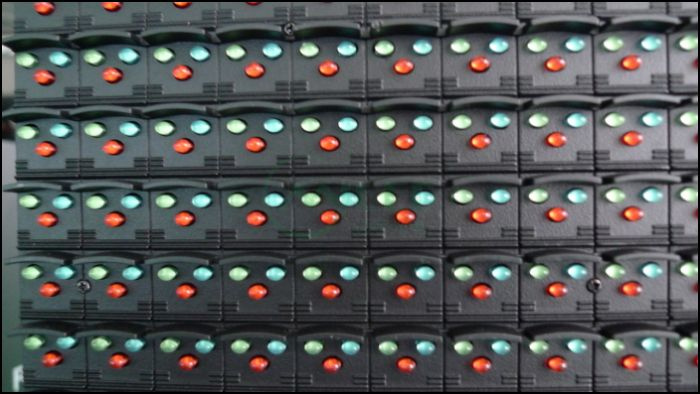

LED Encapsulation | DIP346 2R1G1B | DIP346 1R1G1B |
Driving Method | Virtual Static | Real Static |
Optimum Viewing Angle | H: 110°V:50° |
Module Size | 320*320*27.7(mm) | 320*320*33.4(mm) |
Module Power | 44w | 50w |
Module Weight | 1100g | 1200g |
Cabinet Size | 1280*960*178(mm) | 1280*960*183(mm) |
Cabinet Resolution | 64*48 |
Cabinet Power | 1320w | 750w |
Cabinet Weight | 59kg | 59kg |
IP Rating | Front/Rear:IP65/IP43 |
Refresh Rate | 1000-4000Hz( Different according to the different Driving IC ) |
Luminance Consumption | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature25ºC. |
MTBF | >5000hours |
Defective Dot Rate | <0.0001 |
Life Span | >100000hours |
Working Voltage | 110-240 AC±10% 50-60Hz |
Working Temperature/Humidity | -30ºC - +50ºC/10-90%RH |
Storage Temperature/Humidity | -40ºC - +60ºC/10- 90%RH |
Input Signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
Connector | CAT5 Cable(Length≤1430m),Optical link( Length≤20km,Optional) |
Note: The above parameter is just for reference. Changes can be made according to customers' requirements |
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
