| Prod Model: |
DSP 1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Output Number: |
4 |
| Function: |
Post Amplifier |
| Tube Type: |
Tube Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2.0 |
| Voltage: |
100v~230v |
| Conductive Mode: |
Class H |
Product Description

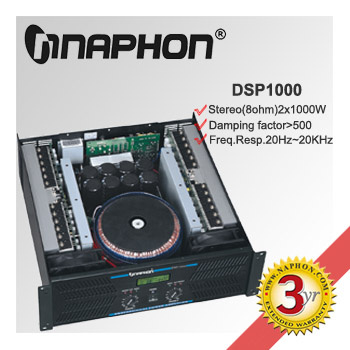

PRO power amplifier
DSP series amplifier uses particular MIRRORED FRONTED POWER SUPPLY BRIDGE to make the symmetrical circuit design.
With power automatical switch system, power parallel connection in low power can increase the output current. The circuit with shield cover adds shield ring to transformer for less noise.
The LED panel has level, power supply and temperature for channels display. It can change speed of fans according to the channel temperature, ensuring the cooling and also protect the amplifier while over heating to abnormal power supply...
|
Model |
DSP400 |
DSP600 |
DSP800 |
DSP1000 |
DSP1200 |
DSP1400 |
|
Out Power(8Ω) |
2x400W |
2x600W |
2x800W |
2x1000W |
2x1200W |
2x1400W |
|
Out Power(4Ω) |
2x650W |
2x950W |
2x1300W |
2x1600W |
2x1800W |
2x2100W |
|
Out Power(2Ω) |
2x950W |
2x1400W |
2x1900W |
2x2400W |
2x2700W |
2x3000W |
|
Bridge(8Ω) |
1300W |
1900W |
2600W |
3200W |
3600W |
4200W |
|
Bridge(8Ω) |
1900W |
2800W |
3800W |
4800W |
5400W |
6000W |
|
Input Impedance |
20KΩ |
|
Frequency Response |
20Hz ~ 20KHz |
|
T.H.D |
0.05% |
|
Slew Rate |
80V/usec |
|
Hum and Noise |
103dB |
|
Damp Modulus(8Ω) |
>500 |
|
Radiator |
High/Low Automatism Control |
|
Safeguard |
DC Safeguard/Out Overloading/Boot-strap Short Test |
|
Power Supply |
AC115V-240V 50~60Hz |
|
Net Weight(KGS) |
23.5 |
26.0 |
27.0 |
33.0 |
34.0 |
35.5 |
|
Dimension(MM) |
482×453×88.8 |
482×468×132 |
NAPHON MUSIC, based in Shenzhen, is a company specialized in the design and production of quality professional audio equipments. Its package of products are widely used in music venues, theatres, houses of worship, sporting events and much more.
NAPHON MUSIC has a major commitment to produce the most accurate & reliable product available. It maintains an extensive research and development division which is constantly looking for ways to improve the performance, value and reliability of products, introduced the Surface Mounting Technology, proudly launched its new MC series of DSP Mixers and SA series of Amplifiers. With a stringent quality control in production, it can arrive at an ever higher standard of quality for full range of products. NAPHON MUSIC had got ISO9001: 2000 International Standard Approval and CE approval.
NAPHON MUSIC always focus on tomorrow, embracing severe construction standards and the on-going aim to provide the best sound and most outstanding customer service you've ever experienced.
