| Prod Model: |
JPS-EF-150L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Circulation Type: |
Direct / Open Loop (Active) |
| Connection Type: |
Direct-Plug |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Unpressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CCC |
Product Description

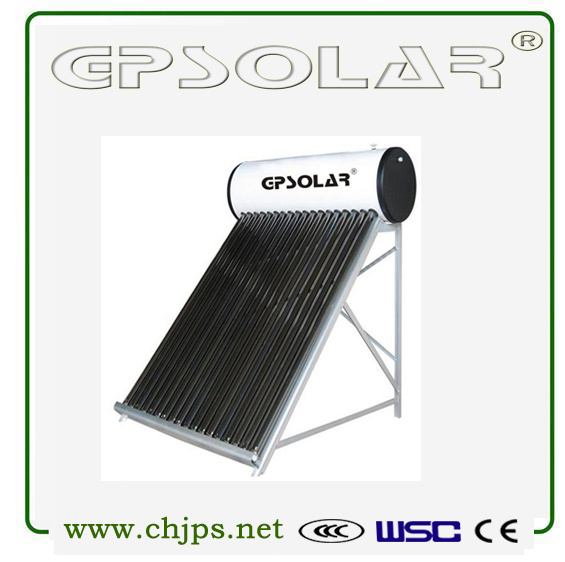

Sell solar water heater tank for home appliance
1. Inner tank: 0.4mm-0.6mm thickness SUS 304-2B Stainless steel
2. Tank diameter: Outer tank 470mm/480mm; Inner tank360mm/370mm
3. Vacuum tube: JPS-47-1500mm/58-1800mm
4. Outer tank: 0.31mm-0.4mm thickness Wiredrawing Metal Plate/Fluorin Carbon Plate/Color Steel
5. Frame: 1.2mm thickness Aluminum Alloy/1.5mm thickness Galvanized Steel
6. The material of insulation: 55-60mm thickness Polyurethane
7. The reflector: Stainless steel /Aluminum plate
8. Working efficiency: >95%
9. Heat Preservation time: 72hours
10. Hail resistance: 25mm
11. Inlet/oulet size: 1/2'', 3/4''
12. Tank capacity: 100L/110L/115L/135L/150L/165L/200L/250L/285L/300L
13. Air vent: 100% copper vent
Sell solar water heater tank with good quality:
1.5 years manufacturer's warranty against deffects in material and workmanship.
2.3 years for vacuum tube
* If you want to know more details, please send us mail, we will be glad to help, thanks!
|
Type&specification |
JPS-EF-47/1500-16C |
JPS-EF-47/1500-18C |
JPS-EF-47/1500-20C |
JPS-FF-58/1800-16C |
JPS-FF-58/1800-18C |
JPS-FF-58/1800-20C |
|
Numbers of vacuum tubes |
16 |
18 |
20 |
16 |
18 |
20 |
|
Glass tube material |
borosilicate glass 3.3 |
|
Material selective absorber layer |
SS-C/Cu | Cu SS-ALN(H)/SS-ALN(L)/ALN |
Glass tube
(ext./int./wall thickness)(mm) |
47/37/1.6 |
47/37/1.6 |
47/37/1.6 |
58/47/1.6 |
58/47/1.6 |
58/47/1.6 |
|
Glass tube length(mm) |
1500 |
1500 |
1500 |
1800 |
1800 |
1800 |
|
Distance between two tubes(mm) |
70 |
70 |
70 |
76 |
76 |
76 |
|
Volume(liters) |
90 |
101 |
112 |
128 |
144 |
159 |
|
Gross Weight(kg) |
29 |
31 |
32 |
39 |
42 |
45 |
Package Dimensions(LxWxD)
(mm) |
1310x450x490 |
1450x450x490 |
1590x450x490 |
1400x490x530 |
1550x490x530 |
1700x490x530 |
|
QTY in20GP/40GP/40HC(sets) |
54/115/133 |
41/89/101 |
37/81/93 |
37/77/83 |
35/75/79 |
35/65/71 |
