| Prod Model: |
JPS-YP-1-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collector Components: |
Flat-plate |
| Pressure: |
Pressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CCC |
Product Description
Specification
(1) Flat-plate solar collector is high efficient and pressurized. The life span is about 30 years.
(2) Flat-plate solar collector has no anti-freeze function.
(3) Therefore, it is suitable. For south area use.
(4) Specification: Flat-plate solar collector could produce 55 Hot water: 75-140kg/ m2 if the weather is fine without cloud.
(5) Frame material: Galvanized steel plate with 1.5mm thickness
(6) Material of heating preservation: 55mm Polyurethane.
(7) water tank capacity: 100L-300L
(8) Pressure: 0.6MPa
1) Use in any time: It adopts Advanced design idea and integrates with high efficiency pre-heated patent Technique, so it can warm the cold water rapidly when it flows through special Pipe. It can overcome the demerit its of traditional SWH, such as slow heating, Long waiting time.
2) More Capacity: We adopt special exchanging heat mode, it avoids mixed effect, So cold water can be heated at any moment.
3) High hydraulic pressure: The hydraulic pressure is same as tap water, it is Very suitable for tired person.
4) Easy operation: It can supply water automatically, you can take it easy and Enjoy good time.
5) Economical and Environment protecting: There is no pollution when it is working since it depends on sunshine, Green and economical
6) Fashionable: The appearance is fashionable and it can great integrate with your fitment.

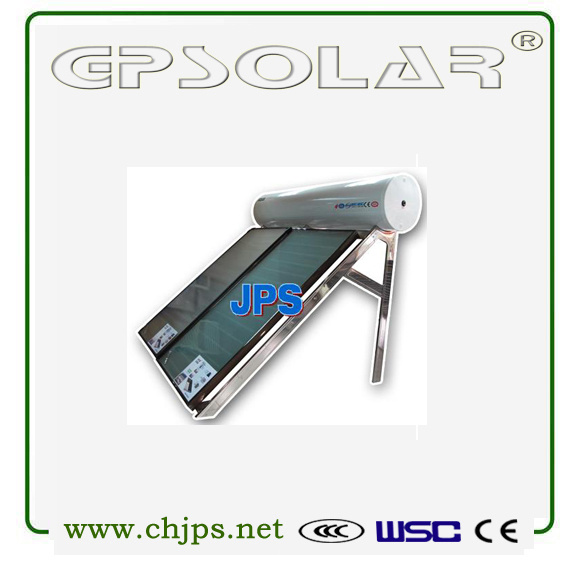

Pressurized Flat Plate Solar Thermosiphon system
1. The above pricing is based 2mm SUS304-2B, additional quote given according to customers' requirement.
2. Outer shell: Milky-white galvanized steel 0.5mm in thickness
3. Thermal Insulation: 50mm
4. Safety Valve: US standard male 3/4 inch
5. Heating element: 2KW, 1inch
6. Water inlet& outlet: 3/4 inch female BSP threads
7. Panel dimensions: 2050x1050x95mm/2000x1000x95mm, more details about the panels, please refer to above at 4.1 and 4.3
8. Frame: 2mm weathering resistance steel, heavy duty, power coated, 4 or 6 stainless steel round feet.
9. Packing: 5ply carton, tank, panel, frame and controller boxed individually.
10. Term of service: 5 years warranty for tank and panels, one year for electronic controller
Established in 2006, Zhejiang Jin PU Sen New Energy Technology Co., Ltd., is a science and technology enterprise that combines research, development, manufacture and marketing of solar thermal comprehensive. With registered capital of 20, 08 million, the research and development center of new energy enterprise was set up at the same year. In 2010, it was recognized as Hangzhou High and New Technology Enterprise and Hangzhou Eyas Project Enterprise. While the company is conducting self technology innovation, it also actively seeks long-term cooperation with large numbers of both domestic and foreign research institutes, and has established Fuyang Enterprise High-tech Research and Development Center and the Sino-America Enterprise High-tech Research and Development Center in succession, which enhances the company's continuity of research and development ability. At present, the company has owned 46 national patents, including 6 patents of invention.
The company mainly produces flat-plate solar water heaters, efficient micro-porous superconducting solar water heaters, vacuum tube collectors, heat pump-four dimensional integrated units, solar gas wall mounted integrated systems, solar steam generators, high efficient solar air-conditioners and other series products. Relying on our strong research and development strength, we have developed a series of efficient solar thermal comprehensive utilization products with wide applications, and have become one of the earliest domestic manufacturers that have realized the independent research, development and production of pressurized solar water heaters. The products are widely exported to the United States, Europe, Middle East, Southeast Asia, and other countries.
As "science and technology reshape life, and energy saving creates wealth", the company adheres to the enterprise tenet of "technology first, caring for people, green energy and benefiting the society", takes "to build a new energy industry and to create a technology-based brand" as the goal, and strictly enforces the ISO9001: 2008 quality system, the ISO14001CE and other international standards, striving to create a first-class "new energy" enterprise and create a new "green home full of golden sunlight".
