| Prod Model: |
JPS-FF-58-200L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Volume: |
200L |
| Inner Tank: |
SUS304/2b or Galvanized Steel |
| Outer Tank: |
Galvanized Sheet Painting |
| Circulation Type: |
Direct / Open Loop (Active) |
| Connection Type: |
Direct-Plug |
| Application: |
Water Heater |
| Pipe Material: |
Vacuum Tube |
Product Description

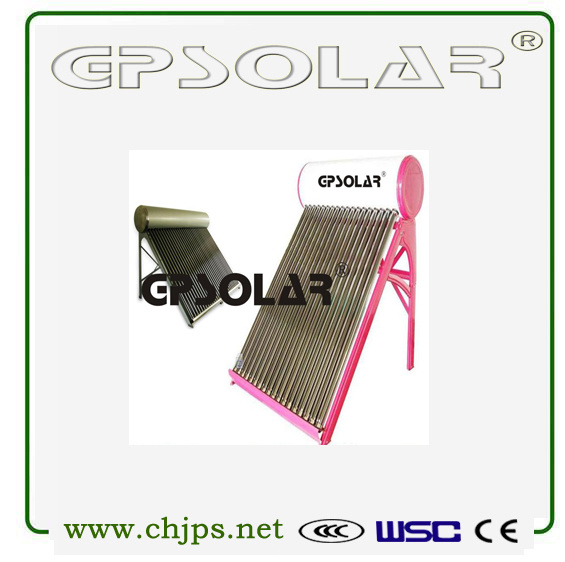

Solar hot water heater FEATURE:
1. Solar water heater with CE, CCC, ISO certificate
2. Special high quality Insulated material to reducing the heat loss rate
3. High quality copper coil for efficient heat transferring and long life span of the solar water heater
4. Exquisite workmanship to guarantee the decent appearance
5. Long life span and no extra cost after installation
6. Easy opearation
NON-PRESSURIZED SOLAR WATER HEATER SPECIFICATIONS:
1) Model No.: JPS-FF-58-200L(complete set)
2) Capacity Optional: 200L, 250L, 300L
3) Working temperature: 50-60celsius degree
4) Vacuum tube: D58, 1500mm
5) heat Absorption rate: 92%-96%
6) Cold resistance: -30
7) heat receiver area: 1.9m²
NON-PRESSURIZED SOLAR WATER HEATER PACKING:
1) Standard export packing
2) Special packing for sample
|
Type&specification |
JPS-FF-1500-6C |
JPS-FF/1500-18C |
JPS-FF/1500-20C |
JPS-FF/1800-16C |
JPS-FF/1800-18C |
JPS-FF/1800-20C |
|
Numbers of vacuum tubes |
16 |
18 |
20 |
16 |
18 |
20 |
|
Glass tube material |
borosilicate glass 3.3 |
|
Material selective absorber layer |
SS-C/Cu | Cu SS-ALN(H)/SS-ALN(L)/ALN |
Glass tube
(ext./int./wall thickness)(mm) |
47/37/1.6 |
47/37/1.6 |
47/37/1.6 |
58/47/1.6 |
58/47/1.6 |
58/47/1.6 |
|
Glass tube length(mm) |
1500 |
1500 |
1500 |
1800 |
1800 |
1800 |
|
Distance between two tubes(mm) |
70 |
70 |
70 |
76 |
76 |
76 |
|
Volume(liters) |
90 |
101 |
112 |
128 |
144 |
159 |
|
Gross Weight(kg) |
29 |
31 |
32 |
39 |
42 |
45 |
|
Package Dimensions(LxWxD)(mm) |
1310x450x490 |
1450x450x490 |
1590x450x490 |
1400x490x530 |
1550x490x530 |
1700x490x530 |
|
QTY in20GP/40GP/40HC(sets) |
54/115/133 |
41/89/101 |
37/81/93 |
37/77/83 |
35/75/79 |
35/65/71 |
