| Prod Model: |
P3. P4, P5, P6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
Within 7 Days |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
ETL |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
4mm |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Pixel Density: |
62500 |
| System Operating Platform: |
W XP/ W7 /W8, |
Product Description
Module features:

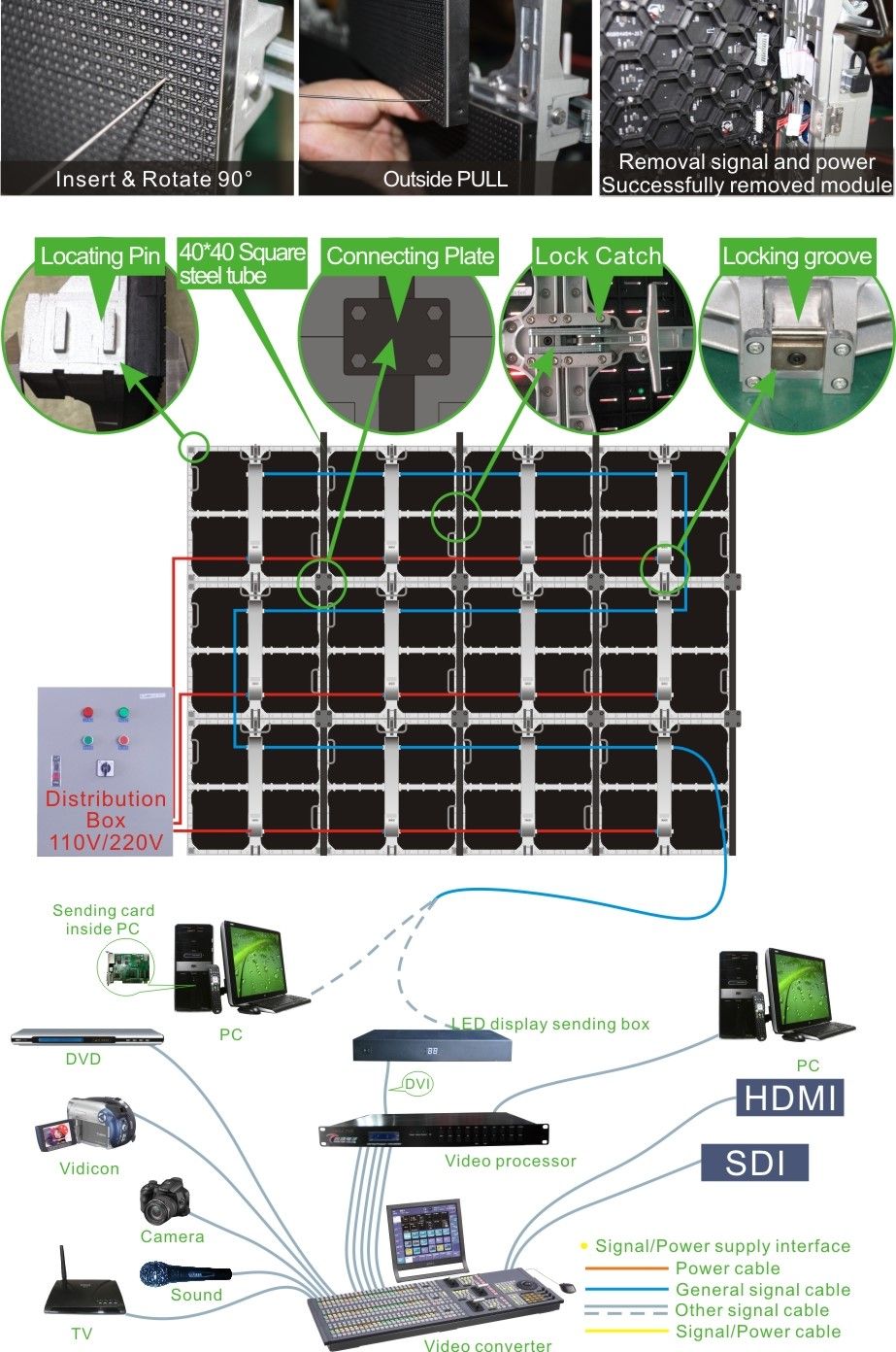

1, can be front or rear maintenance,
2,applible for front service because of the magnet design on the module, much easier for module repairing\disasembly work;
3,unique honeycomb design with high precision,much stable and fla.
Cabinet features:
1,Thermal-conductive & noiseless power supply.
2,Fast lock system-80% higher efficiency in installation.

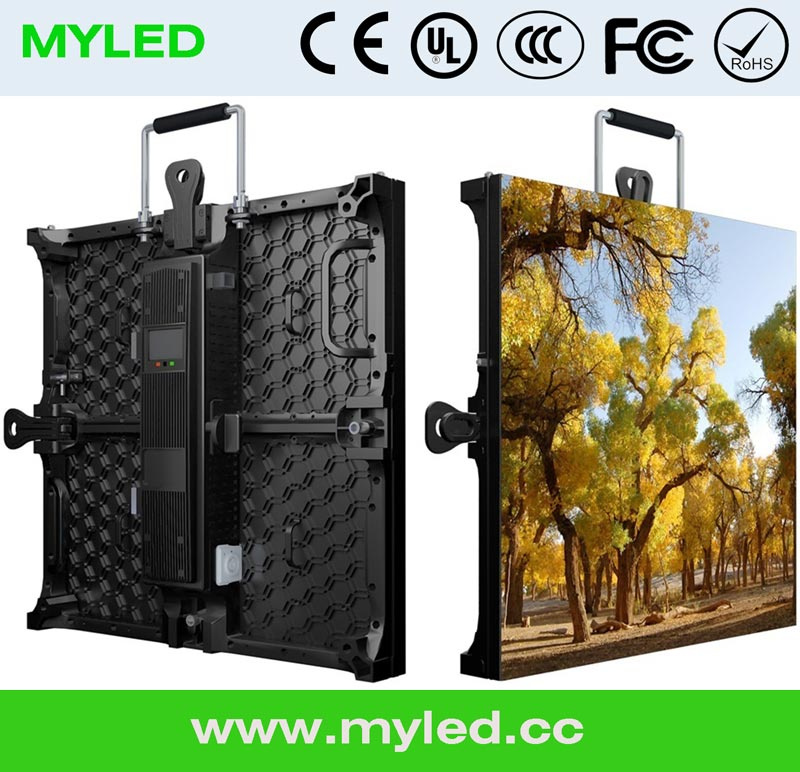

3,Die-casting aluminum cabinet: High precision and less weight.
4,Applicable for either fixed or rental/hang application, fast and easy set up and tear down, widely accepted for stage rental business.
5,Available pitch: P5.33, P5.926, P6.67, P8, P10.
| Module Parameter | Item | Specification Parameter |
| Pixel Pitch,Resolution rate,size | 5mm,64*64,320*320*17mm |
Pixel color, Pixel LED
| 1R1G1B, SMD3528 |
| Working voltage,Module Power | DC4.5V,45W
|
| Driving IC,Driving way | JXI5020B,1/16 |
| HUB | QP640X640ZL-HUB44-V1.0 |
| Cabinet Parameter | Material,Cabinet Weight(kg/Cabinet) | Cast aluminum,11.5kg/Cabinet |
| Resolution rate,size,Module quantity | 128*128,640*640*97mm,2X2 |
| Density | 40000/ |
| White balance ,Color temperature | ≥1000 CD/,6500K-8000K |
| view angel,Non-Flatness,Module interval | H:120°;V:120°,<0.5mm,<0.5mm |
| Maximal power/,Average power/ | 550W/,200W/ |
| Frame frequency,Refresh frequency,Gray grade | 60Hz,1920Hz,13bit |
| Control system,System supports | Novastar / Linsn /,Windows XP,WIN 7, |
| Working temperature,Protection grade | -10ºC - +40ºC,Front/Back:IP30/IP30 |

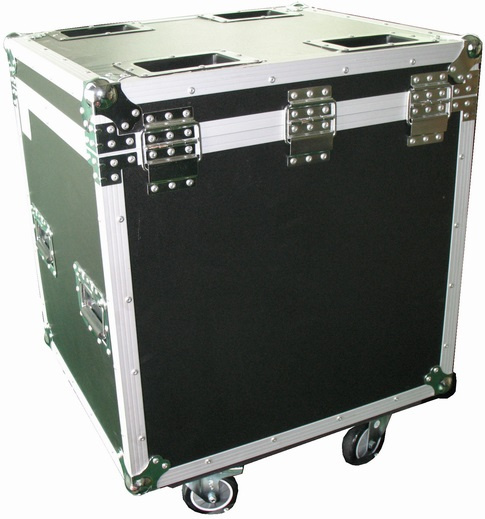

Packing case
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
