| Prod Model: |
63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
63 |
| Motor Poles: |
2p |
| Rotating Speed R/Min: |
2930 |
| Blade Angle: |
D1 |
| Blast Volume M3/Min: |
11.8 |
| Speed M/S: |
37.8 |
| Axial Thrust N: |
540 |
| Motor Power Kw: |
15 |
| Thrust/ Power N/Kw: |
36 |
| Noise Db: |
75 |
| Blade Material: |
Stainless Steel |
| Electric Current Type: |
AC |
| Mounting: |
Duct Fan |
| Certification: |
SGS |
Product Description
Product Introduction

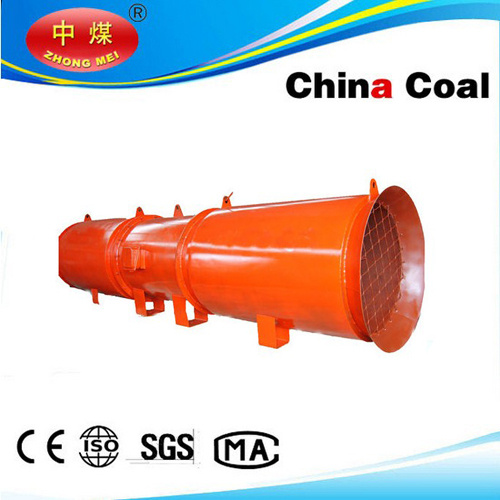

carpark ventilation fan
tunnel fan, carpark ventilation fan, wall fan
SDS-Jet Tunnel Ventilation Fan for Construction
SDS jet flow fans is specially used for the tunnel lengthways ventilation system,
the fans is installed hanging on the top roof of tunnel or both sides, which do not effect the traffic,
noneed to build exhaust way. Low cost building , is very ideal ventilation fans.
Main Parameter
Main Parameter
| Model | Motor
Poles | Rotating
Speed
r/min | Blade Angle | blast volume
M3/min | Speed
m/s | Axial
Thrust
N | Motor
Power
KW | Thrust/
Power
N/KW | Noise
dB |
| 40 | 2P | 2840 | D1 | 3.2 | 25.5 | 115 | 2.2 | 52.3 | 73 |
| 50 | 2P | 2900 | D1 | 6.5 | 33.2 | 285 | 7.5 | 38 | 75 |
| 56 | 2/4P | 2930/1400 | D1 | 8.6/4.1 | 35.1/16.8 | 385/76 | 12.5/2.8 | 35/79.1 | 75/63 |
| 63 | 2P | 2930 | D1 | 11.8 | 37.8 | 540 | 15 | 36 | 75 |
| 2930 | D2 | 10.5 | 33.6 | 430 | 11 | 39.1 | 73 |
| 2900 | D3 | 9.2 | 29.5 | 330 | 7.5 | 44 | 71 |
| 2900 | D4 | 8.2 | 26.4 | 260 | 5.5 | 47.3 | 68 |
| 4P | 1430 | D1 | 5.5 | 17.6 | 129 | 2.2 | 58.6 | 63 |
| 80 | 4/6P | 1460/960 | D1 | 14.8/10 | 29.5/19.9 | 550/240 | 15.5/5.1 | 36.7/60.0 | 75/68 |
| 90 | 4P | 1470 | D1 | 21.1 | 33.2 | 870 | 22 | 39.5 |
|
