| Prod Model: |
FZY200-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Fzy-200-2 |
| Rated Voltage(V): |
220 |
| Frequancy (Hz): |
50 |
| Rated Current(a): |
0.32 |
| Input Power(W): |
70 |
| Rated Speed (R/Min): |
2650 |
| Rated Airflow (M3/H): |
1080 |
| Pressure (PA): |
180 |
| Capacitance (UF): |
2 |
| Noise (Dba): |
57 |
| Blade Material: |
Stainless Steel |
| Electric Current Type: |
DC |
| Mounting: |
Duct Fan |
| Certification: |
SGS |
Product Description

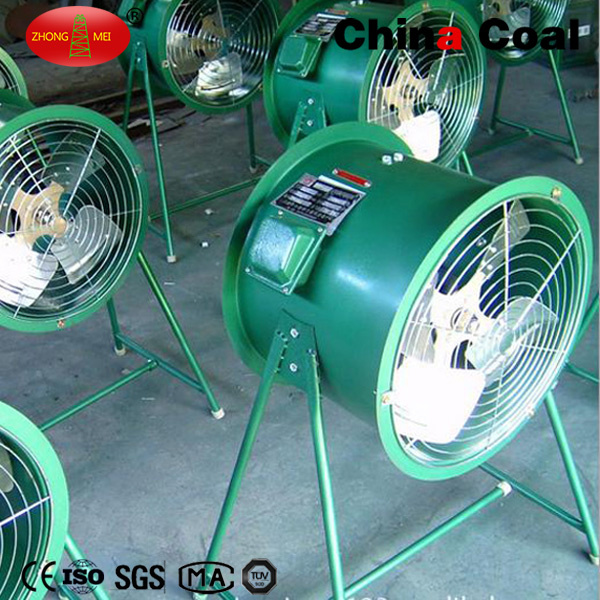

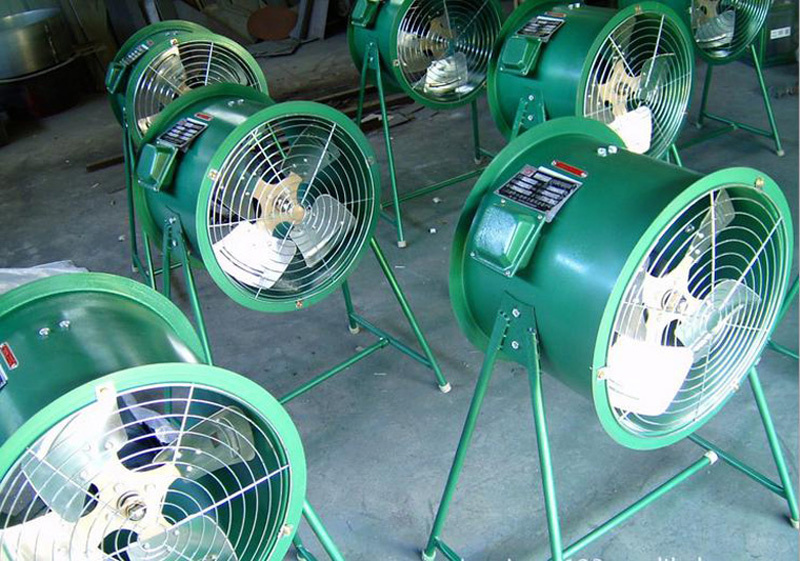

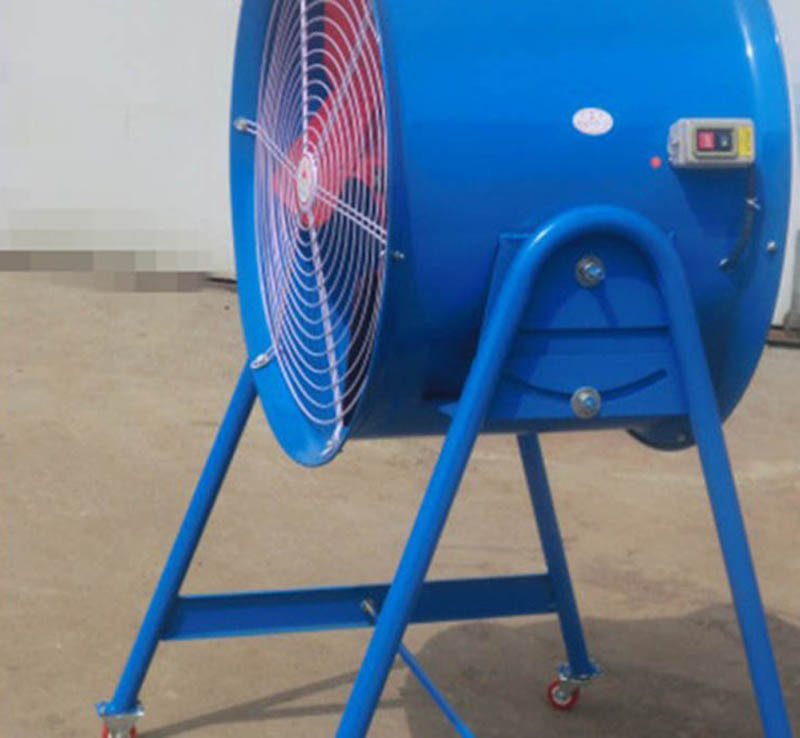

Product Introductionideal local ventilation fan for tunnel, mining and excavation
Function: small power ventilation, low noise, high efficiency, energy-saving, various style available
Structure: built-in explosion-proof device and anti-noisy device
Buit-in reverse vane and can spin reversely
Exhaust fan distance: 160-1600m far away
Main Parameter
| Model | Rated Voltage(V) | Frequancy
(Hz) | Rated Current(A) | Input Power(W) | Rated Speed
(r/min) | Rated Airflow
(m3/h) | Pressure
(pa) | Capacitance
(uF) | Noise
(dBA |
| FZY-200-2 | 220 | 50 | 0.32 | 70 | 2650 | 1080 | 180 | 2 | 57 |
| FZY-200-2 | 380 | 50 | 0.2 | 80 | 2650 | 1080 | 180 | / | 56 |
| FZY-200-2 | 220 | 50 | 0.28 | 60 | 1450 | 510 | 70 | 2 | 50 |
| FZY-200-2 | 380 | 50 | 0.2 | 65 | 1450 | 510 | 70 | / | 50 |
