| Prod Model: |
YBF2-90L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ybf2-90L |
| Power Kw: |
2×2.2 |
| Pressure( V): |
380/660 |
| DC Current (a): |
4.85/2.79 |
| Air Capacitm3/Min: |
136~89 |
| Pressure (PA): |
256~205 |
| Highest Efficiency (%): |
≥75 |
| A Sound Level (Db): |
≤30 |
| Blade Material: |
Stainless Steel |
| Electric Current Type: |
DC |
| Mounting: |
Duct Fan |
| Certification: |
CE |
Product Description
Product Introduction

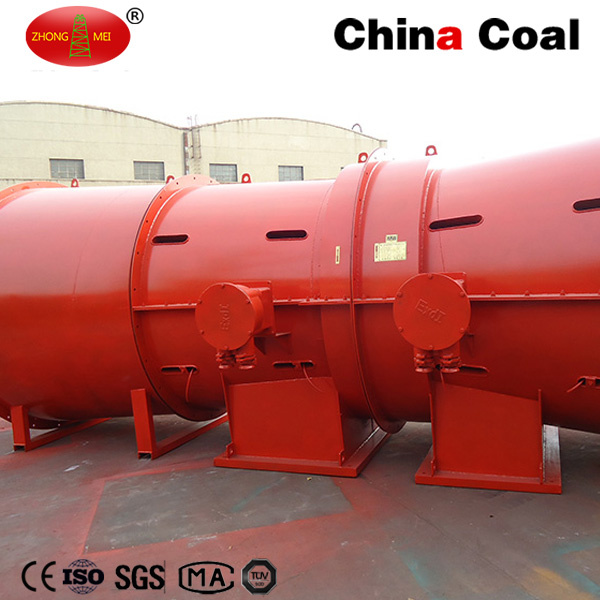

Mining explosionproof ventilation fan explosionproof ventilation fan for deep tunnel, far distance ventilation fan exhaust fan for mining, axial fan for tunnel local ventilation fan Industrial roof exhaust fan
Application: Best choise ventilation fan for under mining coal, deep tunnel/ metal mining/ engineering tunnel
Function: far distance ventilation, big power ventilation, low noisy, high efficiency, energy-saving, various style available
Temperatuer range:-20°C~+40°C
Tunnel Long: 2000m ventilation
Main Parameter
| NO. | Rotater/min | Motor model | Power kW | Pressure( V) | DC current (A) | Air capacitm3/min | Pressure (Pa) | Highest efficiency
(%) | A sound Level
(dB) |
| 4.0 | 2900 | YBF2-90L-2 | 2×2.2 | 380/660 | 4.85/2.79 | 136~89 | 256~2050 | ≥75 | ≤30 |
| | | YBF2-100L-2 | 2×3 | 380/660 | 6.4/3.7 | 150~100 | 325~2500 | ≥75 | ≤30 |
| | | YBF2-112M-2 | 2×4 | 380/660 | 8.1/4.7 | 165~109 | 375~3040 | ≥75 | ≤30 |
| 5.0 | 2900 | YBF2-112M-2 | 2×4 | 380/660 | 8.1/4.7 | 217~145 | 275~2060 | ≥75 | ≤30 |
| | | YBF2-132S1-2 | 2×5.5 | 380/660/1140 | 11.1/6.4/3.7 | 240~161 | 325~2540 | ≥75 | ≤30 |
| | | YBF2-132S2-2 | 2×7.5 | 380/660/1140 | 14.8/8.66/4.97 | 266~178 | 400~3155 | ≥75 | ≤30 |
| 5.6 | 2900 | YBF2-132S2-2 | 2×7.5 | 380/660/1140 | 14.8/8.66/4.97 | 286~188 | 275~2850 | ≥80 | ≤25 |
| | | YBF2-160M1-2 | 2×11 | 380/660/1140 | 21.6/12.6/7.2 | 324~215 | 375~3690 | ≥80 | ≤25 |
| | | YBF2-160M2-2 | 2×15 | 380/660/1140 | 28.8/17.0/9.6 | 400~236 | 1107~4500 | ≥80 | ≤25 |
