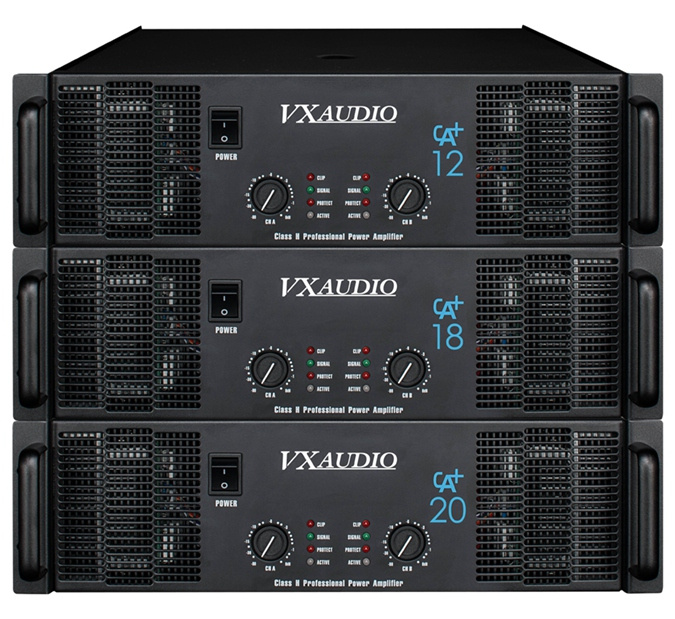

High Quality High Power Amplifier Ca+20
| Price: |
US $ 3/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
20/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CA+20 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
2 |
| Voltage: |
110V-240V as Per Customer Request |
| Conductive Mode: |
H |
Product Description
Features
- CA+ Series provide extensive protection features such as Overheat short currents, DC protection, zero current, clip limiter, soft start
- Flow-through ventilation from front to back
- Offered in 200W-1300W power area
- High power toroidal transformer
- Internal heat sinks with forced air cooling for rapid, heat dissipation
- Dual fans for proper cooling to maintain performance and proper working levels
-Suitable to various Input / Output Connectors. Has 3 Ways Sensitivity Switches for Stereo, Bridged Mono and Parallel Mono. Also connects swiftly to speakers VIA Speakon.
- Can endure 8ohm, 4ohm and 2ohm loads
- Highly reliable and stable
-Noise Free product.
-Less Distortion for better quality sound.
-Excellent & Natural Timbre.
-Crossover Selector in the 3U CA+ Series to use with one or more subwoofer speakers. | Model | CA+20 |
| Stereo Power 8Ω | 2*1300W |
| Stereo Power 4Ω | 2*1950W |
| Stereo Power 2Ω | 2*2600W |
| BTL 8Ω | 3900W |
| BTL 4Ω | 5200W |
| Frequency Response | 20Hz - 20kHz +0/-0.3dB |
| THD+N | <0.03%@8Ω 1kHz |
| S/N Ratio | >93dB |
| Slew Ratio | 44V/u S |
| Damping Factor | >400 |
| Crosstalk | >70dB@8Ω 1kHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 0.775V/1.0V/1.4V |
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
| Height | 3U |
| Gross Weight | 41KG |
| Dimensions | 655×585×200MM |
Enping PuSheng Electronic Co., Ltd is professional of high professional power amplifier and signal processors.
With a team of engineers we are development of high quality products to keep up with the current market's demand. We have provided OEM service for many of our domestic and foreign companies. Our products have been sold to our clients in Asia, South American and So on.
No matter you are wholesaler, distributer or a rentals company, PuSheng have a wide selection of professional qudio products to suit your market's demand professional audio products.
PuSheng purpose is best quality, best price, best after-sales service, with you to create a brilliant future and becoming one of our faithful co-operative partners.
