| Prod Model: |
1380*1380*450mm |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Installation: |
Wall Mounted |
| Type: |
Ventilation Fan |
| Power Supply: |
Electric |
| Material: |
Stainless Steel |
| Application: |
Greenhouse, Licestock, Poulty House and Workshop. |
| Timer: |
Without Timer |
| Remote Control: |
Without Remote Control |
| Certification: |
CE |
| Power: |
770W-1100W |
Product Description

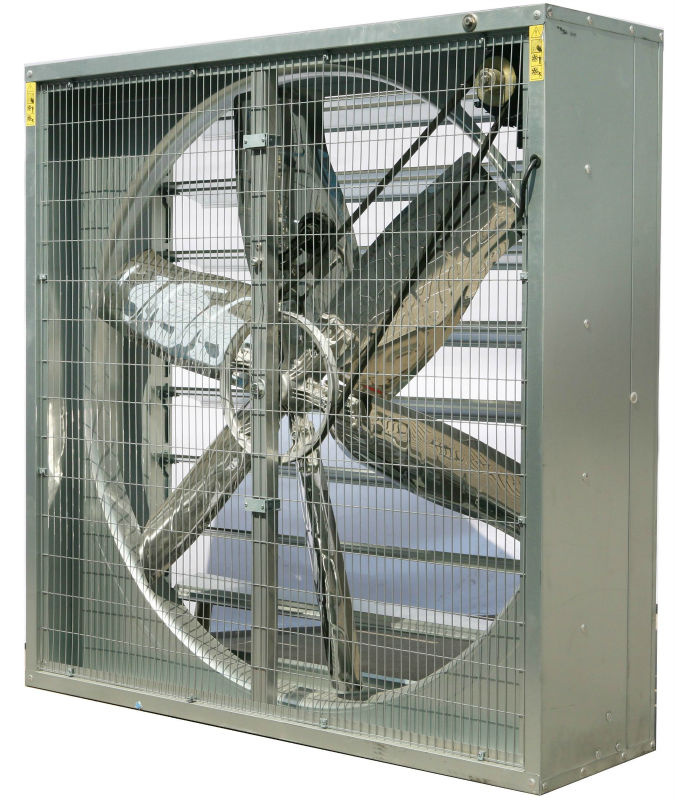

Greenhouse Circulation Fan:
Fan size: 1380mm× 1380mm× 450mm
Frame: Hot galvanized sheet, high anti-corrosive durability, sheet thickness1.0mm,
Zinkthickness 275G/M
2Motor: Simens motor, Other motor accordingly, CE certificate
Motor technical data: 1.1 Kw 380 V 50 Hz three phase
Motor RPM: 1440r/min
Noise: Less than 65dB
Blade diameter: φ 1270 mm
Blade No.: 6
Blade material: Mirror face stainless steel, avoid dust accumulation
Blade RPM: 460r/min
Blade instruction:
Weight difference between blades is less than 0.5k, blades will go through
Balance test after assembled which can assure steady running and even
Airflow.
Shutter:
Centrifugal system opening, spring close system, shutter can be opened at
90 degree.
Shutter No.: 10
Thickness of shutter: 1.5 mm, others 0.8 mm
Belt: Mistuboshi belt
Housing: Galvanized
Airflow: 43170m3/h
SHM Drop Hammer Style Ventilator |
Model |
Dia
blade/mm | Frequency/ HZ |
Air volume/ m3/h |
Power/kw |
Noise(db) |
Voltage/v | Size (mm) |
Motor Speed(r/min) |
SHM-
900 | 900 | 50 | 30000 | 0.55 | ≤ 64 | 380 | 1000x1000x400 |
≥ 1400
|
SHM-
30 | 1000 | 50 | 32500 | 0.75 | ≤ 64 | 380 | 1100x1100x400 |
≥ 1400
|
| SHM-1100 | 1100 | 50 | 38000 | 0.75 | ≤ 64 | 380 | 1220x1220x 400 | ≥ 1400
|
| SHM-50 | 1250 | 50 | 44000 | 1.1 | ≤ 64 | 380 | 1380x1380x400 | ≥ 1400
|
| SHM-1400 | 1400 | 50 | 55800 | 1.5 | ≤ 64 | 380 | 1530x1530x400 | ≥ 1400
|
