| Prod Model: |
1380mm |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Type: |
Ventilation Fan |
| Power Supply: |
Electric |
| Certification: |
CE |
| Material: |
Stainless Steel |
| Installation: |
Wall Mounted |
| Application: |
Greenhouse, Licestock, Poulty House and Workshop. |
| Power: |
1100W |
Product Description
Chracter:
1. High full pressure
2. Large air flow
3. Low noise
4. Small energy consumption
5. Stable operation and long life span
6. Automatic opening and closing function of jalousies
7. Dust and water proof

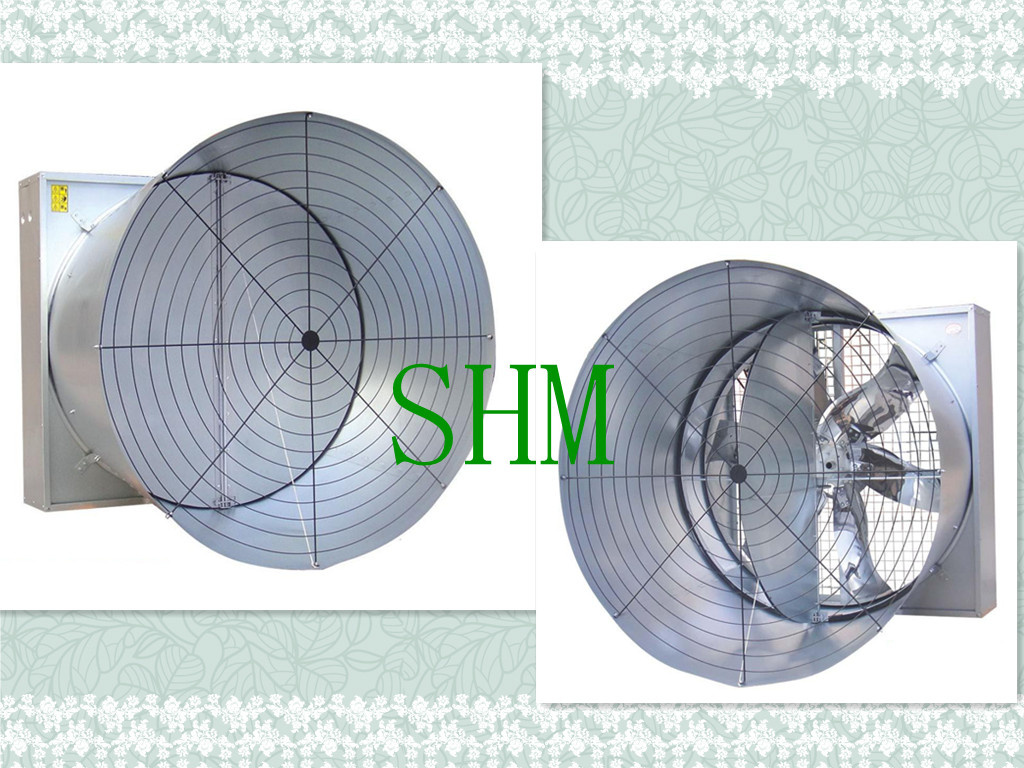

| CONE FAN TECHNICAL DATA(SHM-3) |
| Fan size | 1380mm × 1380mm × 1000mm(54" × 54" × 18" ) |
| Frame | Hot galvanized sheet, high anti-corrosive durability, sheet thickness1.0mm, zinkthickness 275g per square |
| Motor | Simens motor, Other motor accordingly, CE certificate |
| Motor technical data | 1100w 380 V 50 Hz three phase |
| Motor RPM | 1440r/min |
| Noise | 65db |
| Blade diameter | φ 1270 mm |
| Blade No | 6 |
| Blade material | Mirror face stainless steel, avoid dust accumulation |
| Blade RPM | 460r/min |
| Blade instruction | Weight difference between blades is less than 0.5k, blades will go through
balance test after assembled which can assure steady running and even airflow. |
| Shutter | Centrifugal system opening, spring close system, shutter can be opened at 90 degree. |
| Shutter No. | 10 |
| Thickness of shutter | 1.5 mm , others 0.8 mm |
| belt | Mistuboshi belt |
| Housing | galvanized |
| Airflow | 51020m3/h |
| CONE FAN TECHNICAL DATA(SHM-3) |
| Fan size | 1380mm × 1380mm × 1000mm(54" × 54" × 18" ) |
| Frame | Hot galvanized sheet, high anti-corrosive durability, sheet thickness1.0mm, zinkthickness 275g per square |
| Motor | Simens motor, Other motor accordingly, CE certificate |
| Motor technical data | 1100w 380 V 50 Hz three phase |
| Motor RPM | 1440r/min |
| Noise | 65db |
| Blade diameter | φ 1270 mm |
| Blade No | 6 |
| Blade material | Mirror face stainless steel, avoid dust accumulation |
| Blade RPM | 460r/min |
| Blade instruction | Weight difference between blades is less than 0.5k, blades will go through
balance test after assembled which can assure steady running and even airflow. |
| Shutter | Centrifugal system opening, spring close system, shutter can be opened at 90 degree. |
| Shutter No. | 10 |
| Thickness of shutter | 1.5 mm , others 0.8 mm |
| belt | Mistuboshi belt |
| Housing | galvanized |
| Airflow | 51020m3/h |
Qingdao Super Husbandry Machinery Co., Ltd is a famous enterprise engages in the study, designing and manufacturing of the husbandry ventilation equipments as well as the livestock and poultry ventilation. It is a hi-tech enterprise that enjoys the fast development speed, accompanied by the most effective technologies and top-ranking sales quantum.
Meanwhile, it has the ability of development, engineer designing, installing and servicing at the same time.
We have been supplying our products in China and overseas markets like the Asia, Middle East, Arab Countries, South America, etc. The excellent performance and services get a good reputation from the clients, we keep hard working to provide the better and better products and service for more and more customers
