| Prod Model: |
QOMA-VF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Direct Cooling |
| Power Supply: |
Electric |
| Application: |
Greenhouse, Licestock, Poulty House and Workshop. |
| Certification: |
ISO |
| Material: |
Stainless Steel |
| Installation: |
Wall Mounted |
| Type: |
Ventilation Fan |
| Power: |
750W or 1100W |
Product Description

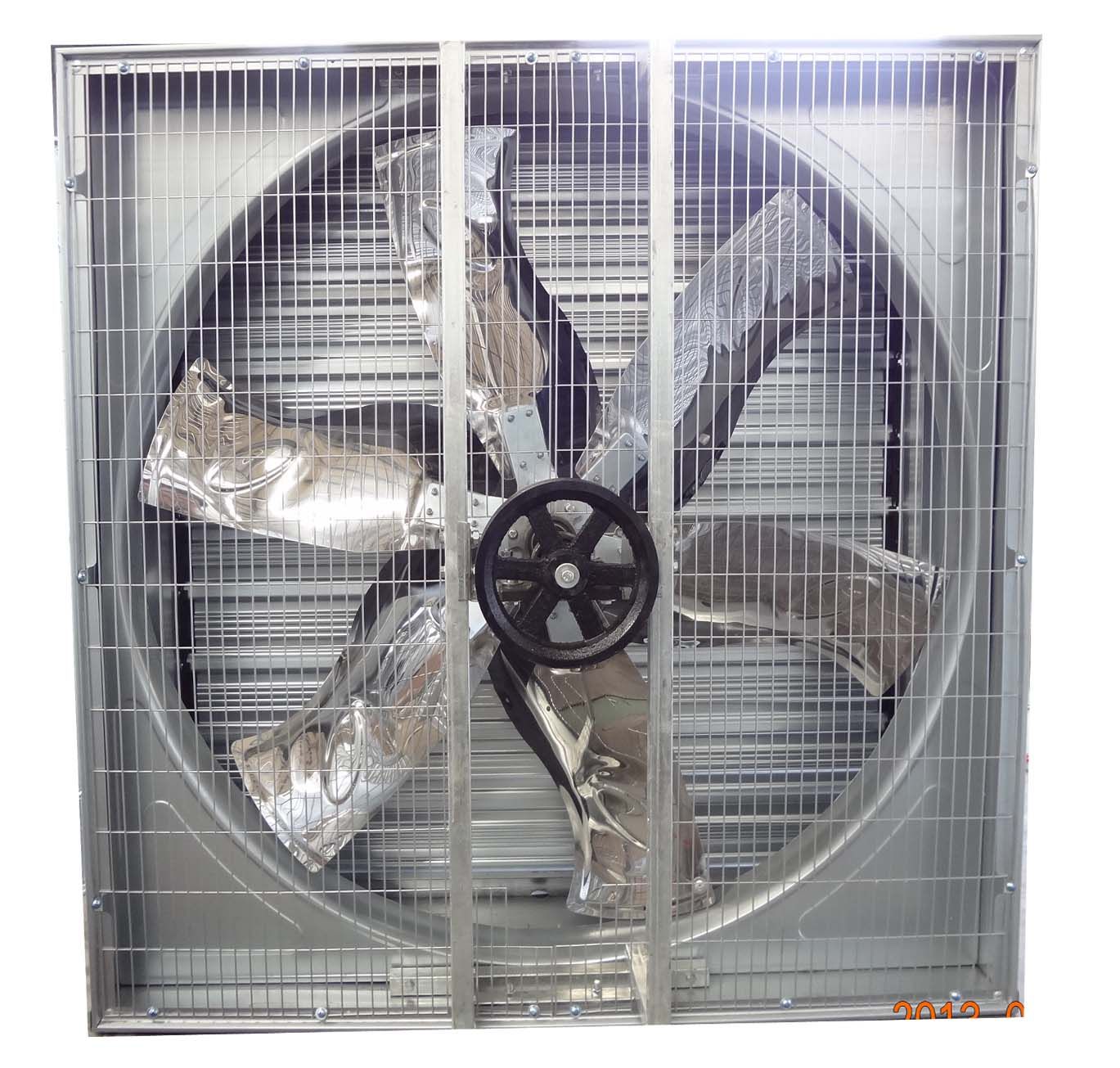

The Technical Data of 50inch ventilaton fan with more efficient
Fan frame: Hot galvanized sheet frame
Sheet thickness is 1mm(left and right is 0.8mm)
Zink thickness is 275G/M2
Fan blades: Germany-imported mirror face stainless steel,
Fan blades No: 6
Fan Blade RPM: 460r/min
Fan blade Thickness: 1.2mm
Fan blade surface finish grade.: BA
Blades all pass the balance test after assembled, which
Can assure steady running and even airflow during the operational life span of the life.
Fan motor: The high efficient and energy-saving Simens motor (others motor accordingly ).
Fan motor protection grade: IP55
Fan motor insulation class: F
Fan Motor technical data is: 1.1kw or 0.75kw, 380V, 50Hz, RPM is 1440r/min
Fan belts: Japanese Mitsubishi brand
Fan centrifugal system: Adopt high quality nylon PA66 to ensure the
Long service life. The fasteners of centrifugal
System all are copper rivets, wear-resisting and
No rust, flexible
Fan shutter: High strength hot-galvanized steel sheet, The middle shutter thickness is 1.5mm, others are 0.8mm, with a centrifugal system which can ensure he shutter Opens with the angle of 90 degree under all the condition To ensure the lowest air resistance and biggest air volume. When closing, the sealing can efficiently block light and Wind into the poultry farm house.
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for Longitudinal ventilation
|
Model |
Blade/mm |
Frequency/HZ |
Motor Speed(r/min) |
Capacity(cubic meters/h) |
power/w |
Noise(db) |
Voltage/v |
Size (mm) |
|
QOMA-CS/1000 |
910(36in) |
50 |
≥ 1400 |
20800 |
750 |
≤ 64 |
380 |
1000x1000x450 |
|
QOMA-CS/1380 |
1270(50in) |
50 |
≥ 1400 |
43170 |
1100 |
≤ 64 |
380 |
1380x1380x450
|
Qingdao Super Husbandry Machinery Co., Ltd is a famous enterprise engages in the study, designing and manufacturing of the husbandry ventilation equipments as well as the livestock and poultry ventilation. It is a hi-tech enterprise that enjoys the fast development speed, accompanied by the most effective technologies and top-ranking sales quantum.
Meanwhile, it has the ability of development, engineer designing, installing and servicing at the same time.
We have been supplying our products in China and overseas markets like the Asia, Middle East, Arab Countries, South America, etc. The excellent performance and services get a good reputation from the clients, we keep hard working to provide the better and better products and service for more and more customers
