| Prod Model: |
FP14000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sound Channel: |
2.1 |
| Voltage: |
AC 220V |
| Function: |
Post Amplifier |
| Conductive Mode: |
Td |
Product Description

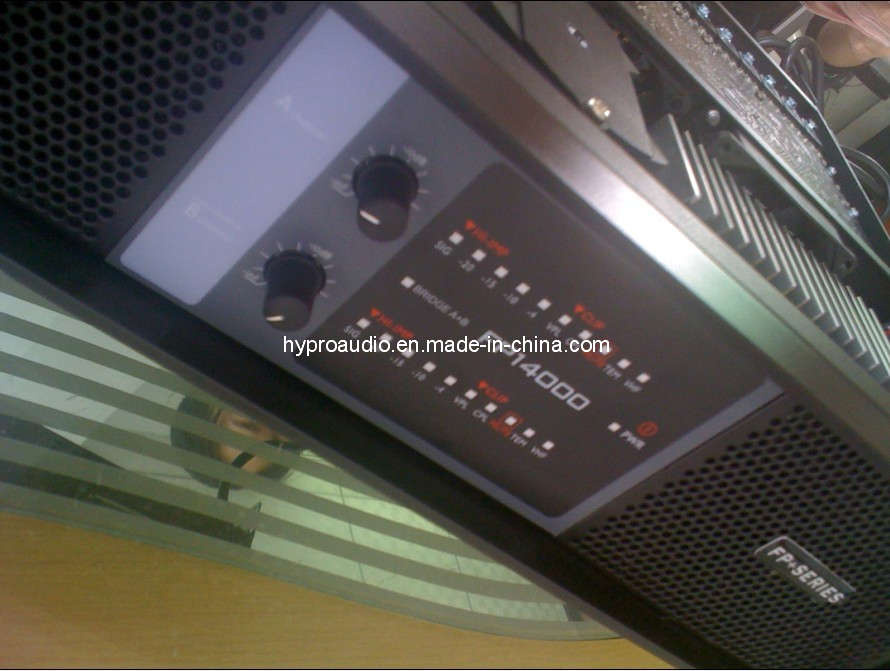

Power Amplifier
FP14000Q Specification:
Output Power: 20-20KHz, 1W with 1 KHz
8Ω Stereo Power(RMS): 2400WX2
4Ω Stereo Power(RMS): 4400WX2
2Ω Stereo Power(RMS): 7000WX2
8Ω Bridged Power(RMS): 8000W
4Ω Bridged Power(RMS): 14000W
Frequency Response(+o/-0.3dB, 1W/8Ω ): 20 Hz - 34 KHz
THD 20 Hz - 20 KHz for 1 W <0.1%
Signal-to-Noise Ratio: >112 dBA
Channel separation (Crosstalk) at 1 KHz: >70 dB
Input Connectors (per channel): 3-pin XLR, electronically balanced
Output Connectors (per channel): Binding Posts 2-pole
Class: TD
TourClass Protection: ACL, IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage 230 V / 115 V nominal: 130-265 V / 65-135 V selectable
Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance: 20 kOhm
Level adjustment (per CH. ): Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (WxHxD): 483x88x396mm
Packing dimension: 560x180x500mm
Net weight(kg): 15
Gross weight(kg): 18
Guangzhou Hao Yang PRO Audio Manufactory was founded in 1998, a number of its brands; Agent and a number of famous foreign brands, such as: The United States, Factory is a specialized professional stage doing fine speaker, professional audio equipment and digital audio system for R & D and production, sales in one of the producers; Warm service units in order to survive, quality assurance, stability, technological innovation and development, domestic and foreign customers for the cost-effective professional audio equipment.
Professional audio equipment factory targeted for its strong and took advantage of a variety of applications, According to the designers of the product adaptation to different characteristics of the product structure and configuration of the different functions of the formation of a series of widely used in high-end KTV, theaters, sports venues, outdoor performances, nightclubs, indoor SHOW it, the stage bars, Multi-function hall and many other places use the product line. Our products may not be the best, but our product is the most applicable, the most reliable, most cost-effective!
At the same time, in the bigger, stronger, do a good job in their own brand names outside the factory for domestic and foreign customers with OEM, ODM services for customers with special needs box processing services.
