| Prod Model: |
JPS-YP-1-120 |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania |
| Application: |
Water Heater |
| Pipe Material: |
Copper |
| Type: |
Flat Panel |
Product Description
Specifications
1. Simple structure, easy installation
2. Efficient heat insulation
3. Reliable performance
4. Good quality reasonable price
Specifications
1. Separated flat plate solar water heater
2. CE certified
3. Blue titanium flat plate solar collector
Separated flat plate solar water heater includes flat plate solar collector, pressurized water tank, working station and expansion vessel (for closed loop only). Working station would include pump, controller, valves and all the other accessories. It's a complete package.
Specification of flat plate solar collector
1. Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.
2. Blue titanium coating have very high absoption rate to ensure the high efficiency.
3. Whole-plate ultrasonic welding technology makes the flate plate solar collector more beautiful, efficient and durable.
4. Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.
Specification of split pressurized water tank
1. Inner tank: SUS 304-2B food grade stainless steel or porcelain enamel
2. Outer tank: Color steel or galvanized steel
3. Capacity: 100L, 150L, 200L, 250L, 300L
4. Heat preservation: 72 hrs
5. Testing pressure: 9 bar
Working principle
A) When the discrepant temperature of the flat plate solar collector and water tank reaches or not reaches the set valve, the controller shall start or shut the circulation pump automatically.
B) The circulation pump makes water circulate automatically.
C) In case the temperature of the water tank does not reach Tmax, then start the auxiliary heating device.
Features
1) Flat plate solar collector separates with the storage tank. The tank can be put anywhere of the house.
2) The flat plate solar collector can be put on flat roof/inclined roof/balcony.
3) Module design harmony with the building perfectly.
4) Intelligent control and automatic operation.
5) Multifunction: Bathing, washing, domestic heating.
|

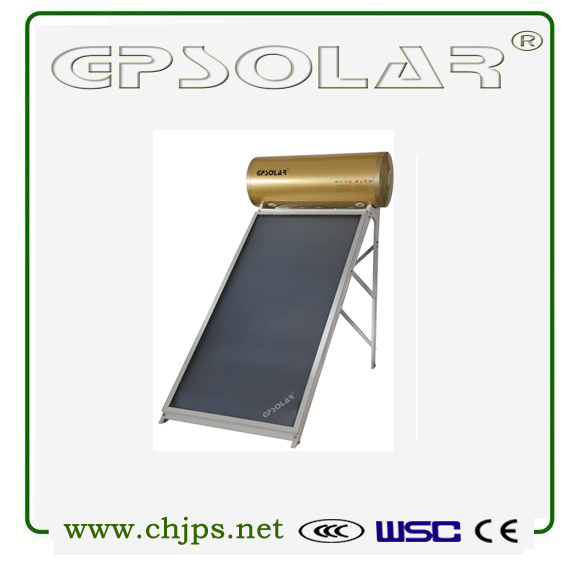

Integrated Flat-plate Solar Water Heater Series |
|
project |
JPS-YP-1-120 |
JPS-YP-1-250 |
|
water tank |
|
volume |
120L |
250L |
|
size |
ø 480*1240mm |
ø 480*2300mm |
|
inner tank |
SUS304/2B*δ 1.2mm |
SUS304/2B*δ 1.5mm |
|
outer tank |
galvanized sheet +painting |
|
weight |
32kg |
59kg |
|
working pressure project |
0.6Mpa |
0.6Mpa |
|
collector |
|
total area |
2m² |
4m² |
|
heat receiver material |
BLUETAC |
|
heat receiver area |
1.87m² |
3.75m² |
|
L*W*H(mm) |
2000*1000*90 |
2000*1000*90*2 |
|
heat absorption rate |
≥ 97% |
≥ 97% |
|
reflectivity |
≤ 4% |
≤ 4% |
|
working pressure |
0.6Mpa |
0.6Mpa |
|
plate core construction |
grille form |
|
Fittings |
|
working station |
JPS |
JPS |
|
bracket |
stainless steel/galvanized sheet coated |
Established in 2006, Zhejiang Jin PU Sen New Energy Technology Co., Ltd., is a science and technology enterprise that combines research, development, manufacture and marketing of solar thermal comprehensive. With registered capital of 20, 08 million, the research and development center of new energy enterprise was set up at the same year. In 2010, it was recognized as Hangzhou High and New Technology Enterprise and Hangzhou Eyas Project Enterprise. While the company is conducting self technology innovation, it also actively seeks long-term cooperation with large numbers of both domestic and foreign research institutes, and has established Fuyang Enterprise High-tech Research and Development Center and the Sino-America Enterprise High-tech Research and Development Center in succession, which enhances the company's continuity of research and development ability. At present, the company has owned 46 national patents, including 6 patents of invention.
The company mainly produces flat-plate solar water heaters, efficient micro-porous superconducting solar water heaters, vacuum tube collectors, heat pump-four dimensional integrated units, solar gas wall mounted integrated systems, solar steam generators, high efficient solar air-conditioners and other series products. Relying on our strong research and development strength, we have developed a series of efficient solar thermal comprehensive utilization products with wide applications, and have become one of the earliest domestic manufacturers that have realized the independent research, development and production of pressurized solar water heaters. The products are widely exported to the United States, Europe, Middle East, Southeast Asia, and other countries.
As "science and technology reshape life, and energy saving creates wealth", the company adheres to the enterprise tenet of "technology first, caring for people, green energy and benefiting the society", takes "to build a new energy industry and to create a technology-based brand" as the goal, and strictly enforces the ISO9001: 2008 quality system, the ISO14001CE and other international standards, striving to create a first-class "new energy" enterprise and create a new "green home full of golden sunlight".
