| Prod Model: |
10", 20", 30", 40" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cartridge Installation: |
Vertical Lifting |
| Filter Bag Environment: |
Temperature |
| Filter Bag Filter: |
The Filter Type |
| Filter Bag Sectional Shape: |
Round Bag |
| Usage: |
Liquid Filter |
| Material: |
PP |
| Cartridge Filter: |
Polypropylene |
| Length: |
10", 20"30"40" or OEM |
| Od: |
2.5", 4.5" |
| Temperature: |
<90c |
| Medium Material: |
Polypropylene |
| Type: |
Polypropylene |
Product Description

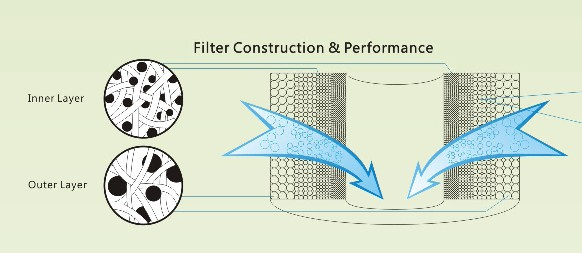

pp melt blown filter cartridge is once formed by heat melting filum from pure polypropylene, which is suitable for prefiltering the high-lustration liquid. And our pp melt blown filter cartridge is usually used to security filter for ultra filtration membrane.DescriptionThe pp filter cartridge is constructed by three layers of three of heat melting polypropylene. Compared to monolayer, the application life of PP melt blown filter cartridge with three layers is much longer. Therefore, the maintenance of the filtes can be cut down a lot Using the right heating way for PP fibre, it can reduce the filtering resistance a lot and enlarge the water flow much The uniform space of fibre can achieve an excellent filtering effect As the filter cartridge is only made from polypropylene, the resistance to chemical reagents for both organic solvent and inorganic solvent are all good
Application
*Filtering for plating solution of electronic products,waste water,liquid medicine and pure water
*Prefiltering for various ultra filtration
*Filtering for medicament,impregnant and water treatment in chemical field
*Filtering during the production in brewage and drink fields
*Pr-filtering before RO and UF,various treatment for industrial water.

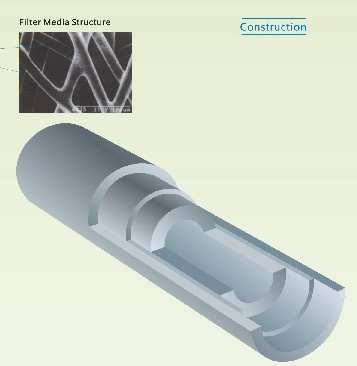

Structure

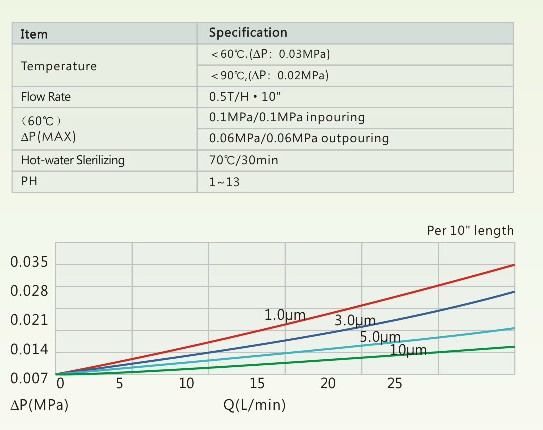

Specification
If you are interested in our pp melt blown filter cartridge, please feel free to contact me.
|
precision |
length |
od |
id |
inner core |
surface |
|
1um |
127mm |
45mm |
28mm |
no core |
flat |
|
5um |
250mm |
55mm |
30mm |
with core |
orange |
|
10um |
254mm |
63.5mm |
20mm |
|
embossing |
|
20um |
500mm |
115mm |
|
|
point |
|
30um |
508mm |
|
|
|
|
|
50um |
750mm |
|
|
|
|
|
|
762mm |
|
|
|
|
|
|
1000mm |
|
|
|
|
|
|
1016mm |
|
|
|
|
The majority of the product line is based on depth filtration, micro-filtration, ultra filtration, and RO technologies which include PP melt blown cartridge filter, pleated cartridge filter, thread wounding filter, RO membrane modules. The filter element for micro-filtration enables water treatment, chemical, food & beverage, pharmaceutical and pharmaceutical companies to optimize their manufacturing productivity and quality.
