| Prod Model: |
10", 20", 30", 40" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cartridge Installation: |
Vertical Lifting |
| Filter Bag Environment: |
Temperature |
| Filter Bag Sectional Shape: |
Round Bag |
| Usage: |
Liquid Filter |
| Material: |
PP |
| Cartridge Filter: |
Polypropylene |
| Filter Bag Filter: |
Polypropylene |
| Length: |
10", 20"30"40" or OEM |
| ID: |
28mm, 30mm 20mm |
| Od: |
63.5mm 115mm |
| Medium Material: |
Polypropylene |
| Type: |
Pocket Filter |
Product Description

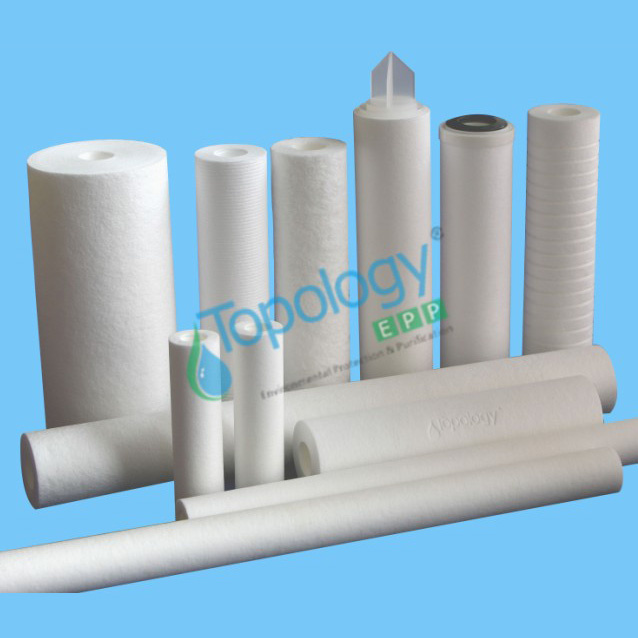

PP melt blown filter cartridge is once formed by heat melting filum from pure polypropyene, which is suitable for pre-filtering the high-lustration liquid. It is usually used to security filter for ultra filtration membrane.
Characteristic:
-The filter cartridge is constructed by three layers of three of heat melting polypropylene. Compared to monolayer, the application life of PP melt blown filter cartridge with three layers is much longer. Therefore, the maintenance of the filtes can be cut down a lot.
-Using the right heating way for PP fibre, it can reduce the filtering resistance a lot and enlarge the water flow much.
-The uniform space of fibre can achieve an excellent filtering effect
-As the filter cartridge is only made from polypropylene, the resistance to chemical reagents for both organic solvent and inorganic solvent are all good
Application:
-Filtering for plating solution of electronic products, waste water, liquid medicine and pure water
-Pre-fitlering for various ultra filtration
-Filtering for medicament, impregnant and water treatment in chemical field
-Filtering during the production in brewage and drink fields
-Pre-filtering before RO and UF, various treatment for industrial water
Specification:
OD: 55mm, 61mm, 63mm, 65mm, 115mm
ID: 28mm, 30mm
Length: 5", 10", 20", 30", 40"
Normal pore size: 1μ M, 5μ M, 10μ M, 20μ M, 30μ M, 50μ M, 75μ M, 100μ M
Cartridge Adapter:
DOE: Double open end
SOE: Single open end-222/flat, 222/fin, 226/flat, 226/fin
*Customized filters are also available and be handle as special order
| Products Code: |
| Item | Precision | length | OD | ID | Inner Core | Surface | Code Eg. |
| TPM | 01:1μm | 05:127±1.5mm | A:45mm | 1:28mm | N:no core | F:flat | TPM-01-10M-25-1-N-F |
| 05:5μm | 10M:250±1.5mm | B:55mm | 2:30mm | W:with core | O:orange |
| 10:10μm | 10I:10"(254±1.5mm) | 25:2.5"(63.5mm) | 3:20mm |
| E:embossing |
| 20:20μm | 20M:500±1.5mm | 45:4.5"(115mm) |
|
| P:point |
| 30:30μm | 20I:20"(508±1.5mm) |
|
|
|
|
| 50:50μm | 30M:750±2mm |
|
|
|
|
| 30I:30"(762±2mm) |
|
|
|
|
| 40M:1000±2mm |
|
|
|
|
| 40I:40"(1016±2mm) |
|
|
|
|
The majority of the product line is based on depth filtration, micro-filtration, ultra filtration, and RO technologies which include PP melt blown cartridge filter, pleated cartridge filter, thread wounding filter, RO membrane modules. The filter element for micro-filtration enables water treatment, chemical, food & beverage, pharmaceutical and pharmaceutical companies to optimize their manufacturing productivity and quality.
