| Prod Model: |
10", 20", 30", 40" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
PP |
| Filter Bag Filter: |
The Filter Type |
| Cartridge Installation: |
Vertical Lifting |
| Filter Bag Environment: |
Temperature |
| Filter Bag Sectional Shape: |
Round Bag |
| Usage: |
Liquid Filter |
| Cartridge Filter: |
Polypropylene |
| Length: |
10", 20"30"40" or OEM |
| Od: |
2.5", 4.5" |
| Flow Rate: |
0.3t/H 10" |
| Type: |
Polypropylene |
Product Description
Characteristic:

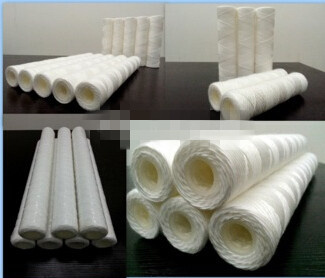

TTW PP String Wound Filter provides an excellent performance in a variety of industrial processing to remove particles from the liquids. Ex. Clarification, burden reducing for the final filtration, pre-filtration in pharmaceutical, food and beverage fields.
Constructed of polypropylene, cotton string, Provides broad thermal compatibility as well as chemical compatibility.
Perfect practical retention capacity.
String tension decreased gradually from the central layer to surface layer.
Application:
Electrical plating,
DI & RO pretreatment
Clarification for chemical solution
Water treatment for boiler
Drink water process
Food & beverage
Specification:
Normal pore size: 1μ M, 5μ M, 10μ M, 20μ M, 30μ M, 50μ M, 75μ M, 100μ M
OD: 55mm, 61mm, 63mm, 65mm, 115mm
ID: 28mm, 30mm
Length: 5", 10", 20", 30", 40"
Cartridge Adapter: Double open, Single open-222/Flat, 222/Fin, 226/Flat, 226/Fin
*Customized filters are also available and be handle as special order
| Item | Material | Precision | length | Inner Core Material | OD | ID | Code Eg. |
| TTW | P:PP yarn | 01:1μm | 10M:250±1.5mm | P:PP | 25:2.5"(63.5mm) | 1:28mm | TTW-P-01-10M-P-25-1 |
| C:Cotton yarn | 05:5μm | 10I:10"(254±1.5mm) | S:304 | 45:4.5"(115mm) | 2:30mm |
| 10:10μm | 20M:500±1.5mm | T:316 |
|
|
| 20:20μm | 20I:20"(508±1.5mm) | F:Stainless iron |
|
|
| 30:30μm | 30M:750±2mm |
|
|
|
| 50:50μm | 30I:30"(762±2mm) |
|
|
|
| 75:75μm | 40M:1000±2mm |
|
|
|
| 1H:100μm | 40I:40"(1016±2mm) |
|
|
|
The majority of the product line is based on depth filtration, micro-filtration, ultra filtration, and RO technologies which include PP melt blown cartridge filter, pleated cartridge filter, thread wounding filter, RO membrane modules. The filter element for micro-filtration enables water treatment, chemical, food & beverage, pharmaceutical and pharmaceutical companies to optimize their manufacturing productivity and quality.
