| Prod Model: |
JJ-4-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Cabinet: |
Aluminum Coated Zinc Plate |
| Size: |
1175X575X320mm |
| Usage: |
Industry |
| Purifying Technology: |
HEPA |
| Air Volume: |
>400m³/h |
| Power Source: |
Electrical |
| Type: |
HEPA Filter |
| Certification: |
ISO |
| Operating Principle: |
Active |
| Structure: |
Ceiling |
Product Description

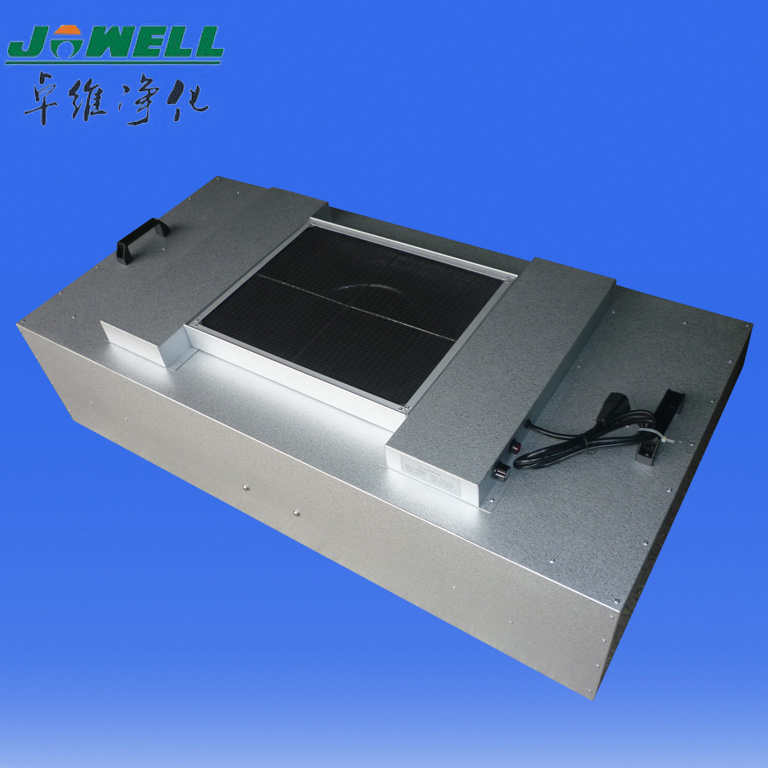

FFU
Fan Filter Unit is a high clean instrument for clean room, especially for semiconductor, LCD industry. It is installed on the ceiling and it matches for the requirement of big quantity in the clean room. Customized design is available.
Features:
These filter modules were developed to meet industry requirements For large cleanrooms with individually conducted modules. Each unit is Entirely factory-sealed, with all metal to metal joints bonded to Prevent leakage. The low profile housing and light weight of the modules Make for easy installation. The modules are typically installed in heavy Duty ceiling grids, suspended from the building structure. Housings with Four suspension points for attachment of hangers are standard for gasket Seal applications. They are available with custom efficiencies ranging up To 99.9995% on 0.3 micron size particles and come in a variety of sizes, Offering flexibility for any installation.
|
Model |
K-F2AHG |
K-F2BHG |
K-F2CHG |
|
Dimension |
mm |
1175*575*230 |
1175*1175*350 |
575*575*220 |
|
Air flow |
M3 /h |
1400 |
2350 |
800 |
|
External static pressure |
Pa |
98 |
98 |
98 |
|
Main body |
- |
Standard |
Galvanized sheet and stoving varnish(0.8) |
|
option |
Stainless steel(SS304) |
|
Electrolytic sheet |
|
Galvanized sheet iron |
|
Aluminum alloy sheet |
|
Power supply |
Standard |
V/Hz |
220V 50/60Hz |
|
Option |
V/Hz |
Pls contact us if you have any other requirement about the power. |
|
Filter |
Efficiency |
- |
HEPA Over 99.99% @ 0.3um |
|
- |
ULPA Over 99.9995% @ 0.1um |
|
Frame |
- |
Galvanized sheet and stoving varnish |
|
Power dissipation |
W |
120 |
245 |
90 |
|
Weight |
Kg |
25 |
45 |
15 |
|
Shock |
m/s 2 |
≤0.4 |
≤1.1 |
≤0.4 |
|
Noise |
Db(a) |
≤55 |
≤55 |
≤55 |
|
Option |
- |
Differential draft gauge;Remote control; Duct flange for suction air; Pre-filter |
