| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Industry |
| Purifying Technology: |
HEPA |
| Type: |
HEPA Filter |
| Certification: |
ISO |
| Structure: |
Ceiling |
Product Description

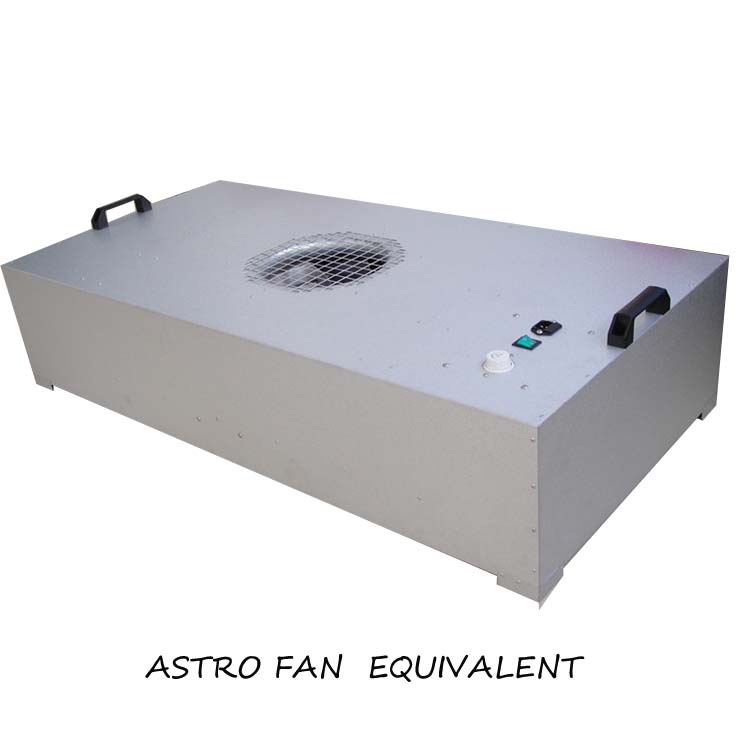

FFU, short for Fan Filter Unit, which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.
FFU provides clean air as well as particle controlling. These series, the general dimensions of which are 2× 4 and 4× 4 inches, are often installed on the ceiling of clean rooms.
Application: Used in clean rooms ranging from class 100, 000 to 10, they can come into being ultra-clean assembly line, clean work office, clean booth, clean closet and etc.
Nice appearance, human centered design---Adding stainless handle, easy installation and delivery, and perpendicular design.
High performance and low noise fans---Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spreads evenly, stable air velocity, low consumption, low running cost, service life can reach to longer than 80 thousand hours.
Light, thin shape---Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available.
Flexible, diversified design---Except for standard items, custom made FFU is available, such changings as filter nets, the materials of shell and etc...
Concerning, convenient design---Pedals are designed in the body, which makes it convenient to install and repair.
Premium Current-averaging design of the inside---Ensures deviation of the blowing side lower than ± 10%.
|
Model |
JJ-4x2 |
JJ-4x4 |
JJ-2x2 |
|
Dimension |
mm |
1175*575*250 |
1175*1175*350 |
575*575*250 |
|
Air flow |
M 3 /h |
1400 |
2350 |
800 |
|
External static pressure |
Pa |
98 |
98 |
98 |
Main body |
- |
Standard |
Cold rolled steel plate with powder coated |
option |
Stainless steel(SUS304)
Galvanized steel |
|
Power supply |
Standard |
V/Hz |
220V 50/60Hz |
|
Option |
V/Hz |
Pls contact us if you have any other requirement about the power. |
Filter |
Efficiency |
- |
HEPA Over 99.99% @ 0.3um |
|
- |
ULPA Over 99.9995% @ 0.1um |
|
Frame |
- |
Aluminum |
|
Power dissipation |
W |
120 |
245 |
90 |
|
Weight |
Kg |
25 |
45 |
15 |
|
Shock |
m/s 2 |
≤0.4 |
≤1.1 |
≤0.4 |
|
Noise |
Db(a) |
≤55 |
≤55 |
≤55 |
|
Option |
- |
Differential draft gauge; Remote control; Duct flange for suction air; Pre-filter |
Dongguan Zhuowei Purification Technology Co., Ltd. is a high-tech enterprise which specializes in design, manufacture, sale, installation and inspection of air filters and purification equipments. We have been increasingly gathering experience of air filter industry since the foundation in 2002, and adopted advanced technology, machineries and materials to produce primary, medium and HEPA air filters and purification equipments. At present, we are enjoying a high reputation among air purification field.
With the progressive development of our company, we have had our own brand and more than fifty kinds of purification products put into mass production. In addition, we have been sanctioned by ISO9001 and IS014001. Our tenet is "quality first, credit first, reasonable price and good service". Zhuowei has won over the recognition of customers due to its high quality and excellent after-sale service.
Zhuowei: To stand steady above all others; To establish the great work with great prestige. We are heading forward the world with innovation of every staff.
