| Prod Model: |
JJ-4-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Cabinet: |
Aluminum Coated Zinc Plate |
| Size: |
1175X575X320mm |
| Usage: |
Industry |
| Purifying Technology: |
Cleaning Room |
| Air Volume: |
>400m³/h |
| Power Source: |
Electrical |
| Type: |
HEPA Filter |
| Certification: |
ISO |
| Operating Principle: |
Active |
| Structure: |
Hanging |
Product Description

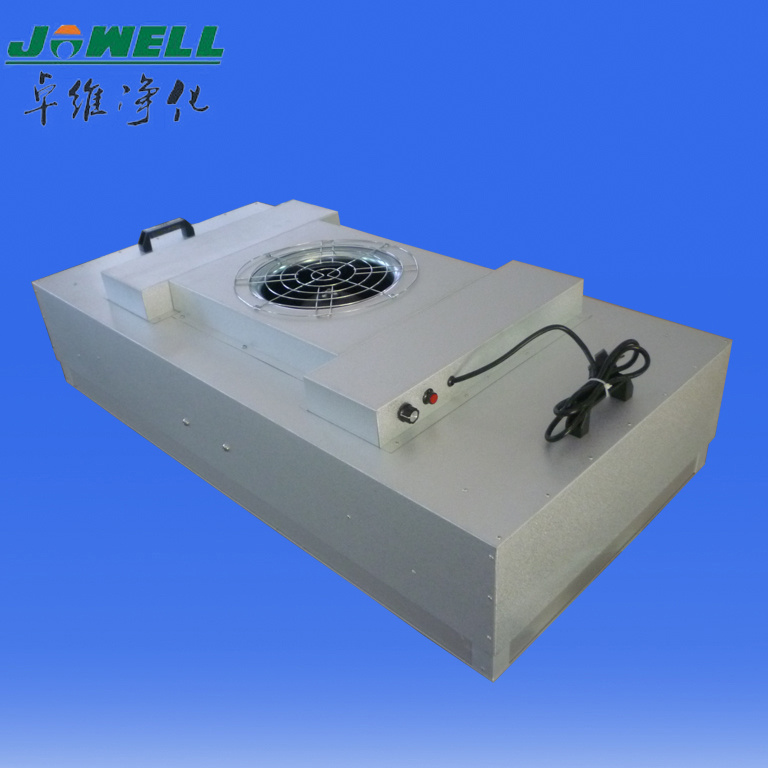

FFU is short for Fan Filter Unit, which is a kind of air supply device that has motive power and filtering function. Air is brought in top of FFU as passing through HEPA Filters, filtered air comes out of outlet evenly; Modules connection running.
FFU provides clean air and particle controlling. FFU is installed on ceiling of clean room (25%to100% cover rate), general dimension is 2'*4' or 4'*4'.
Application: Applying in class 10000 to class 10 of clean room, even forming ultra clean line, clean closet and etc.
1. Nice appearance, human centered design
Add Stainless handle, easy installation and delivery, perpendicular design;
2. High performance and low noise fans
Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spread evenly, outlet air velocity evenly and stable, low consumption, low running cost, service life can reach to longer than 80 thousand hours;
3. Light, thin shape
Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available;
4. Flexible, diversified design
Except for standard items, custom made is available, such as choosing kinds of filter net and materials of shell;
5. Concerning, convenient design
Pedals are designed in the body, which makes it convenient to install and repair;
6. Premium Current-averaging design of the inside
Ensures deviation of the blowing side lower than ± 10%
|
Model |
K-F2AHG |
K-F2BHG |
K-F2CHG |
|
Dimension |
mm |
1175*575*230 |
1175*1175*350 |
575*575*220 |
|
Air flow |
M 3 /h |
1400 |
2350 |
800 |
|
External static pressure |
Pa |
98 |
98 |
98 |
|
Main body |
- |
Standard |
Galvanized sheet and stoving varnish(0.8) |
|
option |
Stainless steel(SS304) |
|
Electrolytic sheet |
|
Galvanized sheet iron |
|
Aluminum alloy sheet |
|
Power supply |
Standard |
V/Hz |
220V 50/60Hz |
|
Option |
V/Hz |
Pls contact us if you have any other requirement about the power. |
|
Filter |
Efficiency |
- |
HEPA Over 99.99% @ 0.3um |
|
- |
ULPA Over 99.9995% @ 0.1um |
|
Frame |
- |
Galvanized sheet and stoving varnish |
|
Power dissipation |
W |
120 |
245 |
90 |
|
Weight |
Kg |
25 |
45 |
15 |
|
Shock |
m/s 2 |
≤0.4 |
≤1.1 |
≤0.4 |
|
Noise |
Db(a) |
≤55 |
≤55 |
≤55 |
|
Option |
- |
Differential draft gauge;Remote control; Duct flange for suction air; Pre-filter |
