| Prod Model: |
touch lcd display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
10.1" |
| Inputs: |
HDMI, VGA, DVI, a/V, YPbPr |
| Frame: |
Plastic Frame |
| Ratio: |
16:9 |
| Bracket: |
Foldable |
| Resolution: |
1366X768 |
| Touchscreen: |
Projected Capacitive Touchscreen |
| Operation System: |
Window 7,Window 8 |
| Brightness: |
450CD/, |
| Type: |
TFT |
| Application: |
POS, Computer, Ad, Camera |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Screen Size: |
10.1" |
| Interface Type: |
DVI, HDMI, VGA, YPbPr, AV |
Product Description

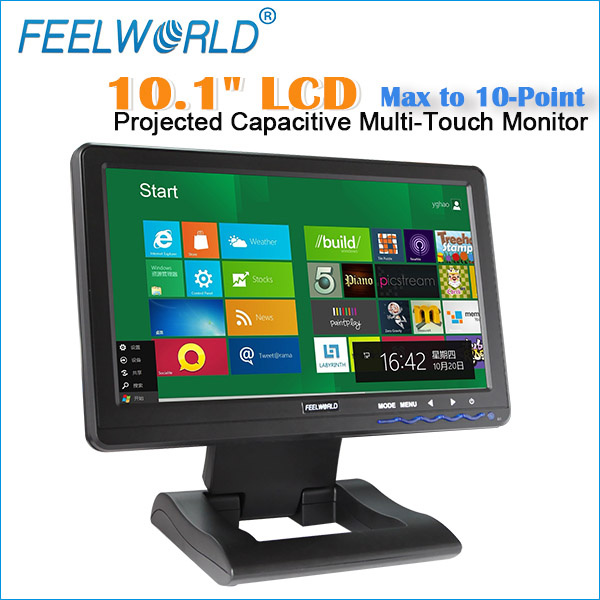

FEELWOLRD new 10.1 widescreen projected capacitive touch lcd display with hdmi, dvi vga av input operation system window 7 and 8
With the 10-point projected capacitive touch technology, W101 delivers lighting fast, responsiveness to deliver the best multi-touch experience possible. W101 allows anyone to enjoy the best of the interactivity. Supports panel, wall, desktop and VESA arm mounting
Function:
Touch Function projected capacitve Touch Panel √
Video Input VGA √ √
CVBS √ √
HDMI optional optional
DVI optional optional
YPbPr optional optional
Svideo optional optional
Audio Input √ √
Audio Monitoring √ √
Desktop Folded Stents √ √
Installation (VESA) √ √
|
Specification |
|
Description |
FEELWOLRD new 10.1 widescreen projected capacitive touch lcd display with hdmi,dvi vga av input for operation system window 7 and 8 |
|
Model: |
FW101-CT |
|
Brightness: |
450cd/m² |
250cd/m² |
|
Dot Resolution: |
1024*600 |
1366*768 |
|
Touch Interface: |
USB |
|
Contrast Ratio: |
500:1 |
|
Aspect Ratio: |
16:9 |
|
Backlight: |
LED |
|
Viewing Angle: |
70°/70°(L/R) 50°/70°(U/D) |
|
Optical characteristics: |
≥ 80% |
|
Support System: |
Win7/Win8 |
|
Tapping durability: |
≥ 1 million times |
|
Hardness: |
≥ 3H |
|
Max to: |
10-Point |
|
Input Voltage: |
DC9-15V |
|
Input Signal: |
VGA,Video1,Video2,Audio,HDMI,YPbPr |
|
HDMI Format: |
480i,480p,576i,576p,720p,1080i,1080p(50/60Hz) |
|
Mounting Process |
Foldable Stand Bracket and VESA 75*75mm |
|
Power Consumption: |
≤ 6W |
|
workingTemperature: |
-0 °C~ 60 °C |
|
storage Temperature: |
-10 °C~ 70 °C |
|
Unit Size: |
255L×163W×34H mm |
|
Unit Weight: |
1040 g |
Founded in 2006, Shenzhen Feelworld Technology Co., Ltd is a professional high-tech enterprise engaged in research and development, design, production and marketing of mini LCD Monitors, touch screen monitor, open frame monitors.
Attributing to our strict quality control in component selection and performance inspection, we have gained an excellent reputation from our worldwide customers. Certified by CE, FCC, CCC, and E-MARK standards, the performance of our products meets or exceeds the advanced world standard.
Driven by our powerful Research & Development staff, we have the ability to design and machine LCD video monitors as per your various requirements. It is free to adopt talents establishing a high-qualified R&D group with abundant experience to back up strongly for ensuring product performance and quality.
Now our products are widely used in Europe and North America, and we have cultivated very successful communications with our valued customers. With the help of their great ideas and feedback regarding marketing, design, and new product construction, we are consistently growing as the world leader in LCD display technology.
