| Prod Model: |
A5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
HD LCD Display |
| Resolution: |
800*480 |
| DOT Pitch: |
0.05(W) X 0.15 (H) |
| Contrast: |
500:1 |
| Backlight: |
LED |
| Construction: |
Durable Aluminum Construction |
| Inputs: |
HDMI,Sdi |
| Outputs: |
Sdi,Earphone Jack |
| Input Voltage: |
DC7V-18V |
| Install Way: |
1/4"-20 Thread Socket |
| Type: |
TFT |
| Application: |
Field Monitor, Camera Monitor |
| Aspect Ratio: |
16:9 |
| Widescreen: |
Widescreen |
| Feature: |
LED Backlight Display |
| Response Time: |
10ms |
| Optimum Resolution: |
800X480 |
| Screen Size: |
5" |
| Interface Type: |
HDMI,Sdi |
Product Description

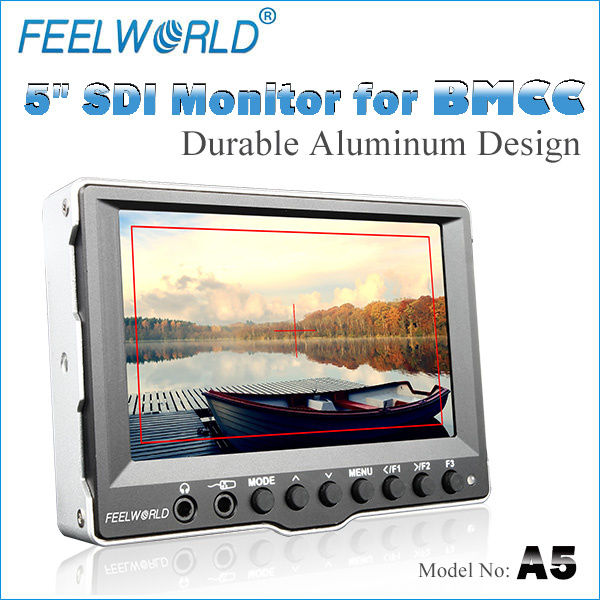

5 inch 720p hd lcd display with Red-outline peaking focus
Now! It's time to come to our new LCD Monitor 5 inch Provides SDI input and output functions, which could identify HD & SD signals automatically. A5 monitor adopt high-end image processing chip, professional 5'' LCD panel with 800x480 resolution, high brightness and high contrast characteristics.
Also the wide viewing angle (H.120°/V.140°) could achieve multi-angle picture watching and avoid image grey reversal.
The A5's frame is constructed with durable aluminum making it perfect for the professional video shooting . Its solid design ensures the A5 performs at its best even in the roughest terrains, ensuring the monitor's reliability and longevity.
Advance Features:
1.Camera 5D II Mode
2.Peaking Focus Assist(1.Red-outline peaking focos based on real view,2.Red-outline peaking focus based on Mono background)
3.Pixel-to-Pixel
4.Exposure(Zebra)
5.Histogram
6.False Colors
7.Check Field(Red,Green,Blue,Mono)
8.Centre Marker
9.Screen Marker(80%,85%,90%,93%,96%)
10.Mirror image(L/D,L/R)/Freeze
Parameters:
| Description | 5" SDI HD Field Monitor Aluminum |
| Model | A5 |
| Resolution | 800x480 |
| Dot pitch | 0.05(W) x 0.15 (H) |
| Aspect ratio | 16:9 |
| Brightness | 350cd/m² |
| Contrast | 500:1 |
| Backlight | LED |
| Response time | 10ms |
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) |
| Inputs | HDMI,SDI |
| Outputs | SDI,Earphone jack |
| SDI Support Mode | ITU-R BT.656 | 576i |
| SMPTE-125M | 480i |
| SMPTE-274M | 1080i(60/59.94/50)
1080p(30/29.97/25/24/24fps/23.98/23.98fps) |
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) |
| SMPTE-424M | 1080i(60/59.94/50)
1080p(60/59.94/50) |
| HDMI Support Mode | 480i / 576i / 480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p(60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps) |
| Power Consumption | ≤10W |
| Input Voltage | DC7V-18V |
| working Temperature | 20ºC ~ 55ºC |
| storage Temperature | 30ºC ~ 65ºC |
| Install Way | 1/4"-20 Thread Socket |
| Unit Size | 134L × 97W ×28.5H(mm) |
| Unit Weight | 475g |
| Standard Accessories |
| Sunshade |
| F970 Battery Plate |
| HDMI Cable |
| Hot Shoe Mount |
| Operation Manual |
