| Prod Model: |
FW-101CT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
10.1 |
| Type: |
Capacitive |
| Interface Type: |
VGA , YPbPr ,HDMI , Sks for AV1 AV2 |
| Resolution: |
1024 X 768 |
| Model Number: |
Fw101CT |
| Brightness: |
450CD/M2 |
| Contrast Ratio: |
500:1 |
| Aspect Ratio: |
16:9 |
| Backlight: |
LED |
| Products Name: |
Monitor LCD Touch Screen |
| Screen Type: |
Capacitive |
Product Description

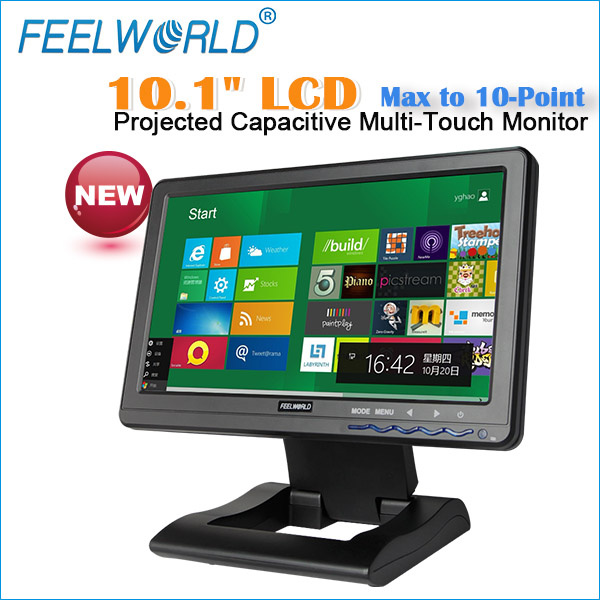

10.1" hdmi monitor lcd touch screen multi capacitive support Window7 and 8
With the 10-point projected capacitive touch technology, W101 delivers lighting fast, responsiveness to deliver the best multi-touch experience possible. W101 allows anyone to enjoy the best of the interactivity. Supports panel, wall, desktop and VESA arm mounting
Description10.1" LCD Projected Capactitive Multi LCD Touch Monitor
Model: FW101-CT
Brightness: 450cd/m² 250cd/m²
Dot Resolution: 1024*6001366*768
Touch Interface: USB
Contrast Ratio: 500: 1
Aspect Ratio: 16: 9
Backlight: LED
Viewing Angle: 70° /70° (L/R) 50° /70° (U/D)
Optical characteristics: ≥ 80%
Support System: Win7/Win8
Tapping durability: ≥ 1 million times
Hardness: ≥ 3H
Max to: 10-Point
Input Voltage: DC9-15V
Input Signal: VGA, Video1, Video2, Audio, HDMI, YPbPr
HDMI Format: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p(50/60Hz)
Mounting ProcessFoldable Stand Bracket and VESA 75*75mm
Power Consumption: ≤ 6W
WorkingTemperature: -0° C~60° C
Storage Temperature: -10° C~70° C
Unit Size: 255L× 163W× 34H mm
Unit Weight: 1040 g
Standard AccessoriesPacking Details
Bracket(Installed on the machine)Box size31.7x28.6x9.2CM
SKS CordPer box G. W. 4kgs
Remote ControlPer Carton5pcs
VGA+USB CableCarton Size47.5x29.6x37CM
Touch Driver DiscN. W. 15kgs/carton
Home Power AdapterG. W. 16kgs/carton
Operation Manual
