| Prod Model: |
J-AR-3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel |
| Size: |
1240X3000X2050 |
| Usage: |
Industry |
| Purifying Technology: |
Cleaning Room |
| Air Volume: |
>400m³/h |
| Power Source: |
Electrical |
| Type: |
HEPA Filter |
| Certification: |
ISO |
| Structure: |
Floor Standing |
Product Description

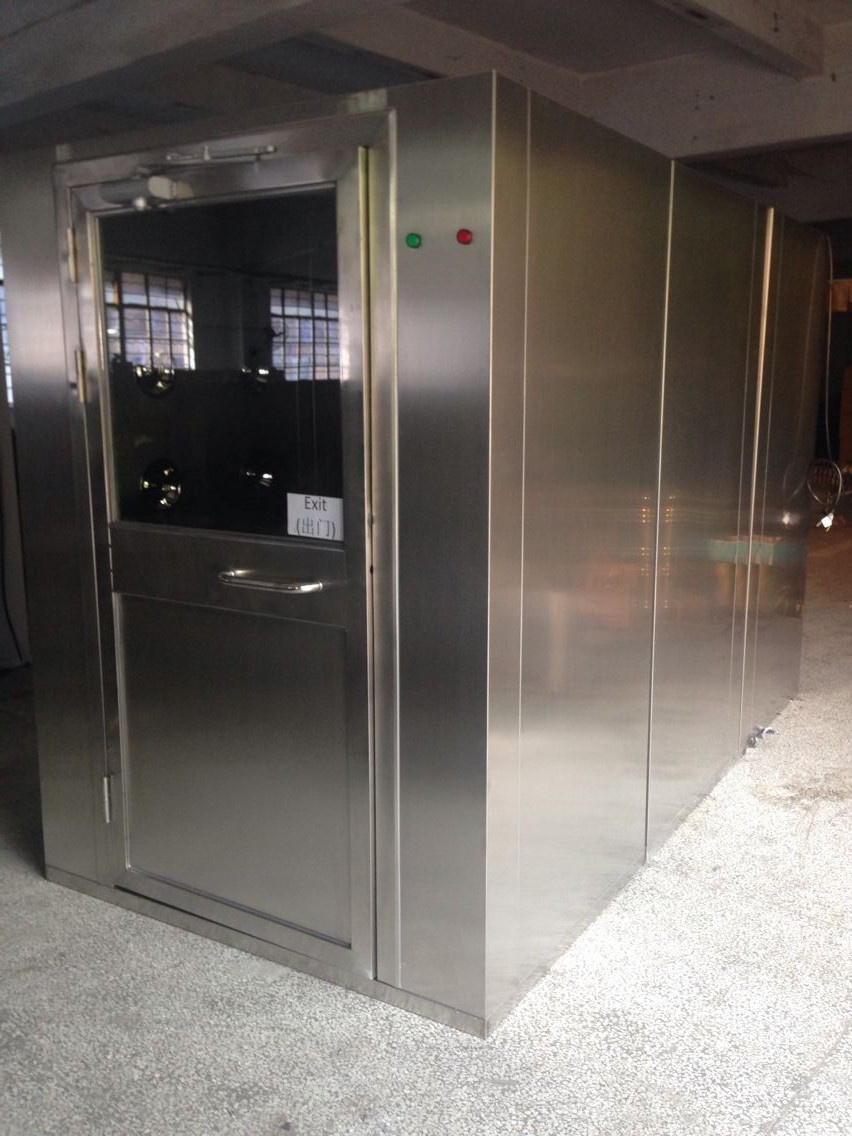

Air Shower, Air Shower Room
Air shower is a necessary passage for person or goods entering into the clean room in order to minimize contamination. As moving through the air shower, particle and dust are removed. The air velocity of 15-20m/s ensures the efficiency.
Features: It's installed in the entrance of clean room and nonclean room to remove dust on the surface of goods and personnal. These series have features as followings:
1. Photoelectric sensor, automatic blow;
2. Electronically interlocked with double stainless door;
3. Stainless steel nozzles.
Model,dimensions
¶meters
Target |
1 person with one side blowing |
1 person with two sides blowing |
2 persons with two sides blowing |
3 persons with two sides blowing |
4 persons with two sides blowing |
Air Shower Passage |
|
Person/persons per cycle |
1 |
1 |
2 |
3 |
4 |
|
|
Air shower time |
0-99S Adjustable |
|
Nozzles |
6 (one side) |
12 (two sides) |
24(two sides) |
36 (two sides) |
48(two sides) |
60 (two
sides) |
|
Nozzle Diameter |
φ38mm |
|
Spurt wind speed |
15-20m/s |
|
Filter efficiency |
≥99.99% @ 0.5 micron |
Internal work area dimensions
W×H×D (mm) |
800×1930×860 |
800×1930×860 |
800×1930×1860 |
800×1930×2360 |
800×1930×2860 |
800×1890×4860 |
|
External dimensions(mm) |
1240×2050×1000 |
1240×2050×1000 |
1240×2050×2000 |
1240×2050×2500 |
1240×2050×3000 |
1600×2050×5000 |
|
Power |
3Phase 380V 50/60Hz, 1 phase 220V 50/60Hz |
|
Max. power(w) |
700 |
1400 |
1400 |
1400 |
2800 |
5600 |
|
Weight(kg) |
Appro.250 |
Appro.300 |
Appro.350 |
Appro.500 |
Appro.600 |
|
|
HEPA filters' dimensions |
610×610×120
One piece |
610×610×120
Two pieces |
800×610×120
Two pieces |
915×610×120
Two pieces |
610×610×120
Four pieces |
610×610×120
|
Dongguan Zhuowei Purification Technology Co., Ltd. is a high-tech enterprise which specializes in design, manufacture, sale, installation and inspection of air filters and purification equipments. We have been increasingly gathering experience of air filter industry since the foundation in 2002, and adopted advanced technology, machineries and materials to produce primary, medium and HEPA air filters and purification equipments. At present, we are enjoying a high reputation among air purification field.
With the progressive development of our company, we have had our own brand and more than fifty kinds of purification products put into mass production. In addition, we have been sanctioned by ISO9001 and IS014001. Our tenet is "quality first, credit first, reasonable price and good service". Zhuowei has won over the recognition of customers due to its high quality and excellent after-sale service.
Zhuowei: To stand steady above all others; To establish the great work with great prestige. We are heading forward the world with innovation of every staff.
