Esp 50PA 60Hz Duct Type Air Conditioner
| Price: |
US $ 200-800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CTA-xxHN |
| Markets: |
North America,South America,Southeast Asia,Mid East |
| Type: |
Central Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
CE |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Capacity: |
9000BTU-18000BTU |
Product Description

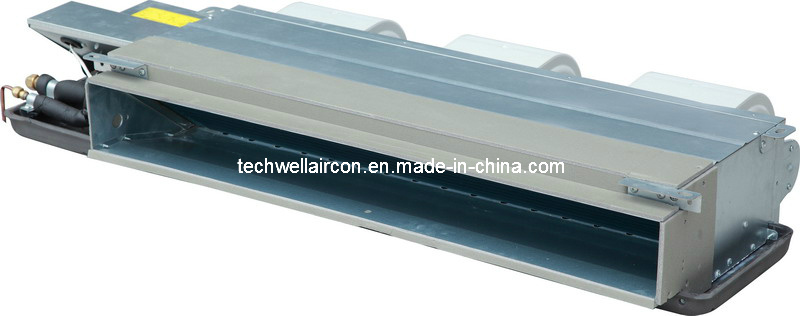

Duct type air conditioner Ultra thin boday, thickness 180mm
Static Pressure: 50PA
Capacity: 9000BTU-18000BTU
Gas type: R22
Power supply: 220V/60Hz
Specification of Duct type air conditioners| Indoor unit | CTA-12HN | CTA-18HN |
| Power supply | V/Ph/Hz | 208 ~230/1/60 | 208 ~230/1/60 |
| Capacity |
| Cooling | Capacity | Btu/h | 12000 | 18000 |
| RT | 1 | 1.5 |
| Heating | Capacity | Btu/h | 13000 | 20000 |
| RT | 1 | 1.5 |
| Physical data |
| Air flow volume (Hi/Med/Low) | CFM | 300/250/200 | 420/350/290 |
| External Static Pressure (Hi) | Pa | 20 | 20 |
| Noise level (Hi/Med/Low) | dB(A) | 46/40/35 | 42/30/26 |
| Net dimension (W×D×H) | mm | 926×510×181 | 1204×510×181 |
| Packing dimension (W×D×H) | mm | 1055×605×250 | 1330×605×250 |
| Net weight | kg | 18 | 21 |
| Gross weight | kg | 21 | 25 |
| Applicable area | m 2 | 15~25 | 20~35 |
| Loading Qty(20'/40'/40'HQ) | pcs | 180/370/420 | 130/290/340 |
| Piping data |
| Piping size | Liquid | in | 1/4" | 1/4" |
| Gas | in | 1/2" | 1/2" |
| Drainage | in | 1" | 1" |
