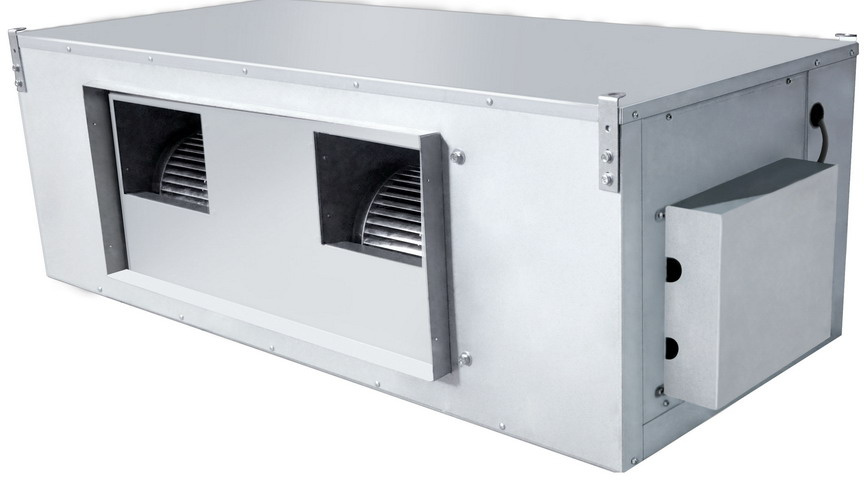

Esp 120PA R22 Duct Type Air Conditioner
| Price: |
US $ 800-1100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CTH-xxH |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: |
Central Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
CE |
| Capacity: |
48000-60000 BTU |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description
Duct type air conditioner Static Pressure: 120PA
Capacity: 48000BTU-60000BTU
Gas type: R22
Power supply: 220V/50Hz
Specification| Model | CTH-48H | CTH-60H |
| Power supply | V-Ph-Hz | 220-240V/1Ph/54Hz | 220-240V/1Ph/55Hz |
| Cooling | Capacity | Btu/h | 48000 | 60000 |
| Input | W | 14000 | 16000 |
| Rated current | A | 5833 | 6452 |
| EER | W/W | 2.4 | 2.48 |
| Heating | Capacity | Btu/h | 52000 | 60000 |
| Input | W | 15200 | 16000 |
| Rated current | A | 5630 | 6300 |
| COP | W/W | 2.7 | 2.54 |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 2300/2000/1700 | 2300/2000/1700 |
| Static Pressure | Pa | 120 | 120 |
| Indoor noise level(Hi/Mi/Lo) | dB(A) |
|
|
| Indoor unit | Dimension (W*H*D) | mm | 1177×625×363 | 1177×625×363 |
| Packing (W*H*D) | mm | 1315×635×475 | 1315×635×475 |
| Net/Gross weight | Kg | 65/70 | 65/70 |
| Refrigerant type |
| R22 | R22 |
| Refrigerant piping | Liquid side/ Gas side | mm | Φ9.52/Φ19.05 | Φ9.52/Φ19.05 |
| Connection wiring | Power wiring | mm2 | 5×2.5/3×1.0 | 5×2.5/3×1.0 |
| Signal wiring | mm2 | 5×0.75 | 5×0.75 |
| Controller |
| Wired controller | Wired controller |
| Operation temp | °C | 16 ~ 32 | 16 ~ 32 |
| Ambient temp | °C | -7 ~43 | -7 ~ 43 |
| Application area | m2 | 55~95 | 60~105 |
| Stuffing Quantity(20'/40'/40'HQ) | set | 68/140/170 | 68/140/170 |
