| Prod Model: |
ReBa |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coating Of Panel: |
Black Chomre |
| Thickness Of Panel: |
10cm |
| Absorption Coefficient: |
>95% |
| Conversion Factor: |
78 |
| Material Of Inner Tank: |
SUS304 Stainless Steel |
| Thickness Of Inner Tank: |
1.2mm |
| Insulation: |
60mm Polyurethane |
| Hail Resistance: |
55mm |
| Max. Capacity: |
100-200L |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Flat-plate |
| Certification: |
CCC |
Product Description

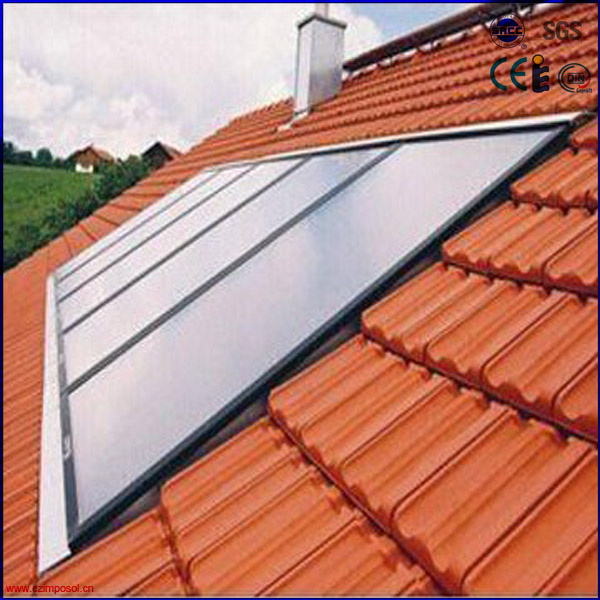

Energy star solar water heater
1. Simple Installation, No Maintenance, Effective operation
2. Easy Retrofitting To Existing systems
3. Suitable for single and multiple solar heating Application systems,
4. Preferred option for extremely cold areas and questionable water quality.
5. Incoming potable water is routed to the solar storage tank
6. Porcelain Enemal or SUS316 Stainless Stee Storage Tank With Electrical or gas Back Up
7. Double-walled Copper Coil heat exchangers in storage tank prevent contamination of household water.
Certificate: SRCC Solar Keymark CE ISO9001
flat
plate
solar
collector | quantity
dimensions
light area
coating
header
insulation | 1
1,030*2,030mm
1*2.00
selective absorbing
Cu 22 mm
Glass wool | 1
1,030*2,030mm
1*2.00
selective absorbing
Cu 22 mm
Glass wool | 1/2
1,030*2,030mm
1/2*2.00
selective absorbing
Cu 22 mm
Glass wool | 2/3
1,030*2,030mm
2/3*2.00
selective absorbing
Cu 22 mm
Glass wool |
water
tank | capacity
diameter
operating pressure
insulating layer
insulation thickness
connections
inner material
outer material | 100L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS316L
color steel/SUS | 150L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS317L
color steel/SUS | 200L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS318L
color steel/SUS | 300L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS319L
color steel/SUS |
| support | material
Anti-corrosin
use | hot Galvanized steel
Powder coated
Flat and slope roof installation |
connection
pipe | Material
Diameter
insulating material
insulation thickness | flexble stainless steel pipe
DN20-3/4″
elastomer rubber with protective PE film
20mm/13mm |
Imposol New Energy Co., Ltd., locates in Changzhou City, Jiangsu Province, Changzhou, a prefecture-level city in Jiangsu province, is located on the southern bank of the Yangtze River near the river mouth. Our company is a professional solar energy company in China which includes research, manufacture and marketing. In recent years, our products have been well accepted by the European market, Australia, Africa and the Asian market because of its high performance and reasonable price. We pay much attention to products' Quality and company' S credit.
As an OEM factory in China, it specializes in manufacturing solar water heaters and vacuum tubes. It has a workshop covering 6000 square meters with a capacity of 100 thousand solar water heaters and 1 million vacuum tubes every year. These products have enjoyed great popularity among many countries for many years because of their high performance and reasonable price. We have also designed some wonderful solar water projects which use solar collectors with metal vacuum tubes for hospitals, schools, factories and families. Customers either at home or abroad highly praise our projects for their high efficiency and excellent energy-saving system.
As the shortage of energy and pressure of environment pollution appear, the importance of the solar energy is increasing day by day. Thus in order to benefit people, Imposol will do its utmost to provide various solar products with high quality and efficiency.
