| Prod Model: |
DVP |
| Vacuum Pressure: |
0.5mbar |
| Working Pressure: |
0.4MPa |
| Filter Precision: |
1 Micron |
| Vacuum Pump: |
Leybold |
| Voltage: |
Customerized |
| Folw Rate: |
10-300 L/ Min |
Product Description

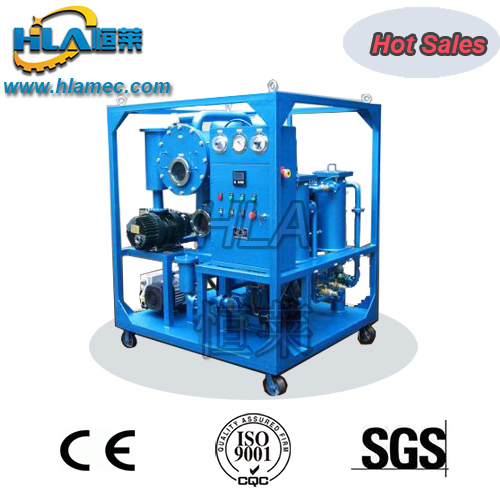

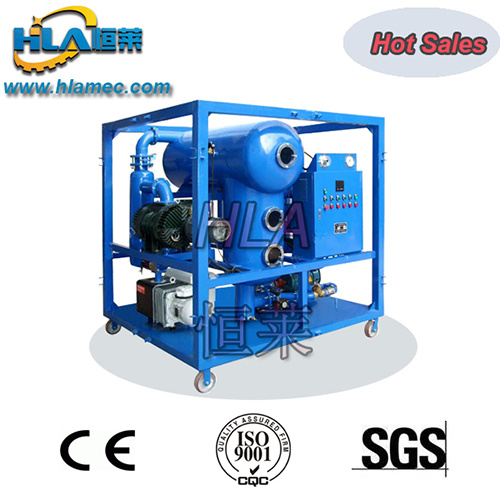

Electric Cable Insulating Oil Purifier
Application:We design and manufacture DVP high vacuum cable insulating oil purifier as high efficient online and offline oil purification systems, it works in the vacuum status and limited vacuum can be 0.05mbar, which can completely satisfy degasification and dehydration requirement. After purification by DVP cable insulating oil purifier, the water content can be less than 3ppm and gas content can be less than 0.1%. The filtering system of DVP cable insulating oil purifier is composed of three precise filters media, the 99% particles more than 1 micron can be removed.
Features:1.Best dehydrator and degasser to remove moisture and gas.
2. Vacuum oil filling to electric equipments
3. Precise filtering elements to remove mechanical solids from oil.
4. Best advanced temperature controller and liquid-level controller
5. Interlocked protective system make cable insulating oil purifier works well and safely.
Technical Parameters| Model | DVP030 | DVP050 | DVP080 | DVP100 | DVP125 | DVP150 | DVP200 | DVP250 | DVP300 |
| Capacity(L/min) | 30 | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Vacuum level | -0.08~-0.099 Mpa |
| Working pressure | ≤ 0.4 Mpa |
| Ultimate vacuum | ≤ 5 Pa |
| Temperature range | 20-80ºC |
| Filtering precision | ≤1 micron |
| Continuous work | ≥200 hr |
| No failure running | ≥5000 hr |
| Power supply | 380V, 50HZ, 3PH ( or Customized ) |
| Working noise | 65 dB |
| Heating power (kw) | 24 | 30 | 48 | 60 | 72 | 90 | 125 | 136 | 150 |
| Total power (kw) | 27 | 34 | 54 | 68 | 80 | 100 | 135 | 148 | 165 |
| Inlet/outlet(mm) | 32 | 32 | 44 | 44 | 48 | 50 | 55 | 60 | 65 |
| Weight (kg) | 600 | 700 | 800 | 900 | 1100 | 1200 | 1800 | 1950 | 2300 |
Dimension
(mm) | L | 1300 | 1350 | 1500 | 1800 | 1900 | 2000 | 2100 | 2150 | 2300 |
| W | 1000 | 1000 | 1100 | 1150 | 1200 | 1250 | 1300 | 1350 | 1400 |
| H | 1500 | 1500 | 1600 | 2000 | 2100 | 2150 | 2200 | 2250 | 2300 |
Available Parts for customer option1.Fully closed-type for protecting oil purifier machine (weather proof, vacuum proof, Waterproof, dustproof etc.)
2.Mobile trailer with enclosed type can move long distance working in field.
3.Choosing different vacuum pump, oil pump and electric parts(such as SCHNEIDER, SIEMENS, LEYBOLD,ABB etc.)
4.PLC controller for operation fully-automatically and explosion proof materials
5.On-line Moisture detector, transformer oil dielectric strength tester/BDV tester, flow meter, viscosity tester, acidity tester tec.
