| Prod Model: |
Q1+Q SUB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
2-Way, Dual 10inch Line Array System |
| Frequency Range: |
60Hz -- 20kHz |
| Maximum Peak Output: |
139db |
| Noise: |
<102dB |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
RoHS |
| THD: |
<0.03% |
Product Description

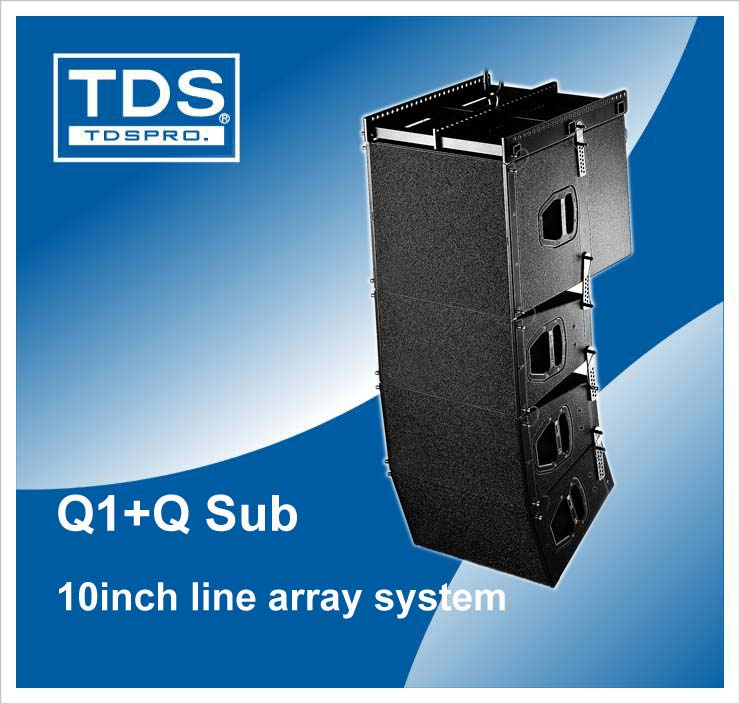

Dual 10inch Two-way Loudspeaker Q1+Q SUB For Line Array System
Q1 is a dual 10inch two-way line array system. This system adopt neodymium
magent compression driver with 75mm voice coil which is durable and working high
efficiency. The Q1 delivery very clear vocal voice. 4 units Q1 working together with 1
unit Q sub to be a full sound system. This system suitable for small size live
performance, live speech and some high class conference room.
Features
1. All transducer with neodymium magnet.
2. Very compact cabinet convenient for mobile usage and fixed installation.
3. More choice for vertical coverage angle.
4. Fast installation rigging system.
5. 2 x NL4MP Neutrick Speakon Connectors.
Applications
1. Small size live performance
2. High class conference room
3. Theatre, multi-function hall, church.
TECHNICAL SPECIFICATION |
| Frequency Range(-10dB) | 60Hz -- 20kHz |
| Frequency Response(± 3dB) | 80Hz -- 18kHz |
| Horizontal Coverage Angle(-6dB) | 75° |
| Vertical Coverage Angle (-6dB) | 15° |
| System Input Power Rating | LF: 400W Continuous. 800W Peak |
| HF: 100W Continuous. 200W Peak |
| Maximum Peak Output | 139dB |
| Recommended Amplification | LF: 800W into 8 ohms |
| HF: 200W into 8 ohms |
PHYSICAL DATA
|
| DimeNsions (W x H x D) | 580 x 308 x 410mm |
| Weight(net) | 23 Kg |
| Connectors | 2 x NL4MP Neutrik Speakon Connectors |
| Cabinet Material | 18mm birch plywood
|
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.
From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
Meet right sound, Meet right OEM partner, Meet right us!
