| Prod Model: |
DSF |
| Working Pressure: |
0.4MPa |
| Filtering Precision: |
1 Micron |
| Cleaness: |
Nas 6 Grade |
| Acid Value: |
0.05 Mkoh/G |
| Voltage: |
Customerized |
| Folw Rate: |
10-300 L/Min |
Product Description

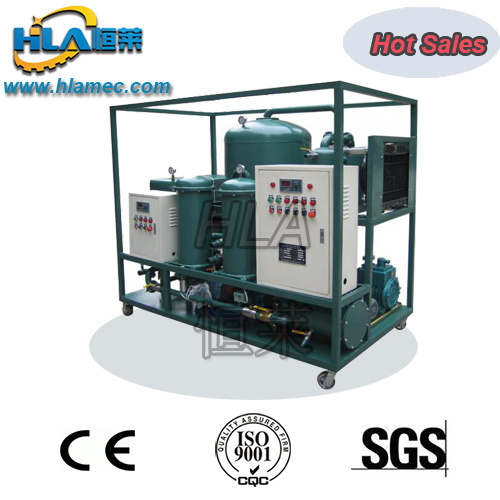

DSF Vegetable Cooking Oil Purifier
ApplicationDSF cooking oil purifier can greatly increase the usable life of your cooking oil by removing water, impurities, odor, acidity, color etc, instead of simply replacing the oil. This system will give you more use out of your restaurant cooking oil. The cooking oil purifier is safer for employees, it lasts longer, and it removes the unsightly waste that normally comes with frying oil. DSF cooking oil purifier can save you up to 50% on your oil purchase reduce your storage needs, reduce your oil disposal needs, increase the taste and quality of your foods and provide your customers healthier deep fried foods.
Features1.Advance vacuum dehydration system, pressure filters, oil water separator and high precision filters
2.Stainless steel coarse filters, anti-corrosion and anti-corrupt. large capacity of holding particles
3.Using the most advanced atomizing separation technology ensure water and gas vaporized sufficient time to complete removal of moisture and gas
4.Oil level control, pressure control, voltage protection, phase sequence protection etc.
5.Heating system adopts low-load design to ensure uniform heating oil
6.Advanced vacuum defoaming technology to avoid the oil ejecting and gushing during the process
Technical specification| Model | DSF010 | DSF020 | DSF030 | DSF050 | DSF100 | DSF150 | DSF200 | DSF300 |
| Capacity(L/min) | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
| Working vacuum | -0.06~-0.095 Mpa |
| Working pressure | ≤ 0.4 Mpa |
| Temperature range | 20-80ºC |
| Water content | ≤20 ppm |
| Gas content | ≤ 0.1% |
| Acid Value | ≤0.05 mKOH/g |
| Cleanness | NAS 6 grade |
| Filtering precision | ≤1 micron |
| Continuous work | 100 hr |
| No failure running | ≥5000 hr |
| Power supply | 380V, 50HZ, 3PH ( or Customized ) |
| Working noise | 65 dB |
| Heating power (kw) | 24 | 24 | 30 | 40 | 60 | 90 | 145 | 160 |
| Total power (kw) | 27 | 27 | 33.5 | 44 | 65 | 97 | 157 | 178 |
| Inlet/outlet(mm) | 25 | 25 | 32 | 32 | 48 | 50 | 58 | 65 |
| Weight (kg) | 300 | 350 | 400 | 500 | 800 | 1000 | 1200 | 1350 |
Dimension
(mm) | L | 1100 | 1230 | 1250 | 1500 | 1650 | 1750 | 1900 | 2000 |
| W | 800 | 810 | 850 | 950 | 1000 | 1200 | 1250 | 1350 |
| H | 1250 | 1260 | 1300 | 1400 | 1600 | 1750 | 1950 | 2100 |
Display of components:
