| Prod Model: |
S970 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Pasmo |
| Model: |
S970 |
| Hopper: |
9.5L*2 |
| Cylinder: |
2.5L*2 |
| Dimension: |
842*520*1444mm |
| N.W.: |
230kg |
| Voltage: |
220V 50Hz/60Hz |
| Air Pump: |
Available |
| Output: |
55L/Hr |
| Mix Low Function: |
for Both Hopper and Cylinder |
| Control: |
Electric |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Application: |
Household |
| Condensing Mode: |
Air-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Ice Shape: |
Star |
| Power: |
4000W |
Product Description

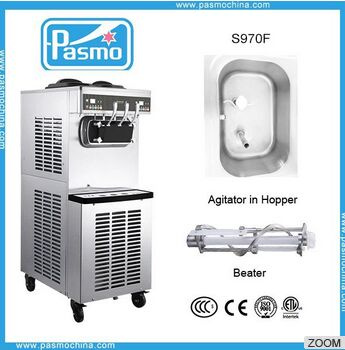

Specification of commercial soft ice cream machine
| S970 |
1) Compressor is Aspera from Italy
2) Expansion is Danfoss from Denmark
3) Digital display,simple control
4) Double control system (refrigeration and pre-cooling)
5) Stainless steel shell |
| MODEL | S970 |
| HOPPER | 9.5L*2 |
| CYLINDER | 2.5L*2 |
| OUTPUT | 55L/HR |
| FLAVOURS | 2+1 MIXED |
| VOLTAGE | 220V 50Hz/60Hz |
| BEATER MOTER | 550W*2 |
| POWER | 4000W |
| COOLING TYPE | AIR/WATER COOLING |
| MAIN COMPRESSOR | 4094BTU/HR,R404A |
| WEIGHT | N.W. | 230KG |
| G.W. | 260KG |
| DIMENSION | 842*520*1444MM |
| PACKING SIZE | 880*640*1620MM |
| CERTIFICATION | CE,ETL,LFGB,ISO9001 |
Descriptions of commercial soft ice cream machine
Offer all the popular soft serve variations from low or non-fat ice creams to custards,frozen yogurt and sorbet.
1) 2+1mixed flavor, floor standing model, full stainless steel panel
Air pump:provides required overrun which makes servings smoother,adjustable from 35% to 75%
2) Capacity: 55 L/HR
3) 2 compressors and 2 beater motor
4) Hopper agitator: Keep the consistence of ice cream liquid in the hopper,work well.
5) Pre-cooling system: For both hopper and cylinder.
6) Standby mode to save energy.
7) Mix low function: The mix low light turns"ON"to alert operator to add mix,Preventing cylinder over freezing.
8)Imported Core Accessories:Select and use world-famous ASPERA compressor,DANFOSS expansion valve etc,effectively ensure the service life of the machines
9) Converter: Let the machine operate smoothly
10) Low noise
Company Information
We are the Sino-Aus-Thai Joint Venture which has a technical team with independent R&D capability, and we will jointly establish the R&D team with Assumption University of Thailand.
Packing and Delivery for commercial soft ice cream machine
Plywood case;by sea or air
After-sales Services
1) Guarantee time:12 month
2) Extra spare parts are attached with order for stock accessories
3) Specialized after-sales team offer technology support
