| Prod Model: |
S230 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
S230 |
| Cylinder: |
1.5L*2 |
| Hopper: |
9.5L*2 |
| Output: |
30-35L/Hr |
| Beater: |
Stainless Steel 304 |
| Refrigeration: |
Air Cool |
| Main Refrigerant: |
Main Refrigerant |
| Pre-Cooling Refrigerant: |
R134A |
| Certification: |
ETL/ISO9001/LFGB/CE |
| Warranty: |
1 Year |
| Application: |
Ice Cream |
| Customized: |
Customized |
Product Description

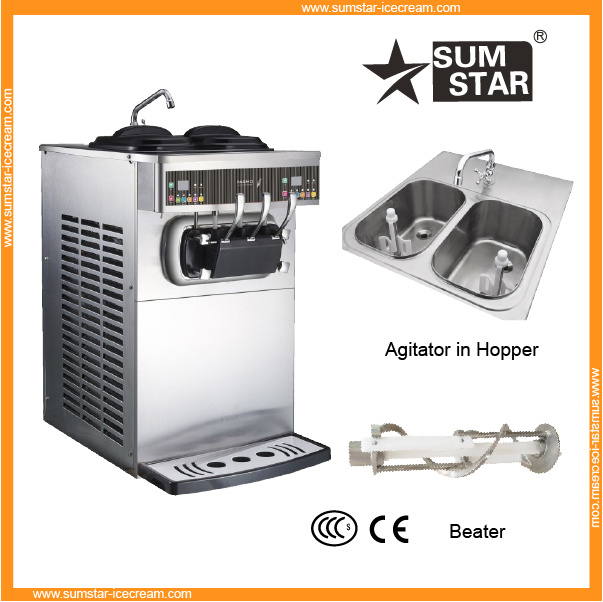

Sumstar S230 Soft Ice Cream Maker/Frozen yogurt machine
The Newest Machine of Sumstar! ! ! !
Specifications of Sumstar S230 ice cream making machine:
1, CE, ETL, LFGB, ISO9001 certification
2, Both hopper and cylinder have Pre-cooling system
3, Mix-low alarm function
4, Standby function
5, Counter function
6, spring handle
7, Air cool
Brief description of Sumstar S230 ice cream making machine:
Cylinder: 1.5L*2
Mix Hopper: 9.5L*2
Capacity: 30-3L/H
Refrigeration system: 3750BTU/hr, R404A
Pre-cooling system: 210BTU/hr, R134A
Power Type: 220/380v//50Hz/60Hz
Beater Motor: 550W*2
Installed Power: 3.2KW
Agitator Power: 15W
Fan Power: 130W
N. W: 150KG
G. W: 170KG
Product Size: 520*842*870mm
Carton Size: 640*870*1080mm
Detailed Description of Sumstar S230 ice cream making machine:
SUMSTAR series soft serve Ice-cream machines, which are based on the Australian advanced technology and newly developed by Sumstar, are suitable for all kinds of Ice-cream powder and milk, can be applied to the Ice-cream shops, bars, bakeries, restaurants and other premises.
1. Beater - Food grade stainless steel beater
2. Silence- Mute function, suitable for all kinds of high-end places
3. Dispense space- 10CM dispense space, which can meet the needs of big cups or decoration of cakes
4. Control system- Upscale blue screen, easy to see the running status.
5. Agitator- The agitator in the hopper can keep the consistence of the ice cream liquid, work well with pre-cooling.
6. High expansion rate- with high-precision configuration, even without air pump, the overrun could be 40%.
7. Standby function- Standby function for both hopper and cylinder, ensure the safty and hygiene of the Ice-cream liquid.
8. Continuous discharging ability- Ensure continuous discharge even during the peak hours.
9. Mix low alarm function- Mix low alarm function for both hopper and cylinder, effectively lower the rate of frozen cylinder.
10. Imported core accessories-Select and use world-famous ASPERA compressor, DANFOSS expansion valve etc, effectively ensure the service life of the machines.
24 hours after sale service
SUMSTAR
As one of the ice cream machine and slush machine leader in china, Sumstar works on better quality of ice cream machine and slush machine, to perfect the products and simplify use methods, translates into the concept of specialization and starting up a single line of devices.
Service
1, Guarantee Time: 12 month
2, Extra spare parts are attached with order for stock accessories
3, Specialized after-sales team offer technology support
| Cylinder | 1.5L*2 |
| Hopper | 9.5L*2 |
| Machine Dimension(mm) | 520*840*870 |
| Packing Dimension(mm) | 640*870*1080 |
| Refrigeration system | 3750BTU/hr,R404A |
| Pre-cooling system | 210BTU/hr,R134a |
| Power | 3.2kw |
| Beater motor | 0.55kw*2 |
| Power specification | 220V/50hz,60hz |
| Capacity | 30L-35L/hr |
| N.W. | 150kg |
| G.W. | 170kg
|
