| Prod Model: |
S520 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
S520 |
| Hopper: |
12L*2 |
| Cylinder: |
1.8L*2 |
| Output: |
50L/H |
| Beater: |
Stainless Steel 304 |
| Refrigeration: |
Air Cool |
| Main Refrigerant: |
R404A |
| Pre-Cooling Refrigerant: |
R134A |
| Certification: |
CE/ETL/LFGB/ISO9001 |
| Warranty: |
1 Year |
| Application: |
Commercial |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Power: |
>400W |
| Structure: |
Integral Type |
| Condensing Mode: |
Air-Cooled |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Filtering Device: |
With Filtering Device |
| Ice Shape: |
Soft Ice Cream |
Product Description
Specifications
1, double control system
2, spring handle
3, 12L*2 hoppers
4, pre-cooling system
5, mix-low alarm function
6. Lowest noise
Brief description of Sumstar soft ice cream machine:
1.8L freezing cylinder, optimizing on capacity, extraordinary continuous discharge ability, pre-cooling for hopper and cylinder at the same time, Counter and standby functions let you experience the glamour of the new generation Ice-cream machines. Both oft ice cream and frozen yogurt can be produced. Your best asset to launch your own soft ice cream & frozen yogurt business.
Detail Description of Sumstar frozen yogurt machine:

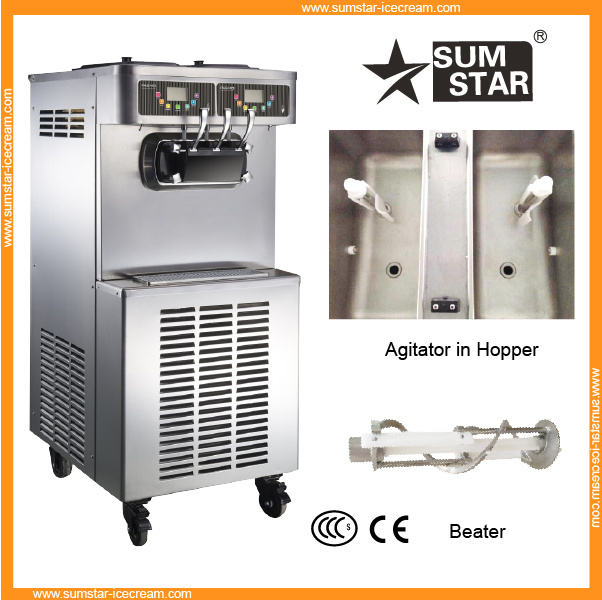

1. Beater - Food grade stainless steel beater
2. Imported core accessories-Select and use world-famous ASPERA compressor,
DANFOSS expansion valve etc, effectively ensure the service life of the machines
3. Standby function- Standby function for both hopper and cylinder, ensure the safty and hygiene of the Ice-cream liquid.
4. Mix low alarm function- Mix low alarm function for both hopper and cylinder, effectively lower the rate of frozen cylinder
5. Agitator(option)- The agitator in the hopper can keep the consistence of the ice cream liquid, work well with pre-cooling.
6. Double control system- Can be turned off separately, this function is extremely useful during the period of slack sale
7. Spring handle- Automatic reset handles, effectively prevent outflow of the Ice cream during suspending.
8. Continuous discharging ability- Ensure continuous discharge even during the peak hours.
24 hours after sale service
SUMSTAR
As one of the ice cream machine and slush machine leader in china, Sumstar works on better quality of ice cream machine and slush machine, to perfect the products and simplify use methods, translates into the concept of specialization and starting up a single line of devices.
Service
1, Guarantee Time: 12 month
2, Extra spare parts are attached with order for stock accessories
3, Specialized after-sales team offer technology support
Certificate
|
Cylinder |
1.8L*2 |
|
Hopper |
12.5L*2 |
|
Machine Dimension(mm) |
640*750*1540 |
|
Packing Dimension(mm) |
760*890*1630 |
|
Refrigeration system |
3500BTU/hr*2,R404A |
|
Pre-cooling system |
416BTU/hr,R134a |
|
Power |
3.5kw |
|
Beater motor |
0.75kw*2 |
|
Power specification |
220V/50hz,60hz |
|
Capacity |
50L/hr |
|
N.W. |
200kg |
|
G.W. |
250kg |
Taizhou Pasmo Food Technology Co., Ltd. Located in Jiangkou Food industrial area, Huangyan, Taizhou, Zhejiang, China. It has more than 100 workers, and covers 50, 000 square meter research and development base.
Pasmo is committed to the research and development of various refrigeration equipments. Now the main products are soft ice cream machine, slush machine and drinking machine, popular with the customers all over the world.
We focus on quality, environmental and security, own reliable technique and team. Now we have mould workshop, injection workshop, sheet metal workshop, metal surface treatment workshop, testing workshop and assemble workshop, with independent research and development capabilities. For each component, we selected after lots of experiment and testing. Our products contains from high level type and standard type.
