| Prod Model: |
JPS-SA1/400L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Separate Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CE CCC ISO SGS |
Product Description
Product Description

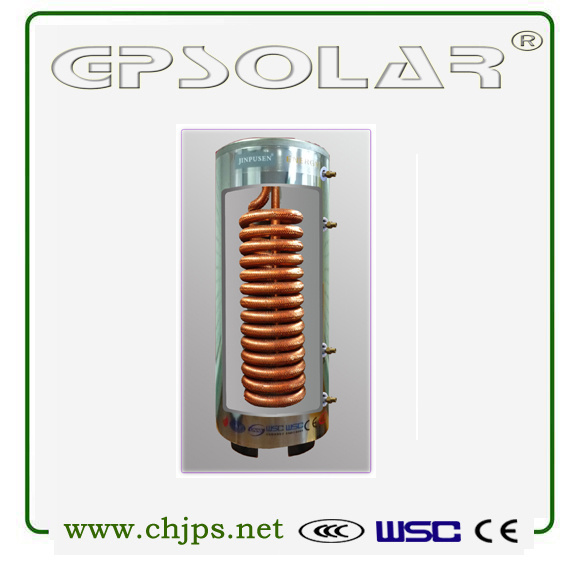

(1)Solar water heater insulated pressure water tank is used for split solar water heater system. As the tank can be installed anywhere near the house, the tank is connected to the solar heat collectors through pipelines, this makes the installation very convenient.
(2)inner tank antiseptic treatment technoiogy, built-in positive pole magnesium stick device, longer sservice life of water purifying inner tank, higher decay resistance than that of an enamel inner tannk.
*Materials:
A) Inner tank: SUS304/2B
B) Outer tank: Galvanized steel sheet
*Thickness
A)Inner tank: 1.5mm
B)Outer tank: 0.5mm
* Insulation layer
A) Material: Dow polyurethane foam (Imported from US)
B) Thickness: 50mm (for maximum 72 hours of conservation)
Solar water heater tank working principle:
1. The collector absorbs solar energy and transmits it to the water tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump
Automatically
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value, the
Circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to
Work automatically
