| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Image Sensor: |
CCD |
| Type: |
Digital |
Product Description
Model No.
FV-DM261W SN420
FV-DM261W SP420
Description:

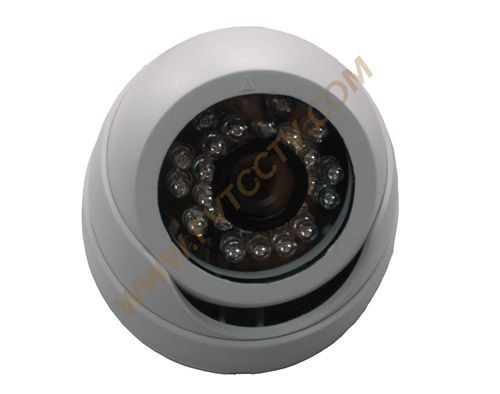

Plastic IR dome camera for indoor(White Color)
Image Sensor
1/3" Sony Super HAD CCD
1/4" SHARP Color CCD
Effective Pixels
PAL: 500(H)x582(V) / NTSC: 510(H)x492(V)
Resolution 420 TV Line
TV System PAL / NTSC
Lens 3.6mm fixed lens, 6.0mm optional
IR LED 5 X 24 PCS
Night Vision Up to 25-35M
IR LED Control Automatic, CDS Sensor
Min. Illumination 0 Lux ( LED on )
IR Wave 850nm
Video Output BNC / 1.0Vp-p, 75Ω
S/N Ratio >48dB ( AGC on )
Gamma Correction 0.45
Electronic Shutter PAL 1/50-1/100, 000Sec, NTSC 1/60-1/100, 000Sec
BLC Auto
AGC Auto
White Balance Auto
Housing Color White and Black optional
Sync System Internal
Operating Temp -10 - 50
Operating Humidity ≤ 95 %
Extended Options
1/4" Sony Super HAD CCD, 420TV Line
1/3" Sony Super HAD CCD, 480TV Line
1/3" Sony Super HAD CCD, 520TV Line
1/3" SHARP Color CCD, 420TV Line
High-tech corporation, which is specialized in developing, manufacturing and marketing safety protection products. Since the foundation of 2003, First View Technology has aimed to be a top international security enterprise and provide prominent marketing service.
Implement the RUP management system. Run the TPS, TQC and TPM on production line. Has the ISO9001 and ISO14001 authentication. Company Products are accredited by RoHS, CE, FCC and CMA, and have been exported to more than 80 countries and regions.
Following the tenet "Technology first, Quality first", we keep absorbing advanced technology and elitist from beginning. We have developed and produced "First-View" serial safety protection products independently. For example, CCD, IP internet cameras, WDR high resolution cameras, hemisphere series, wireless, alarm, visual intercom line and standard alone DVR. Our products are sold well to the US, Europe, African, Middle East and so on. We have established long-term cooperated relationship with our clients. We owe all these to advanced technology and reliable quality.
Complying with the business principle "To be honest, and to be reliable", we satisfy our clients with more sophisticated products, more reasonable price, and more perfect service.
First View is the professional choice and your reliable partner.
We are looking forward to cooperating with you!
